Procedure
Step 1 Install the app on the reserved pad (see the commissioning guide) and connect
the pad to the network over the WiFi hotspot of the data center.
Step 2 Specify the user name and password for the app on the reserved pad and log in to
check that the app works properly.
Step 3 Remove the charging cable from the failed pad.
Step 4 Remove the failed pad from the support and install the reserved pad on the
support.
Step 5 Connect the charging cable to the reserved pad.
----End
6.3.12 Replacing a Cabinet Electronic Lock
Prerequisites
Material: electronic lock
Procedure
Step 1 Open the cabinet door, and disconnect the monitoring cable from the electronic
lock.
Step 2 Remove the electronic lock.

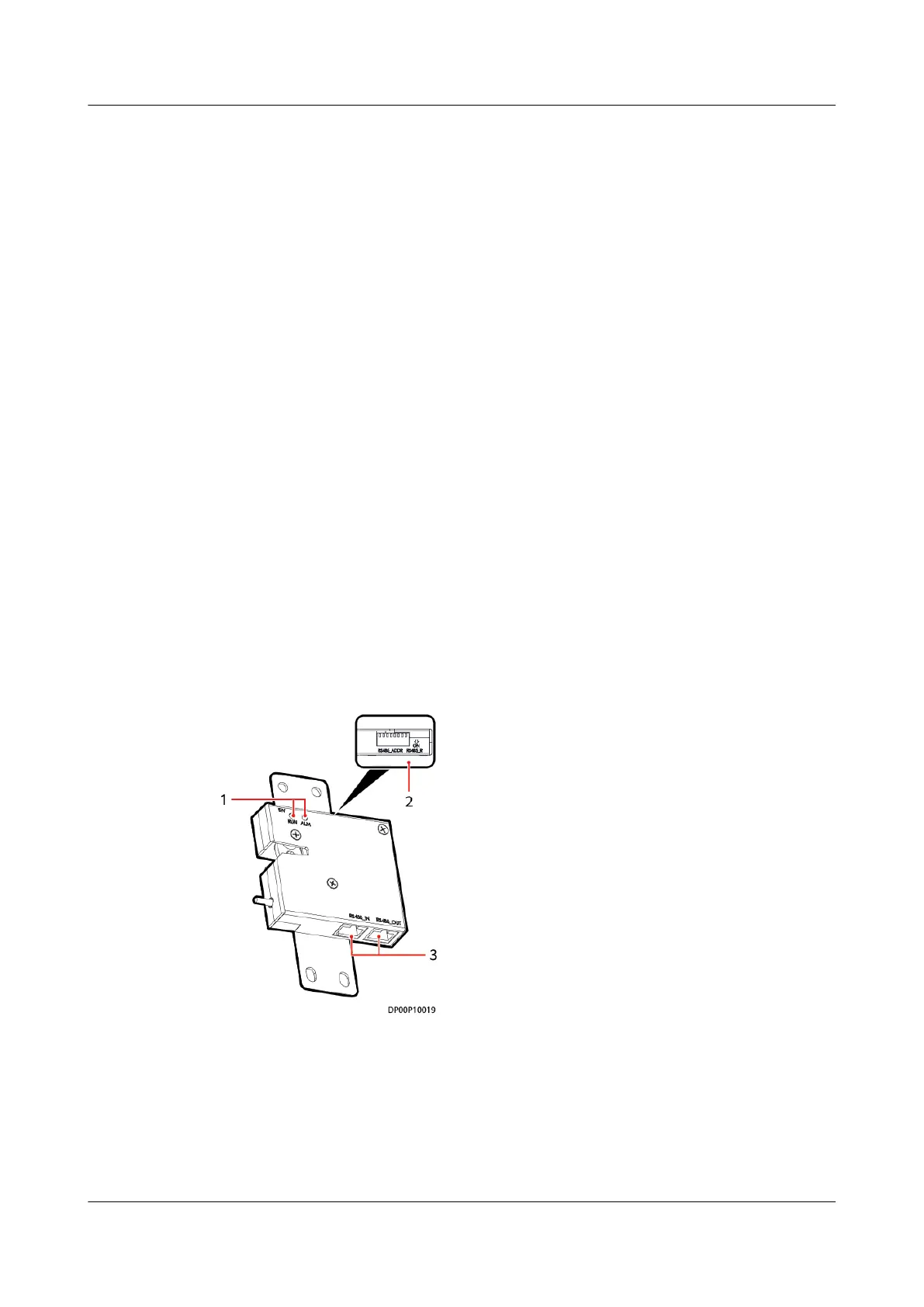

Figure 6-13 Cabinet electronic clasp lock
(1) LED indicator
(2) DIP switch (3) RJ45 power port
Step 3 Install a new electronic lock and connect the monitoring cable to the new lock.
Step 4 Log in to the ECC800-Pro WebUI, choose System Settings > Access Management,
set the access permission for the new electronic lock by referring to the access
permission setting for the damaged electronic lock. Then perform the Synchronize
to Device operation.
FusionModule2000-S Smart Modular Data Center
User Manual 6 Operation and Maintenance
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 311
