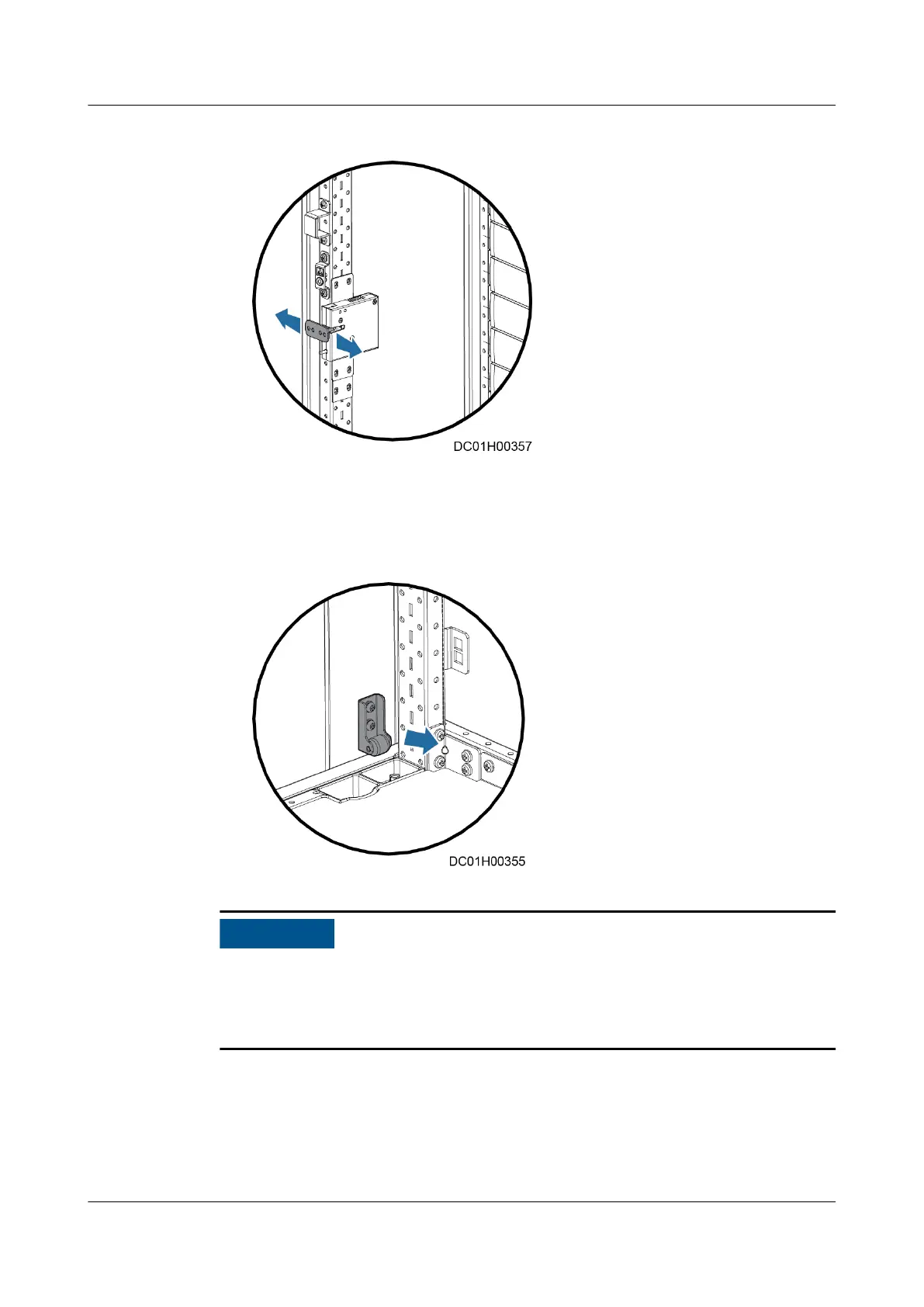

Figure 5-47 Adjusting the installation position
3. Check whether there is interference between the castors and the door sill at
the bottom of the cabinet. If they interfere with each other, remove the
fastener that secures the castors.
Figure 5-48 Removing the fastener
If the door cannot be opened or closed properly, check the following items:
● Whether cables are connected correctly.
● Whether the DIP switch setting is correct.
----End
5.3.12 Video Management
FusionModule2000-S Smart Modular Data Center
User Manual 5 Power-On Commissioning
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 207
