3.8.2 Installing an End Panel for a Cable Trough
Context
● Typically, end panels are installed only on cable troughs of cabinets at the two
ends of an aisle.
● A red end panel indicates that the cable trough is for power cables. A blue
end panel indicates that the cable tough is for signal cables.
● Generally, the power cable trough is close to the cabinet front door, and the
signal cable trough is away from the cabinet front door.
Preparations
Material: cable trough end panel
Procedure
Step 1 Hold the top of the end panel with both hands to keep it vertical. Press it from top
to bottom into the hooks at the end of the cable trough until the top of the end
panel aligns with the top of the cable trough.
During installation, the interconnecting lever is vertical.

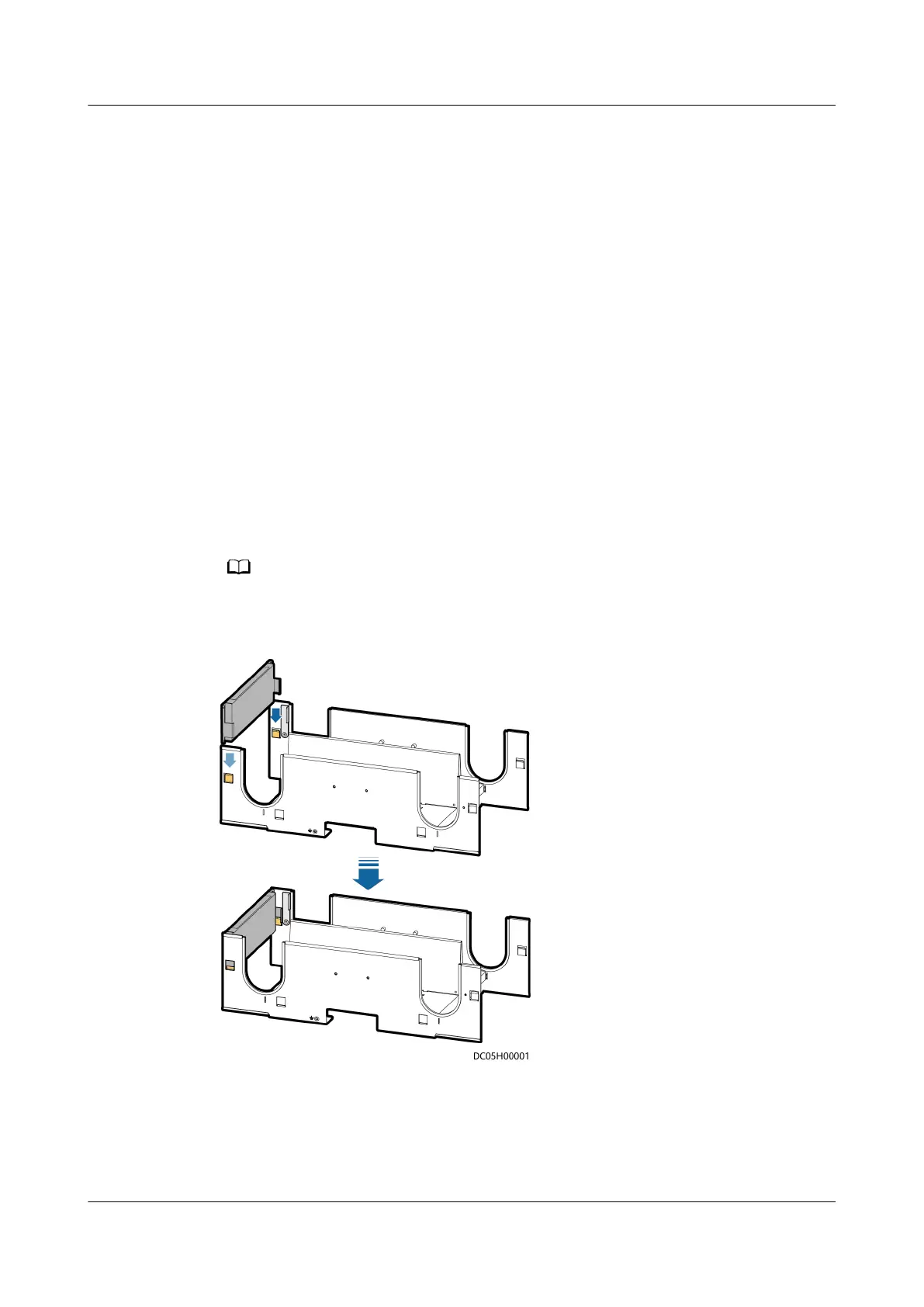

Figure 3-47 Pressing an end panel into the hooks
----End
