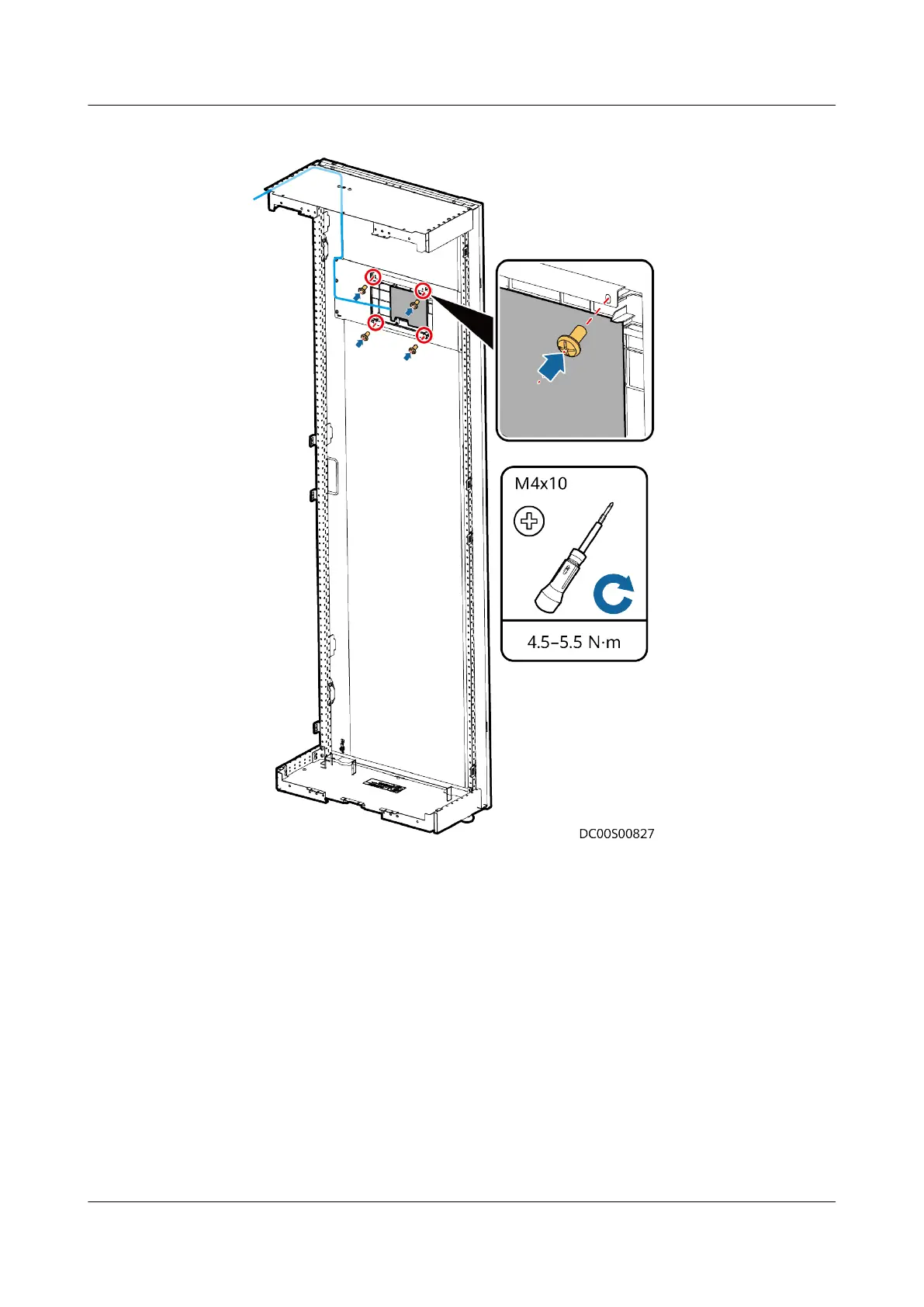

Figure 3-38 Securing an LCD
----End
3.7.2 Combining Aisle Doors
The aisle doors are combined in the same way as the cabinets. For details, see 3.4
Combining Cabinets.
3.8 Installing Cable Troughs and Cable Racks
3.8.1 Installing Cable Troughs
Context
● Installation principle: Install one electric cable trough and one ELV cable
trough on the top of each cabinet.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 69
