3.2 (Optional) Installing Bases

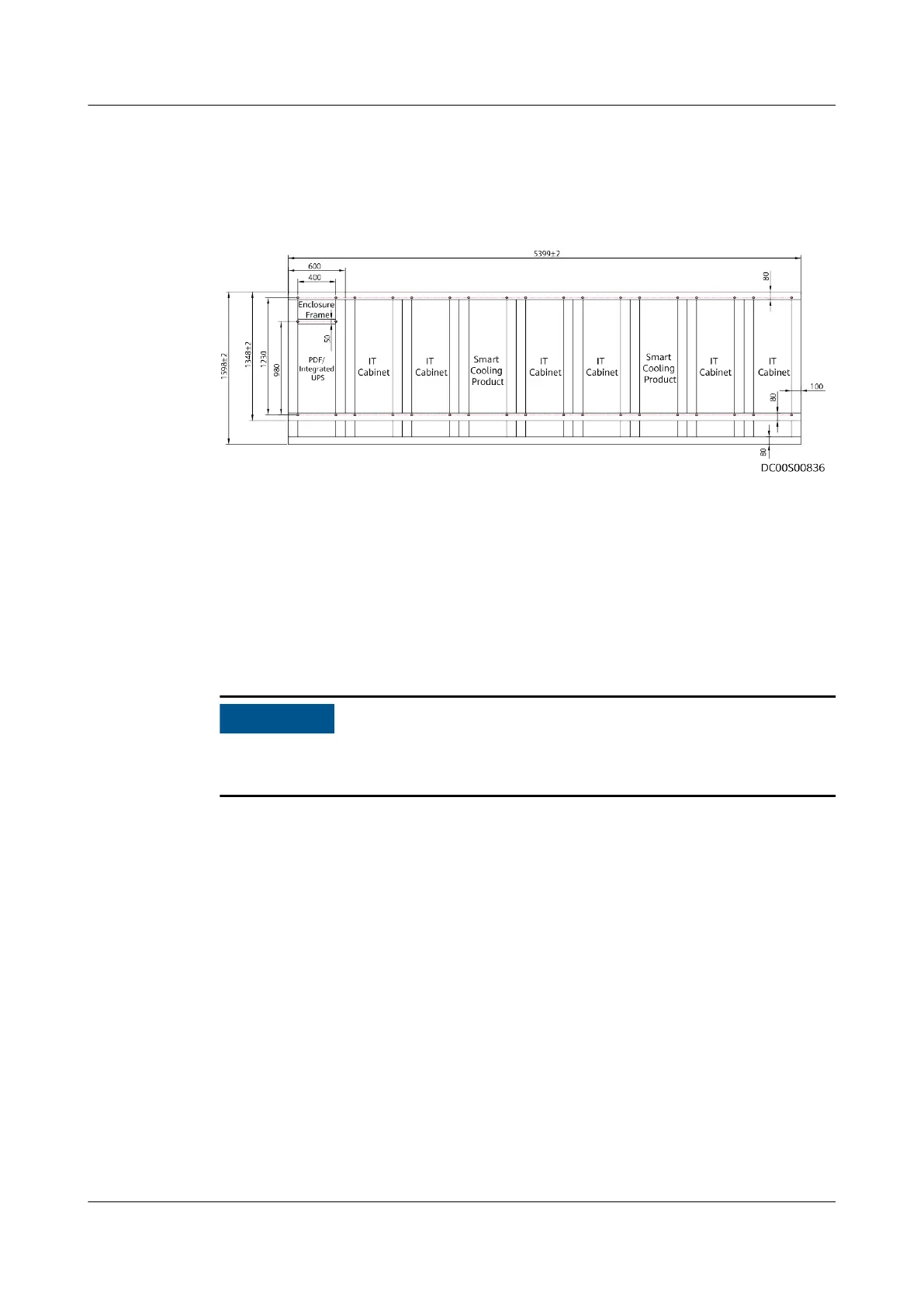

Figure 3-4 Base installation drawing for the nine-cabinet scenario (unit: mm)
3.2.1 Precautions for Installing Bases
To ensure that bases t cabinet connecting structures, congure bases with
dierent specications for dierent cabinets. For the detailed dimensions of bases,
see the installation diagrams and parameter manual.
● If there are bases, install the smart cooling products
rst.
● If there are no bases, install cabinets from the end cabinet in sequence.
If you do not use the bases provided, determine the bearing requirements for
bases according to the service plan.
● The bearing capacity of each base should be at least 2 tons.
● Assume that each row of cabinets is congured with N bases:
– If N is less than 5, you can install all the bases at a time. After
installation, check that the total length of each row of bases is the sum
of nominal widths of all bases (tolerance: –3 mm to 0 mm).
– If N is greater than or equal to 5, you are advised to install ve bases at a
time. After installation, check that the total length of the bases is the
sum of nominal widths of all bases (tolerance: –3 mm to 0 mm). After
installing
ve bases, check whether the total length of the ve bases and
the diagonal length
dierences meet the requirements.
If the length and
dierences meet the requirements, tighten the bolts
and continue to install next
ve bases. If the length and dierences do
not meet the requirements, adjust the bases to meet the requirements
before tightening the bolts to prevent bases secured in a parallelogram or
trapezoid shape.
● To ensure accurate locations, you are advised to determine base locations
using a laser locator before the installation.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 41
