Procedure
Step 1 Connect one end of the ground cable to the ground terminal on the device and
the other end to the ground point on the cabinet. A Phillips screwdriver and M4
screws are required.
The customer needs to prepare the ground cable.
Step 2 Connect one end of the network cable to any GE network port on the IVS and the
other end to the LAN switch.

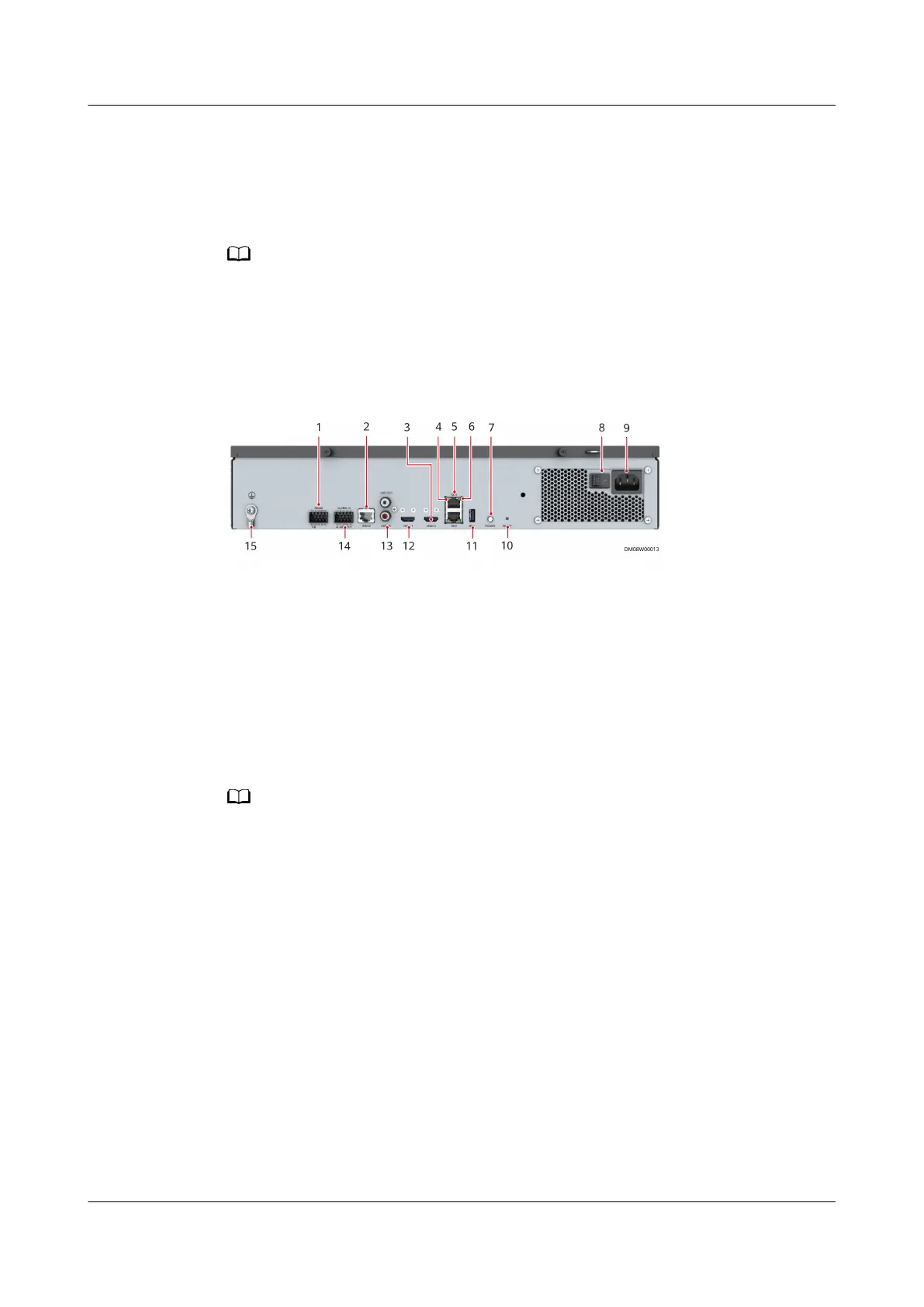

Figure 4-12 IVS rear panel
(1) RS485 port
(2) Serial port (3) HDMI 2.0 port (4) Network port
ACT indicator
(5) GE network
port
(6) Network port
LINK indicator
(7) Power button (8) Power switch (9) Power port (10) Reset button
(11) USB 3.0 port (12) HDMI 1.4
port
(13) Audio input/
output port
(14) Alarm input/
output port
(15) Ground
terminal
Step 3 Connect one end of the power cable to the input power port on the PSU and the
other end to the PDU2000 in the cabinet.
After connecting the power cable, turn on the power switch on the panel to start the
device.
----End
4.7 (Optional) Connecting rPDU Cables
Context
If the rPDU is not provided with industrial connectors, connect the rPDU cables
and lay out the cables on the cabinet top.
Preparations
Tools: Phillips screwdriver,
at-head screwdriver, diagonal pliers, protective gloves
Material: cable tie
FusionModule2000-S Smart Modular Data Center
User Manual 4 System Cabling
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 127
