The installation layout and space requirements for the smart cooling product PDB are for
reference only and can be adjusted based on the actual situation of the equipment room.
3.9.7 Installing a Smart Busbar
For details, see the documents delivered with the equipment, the documents
obtained by scanning the QR code, or
NMW Smart Busbar 2.0 User Manual
and
NMW Smart Busbar 2.1 User Manual
.
3.10 Installing Monitoring Devices
3.10.1 Installing a Smart ETH Gateway
Preparations
Tool: Phillips screwdriver
Materials: smart ETH gateway and accessories
Procedure
Step 1 Use two M4x10 screw assemblies to secure the guide rail for the smart ETH
gateway to the cable trough, as shown in Figure 3-52.

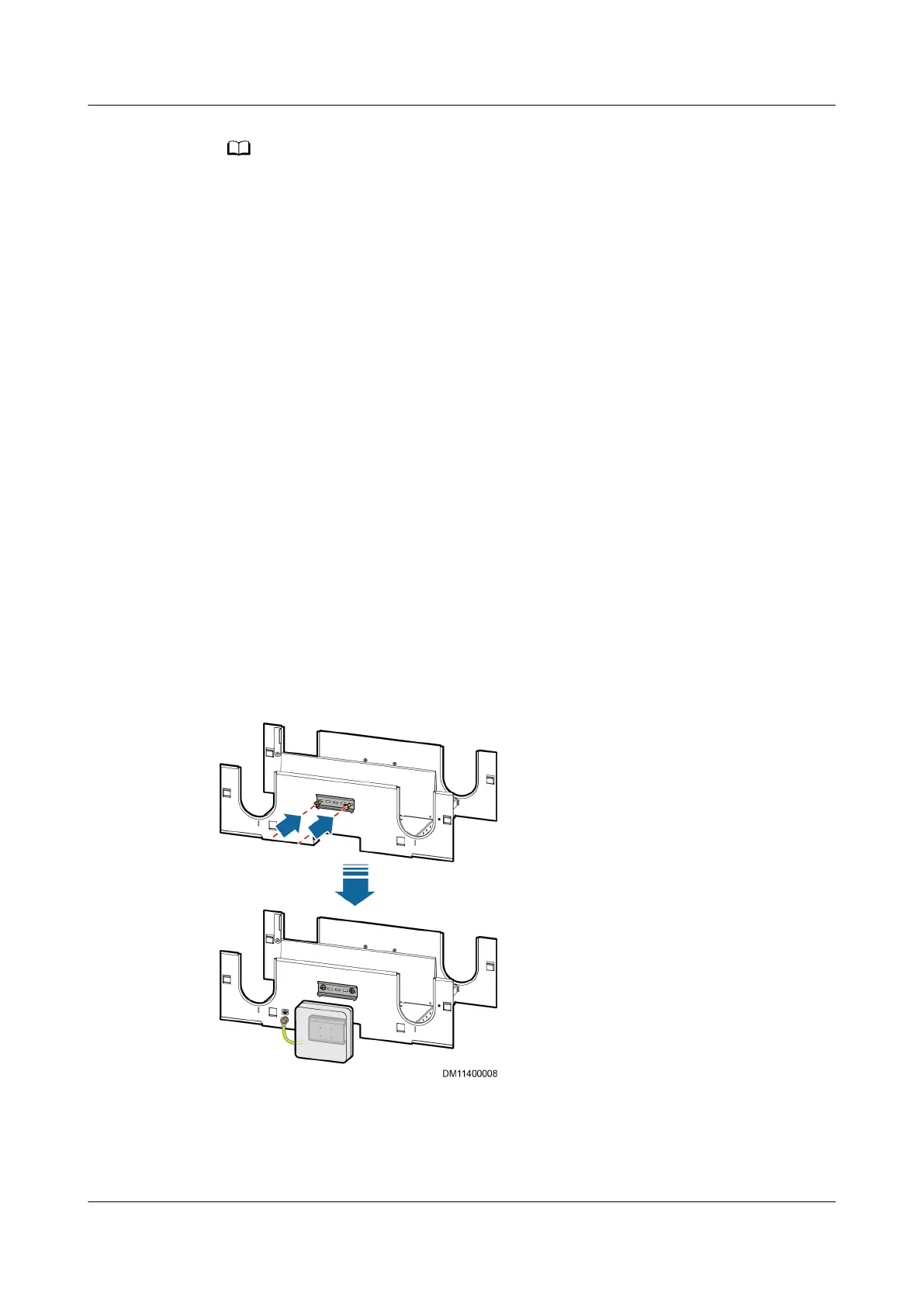

Figure 3-52 Installing a smart ETH gateway
Step 2 Connect one end of the ground cable available in the smart ETH gateway package
to the ground point at the lower part of the cable trough using one M4 screw, and
connect the other end to the ground point on the side of the smart ETH gateway,
as shown in Figure 3-52.
FusionModule2000-S Smart Modular Data Center
User Manual 3 Hardware Installation
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 81
