Procedure
Step 1 Connect the rPDU cables.
rPDU cable connections depend on the rPDU type and wiring port silk screen.

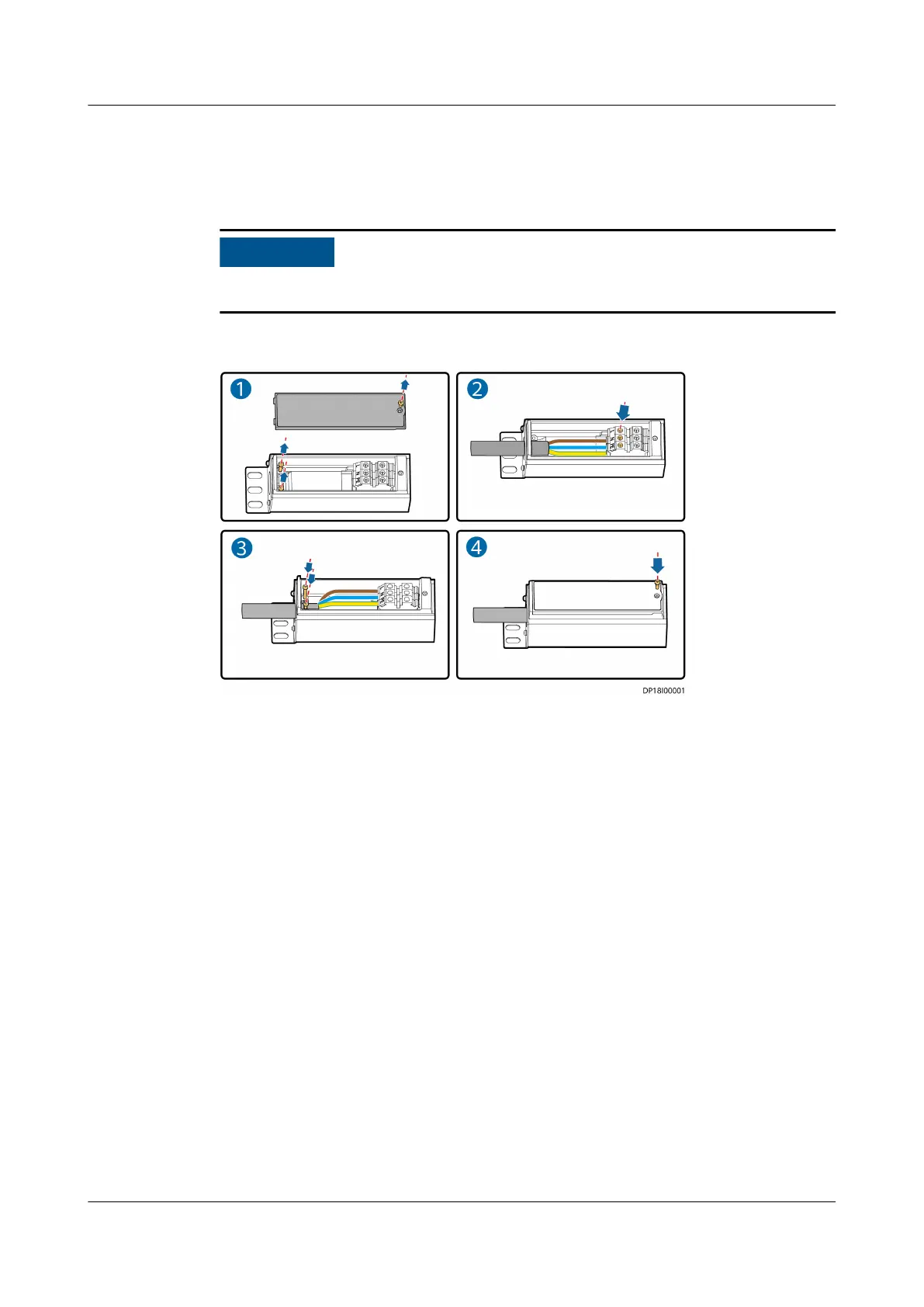

Figure 4-13 Connecting rPDU cables
Step 2 Route the rPDU cables through the cable hole in the attachment plate of the side
ear and connect the cables to the AC Input1 power port on the ECC800-Pro.
Step 3 Install the rPDU cables for other IT cabinets in the same way.
----End
Follow-up Procedure
Before connecting the power plug of a device to the rPDU, loosen the locking
device on the rPDU. After connecting the power plug, tighten the locking device.
4.8 (Optional) Cable Routes for a Smart Cooling
Product PDB
● Cables are routed in from the top and routed out from the top or bottom of
the smart cooling product PDB.
● The smart cooling product PDB uses three-phase, ve-wire input power
cables, including N, PE, L1, L2, and L3.
● The smart cooling product PDB uses three-phase, three-wire output power
cables, including L1, L2, and L3.
FusionModule2000-S Smart Modular Data Center
User Manual 4 System Cabling
Issue 07 (2022-09-30) Copyright © Huawei Technologies Co., Ltd. 128
