Basic copy operations
3
C300 3-43
Basic copy operations Chapter 3
Typing In separate X and Y zoom ratios (independent zoom settings)
By using the keypad, separate zoom ratios can be typed in directly for the
horizontal direction (between ×0.250 and × 4.000) and for the vertical direc-
tion (between ×0.250 and ×4.000).

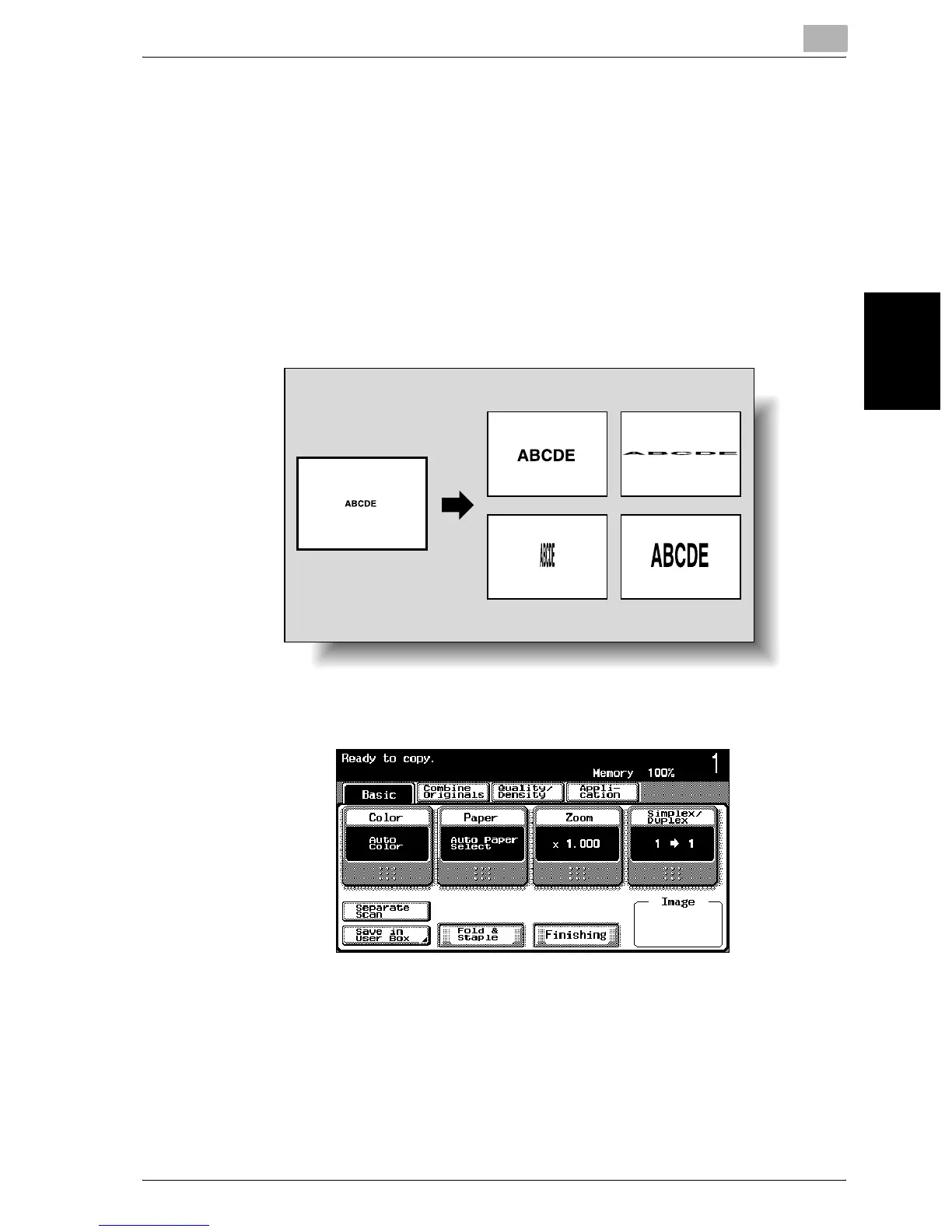

By combining different horizontal and vertical zoom ratios, the copy image
can be adjusted as shown in the following illustration.
0 If a value outside of the allowable range is specified, the message “Input
Error” appears. Type in a value within the allowable range. If the value
was incorrectly entered, press the [C] (clear) key to erase the value, and
then specify the correct value.
1 In the Basic screen, touch [Zoom].
The Zoom screen appears.
To Next Page
