SECTION 10 - ENGINE
10-64

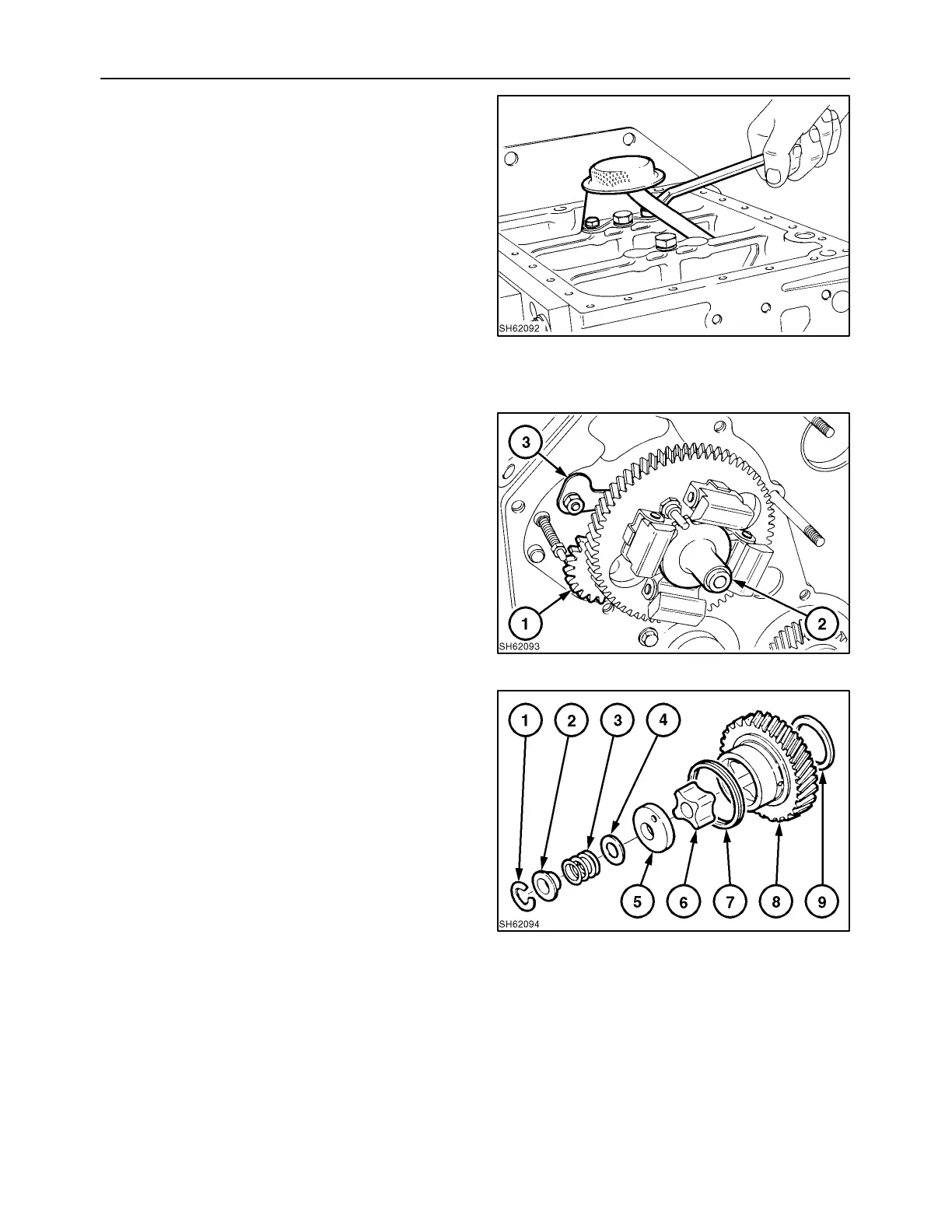

OIL INTAKE AND OIL STRAINER
Fix an O ring on the suction pipe and insert the pipe
into the cylinder block.
Fit the end of the suction pipe to the oil strainer and
fix the oil strainer.
Suction filter tightening torque: 6.5 - 9.5 ft. lbs. (8.8 -
12.9 N·m)
OIL SUMP
Tighten the bolts diagonally and evenly.
DIPSTICK AND TUBE
Install the dipstick and tube using two O rings.
99
FRONT PLATE
Camshaft Assembly, Tachometer, and Plate
1. Install the tachometer shaft.
2. Install the camshaft assembly. Avoid damaging
bearings.
3. Fix the tachometer shaft and camshaft with the
retaining plate.
Plate tightening torque: 6.5 - 9.5 ft. lbs. (8.8 - 12.9
N·m)
100
IDLER GEAR AND OIL PUMP ASSEMBLY (SEE
SECTION IV OIL PUMP)
Install the thrust washer on the idler gear shaft.
Assemble the vane, knock pin, and spring on the idler
gear.
1 Snap ring
2 Collar
3 Spring
4 Shim
5 Oil pump cover
6 Rotor
7 Spring
8 Idler gear
9 Thrust washer
101
