SECTION 00 - GENERAL INFORMATION
00-16
RAISING BOOM WITHOUT BATTERY
VOLTAGE (12 VOLTS)

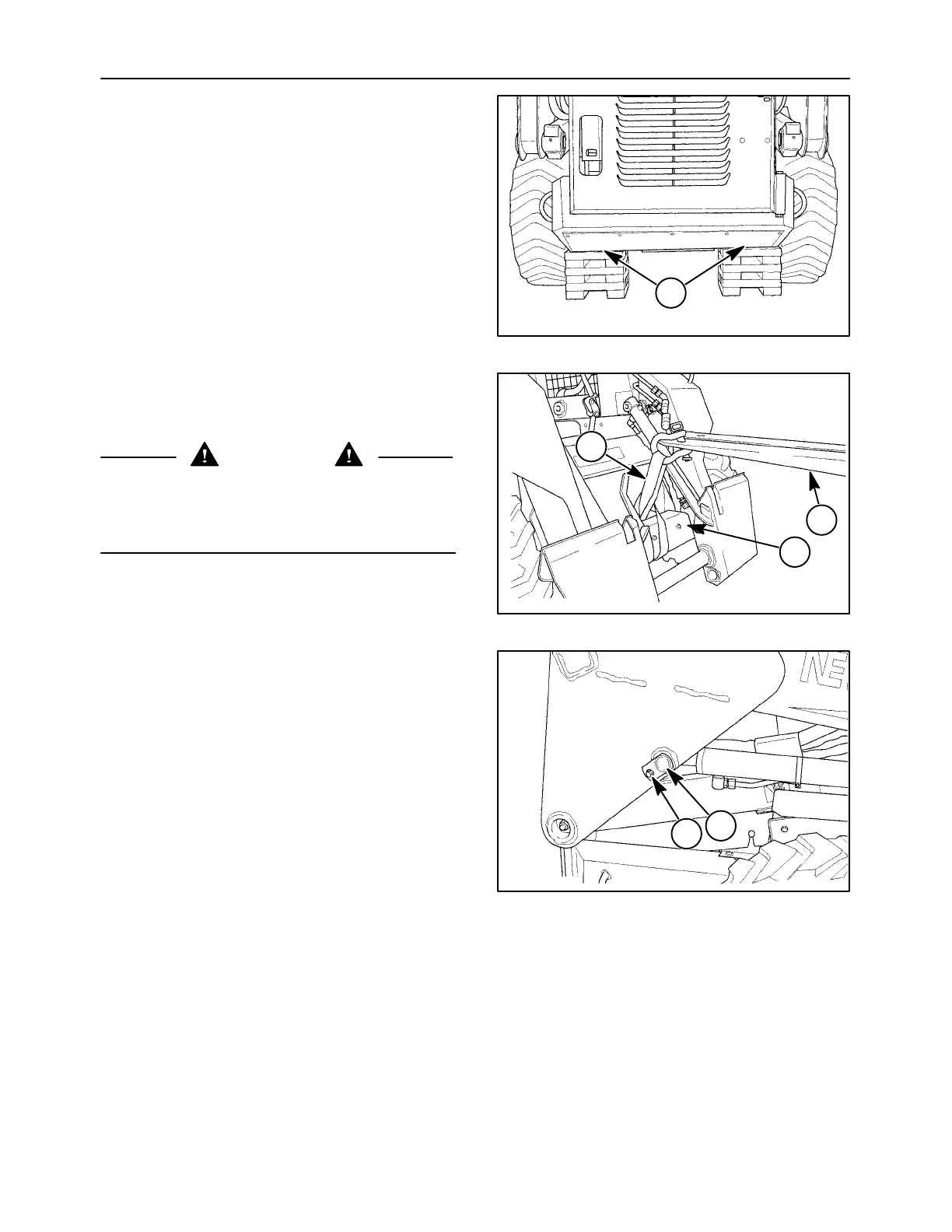

1. Remove any attachment from the boom
mounting plate.
2. Block the rear of the skid steer under the rear of
the final drive cases, 1, as shown. This will
prevent the front wheels from raising during
boom lifting.
19995757
1
9
3. Attach a chain or strap, 1, to the main boom, 2,
and lifting device, 3. Attach chain or strap
securely to prevent unhooking during boom
lifting.
CAUTION
Attach suitable chains or straps capable of
handling the weight of the boom, 454 kg (1000
lbs). Attach chains securely to prevent them from
coming loose during lifting of the boom.
3
19995758
2
1
10
4. Remove the rod end (top) pivot pins, 1, from both
cylinders by removing the retaining hardware, 2,
from pivot pin and boom.
19995760
2
1
11
