SECTION 35 - HYDRAULIC SYSTEM
35-99
PEDAL INSPECTION
With Boom and Bucket Hand Controls

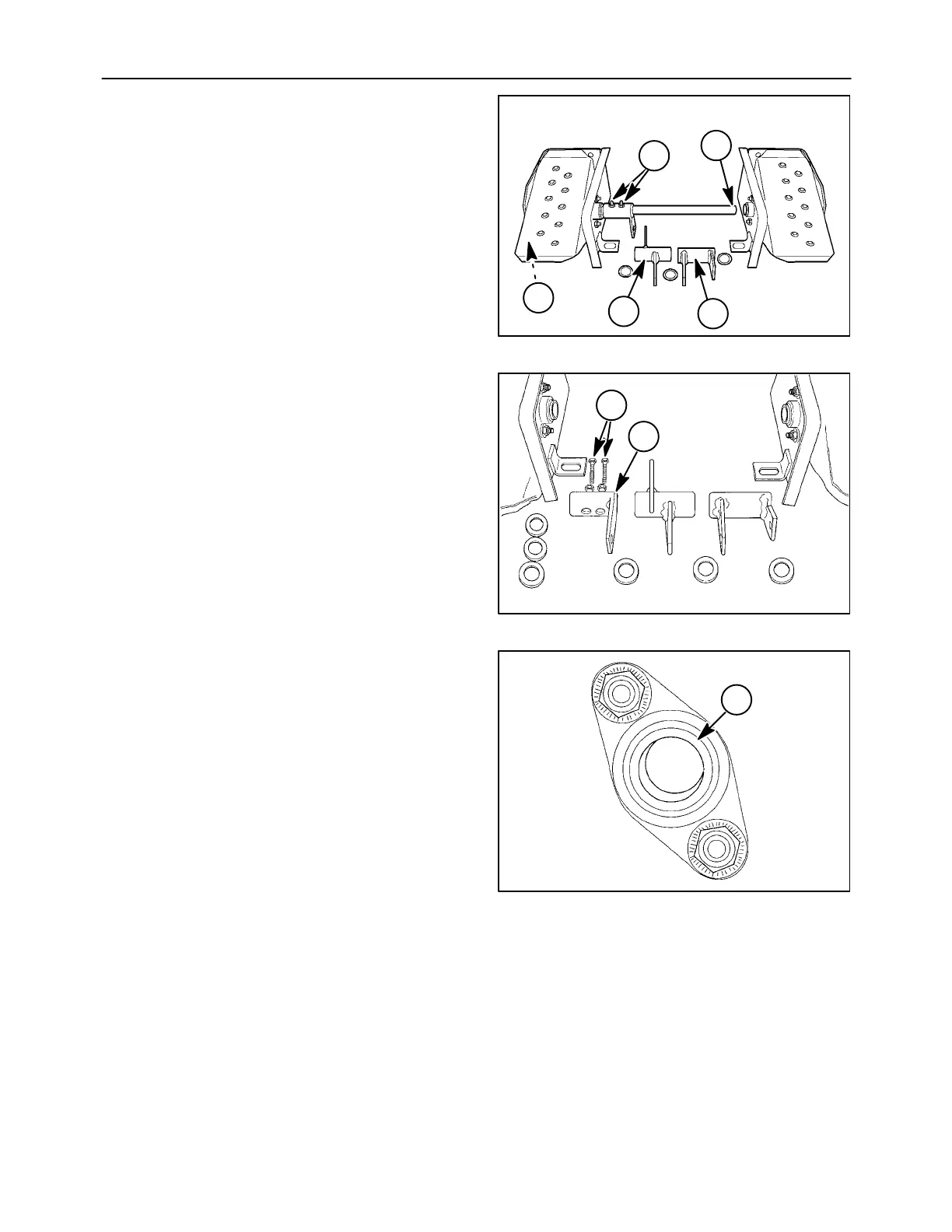

1. Remove the bucket hub arm assembly, 1, and
the boom hub arm assembly, 2. Inspect the hub
arm assemblies for any deformation or cracks.
2. Inspect the control shaft, 3, for any obvious dam-
age or bends. To remove control shafts, remove
the two allen screws, 4, securing the auxiliary hy-
draulic hub, 2, to the control shaft. Then remove
the bolt, 5, securing shaft arm to pedal. Take note
of the position and number of any spacer wash-
ers or shims.
19996824
1
3
2
4
5
186
3. Remove the two allen screws, 1, securing the
boom hydraulics hub, 2, to the control shaft. In-
spect the boom hydraulics hub for any deforma-
tion or cracks.
19996825
2
1
187
4. Inspect the shaft bearings, 1, for excessive wear.
If bearings do not move freely, replace.
19996826
1
188
