SECTION 55 - ELECTRICAL SYSTEM
55-93

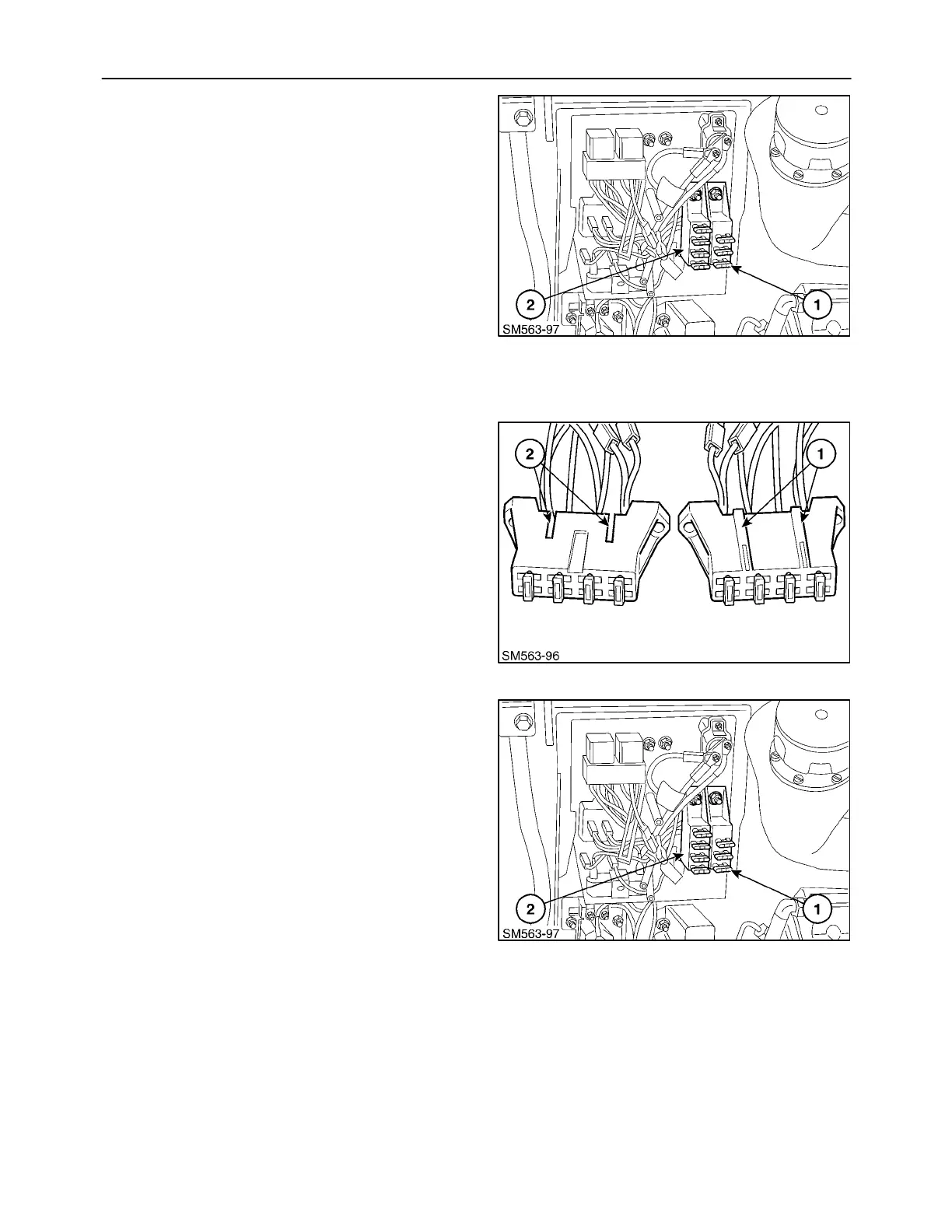

ENGINE FUSE BLOCK REMOVAL
1. Disconnect the negative (–) battery cable.
2. Remove the fuse block retaining hardware.
NOTE: The standard fuse block, 1, is part of the main
harness and cannot be completely removed.
3. The optional equipment fuse block , 2, locks into
the standard fuse block. Insert a 1/4″ blade
screwdriver at the center of the fuse block bases
and twist to release the lock. Slide the optional
block up past the fuses on the standard block to
separate.
4. Unplug the wires from the fuse block assembly.
109
ENGINE FUSE BLOCK INSTALLATION
1. Insert the lock tabs, 1, into slots, 2, and slide the
two blocks together to lock securely as shown.
NOTE: The optional equipment fuse block slides
down over the standard block guides and is
positioned toward the center of the panel.
110
2. Attach the wires to the proper side of the fuses as
shown in the “ENGINE FUSE PANEL WIRING“
figure, Figure 113.
1 Standard fuse block
2 Optional equipment fuse block
3. Reinstall the block retaining hardware.
4. Reconnect the negative (–) battery cable.
111
