SECTION 35 - HYDRAULIC SYSTEM
35-108

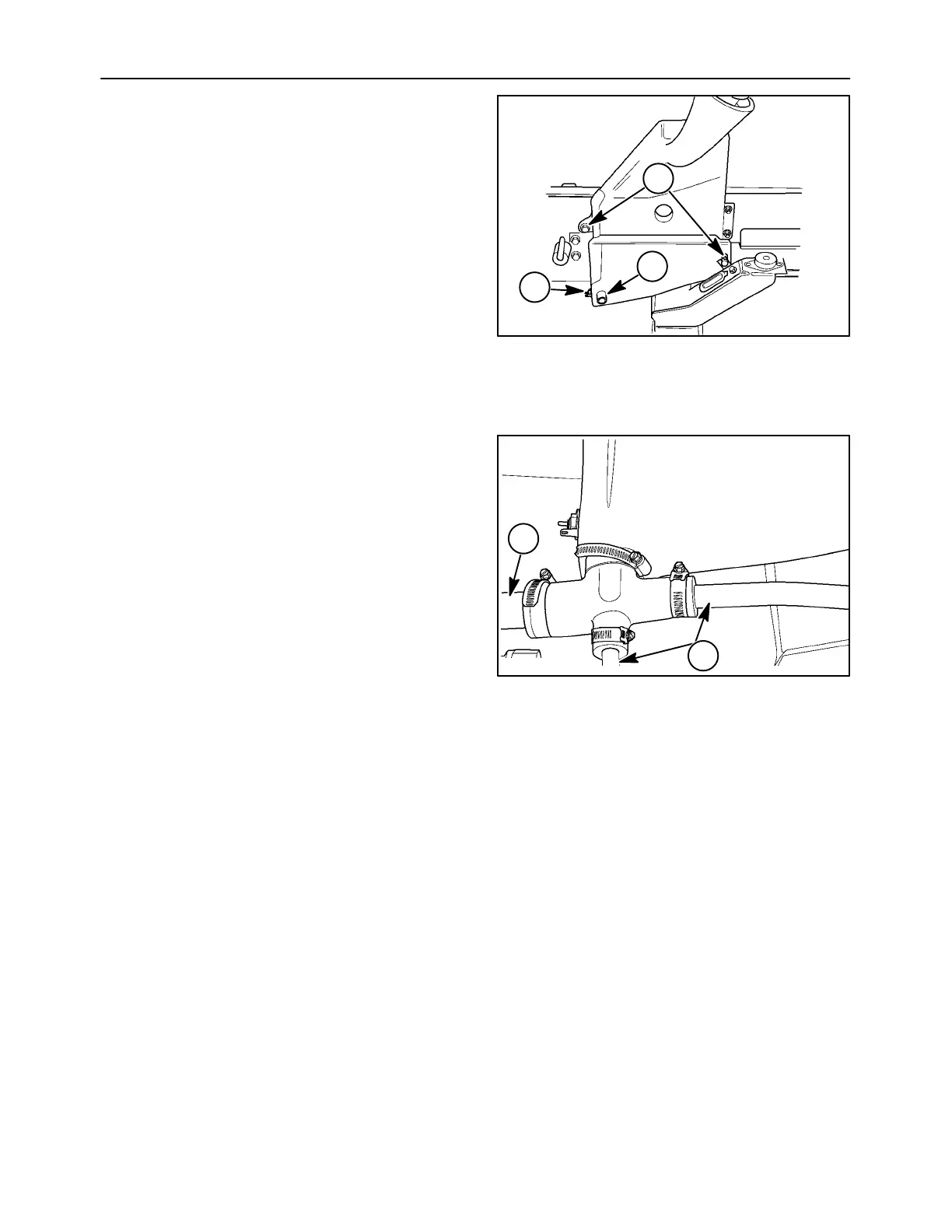

With the cab tilted forward:
1. Drain the reservoir by lowering the engine belly
pan, removing the return line from the charge
check valve and rotating the line into a container.
Allow the oil to drain.
2. Remove the hydraulic oil temperature sender
wires, 1.
3. Remove the suction and return lines from the res-
ervoir at 2.
4. Remove the front and rear mounting hardware,
3.
5. Lift the reservoir from the loader.
NOTE: If the reservoir tank should leak due to a hole
or crack, DO NOT repair. Replace the tank, as the
type of material used in the molded tank is not reliably
fixed.
19998076
1
2
3
209
REINSTALLATION
1. Reinstall the reservoir into the loader frame, posi-
tion and reinstall the tank retaining hardware.
2. Reattach the suction, 1, and return, 2, lines and
tighten the hose clamps securely.
3. Refill the reservoir with 10W-30 oil and operate
the hydraulic system to remove all air from the
system. Check for oil leaks, repair as required.
4. Check the oil level, fill as required.
5. Reinstall the engine belly pan.
6. Tilt the cab and boom back into operating posi-
tion.
7. Reinstall all shields previously removed.
19997804
1
2
210
