SECTION 55 - ELECTRICAL SYSTEM
55-131
Op. 55 301 12

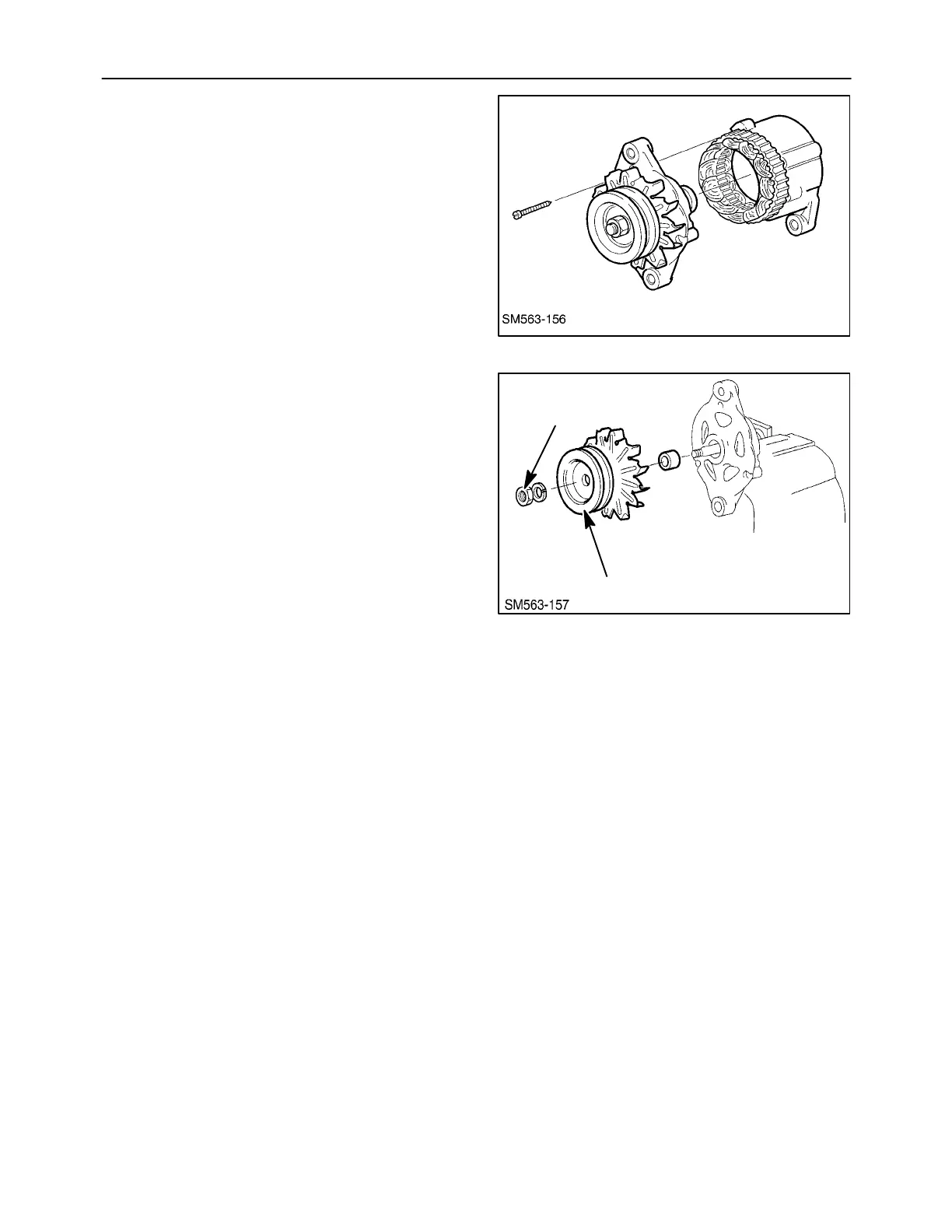

DISASSEMBLY
1. Mark both brackets and the stator with a scribe
mark for assembly.
2. Remove the four through bolts. Pry between the
stator and front bracket with the blade of a
screwdriver. Carefully separate the front bracket,
pulley, and rotor assembly away from the stator
and rear bracket assembly.
180
3. Place the rotor in a vise with soft jaws and
remove the pulley nut, washer, pulley, spacer,
and rear bracket from the rotor.
Nut
Pulley
181
