SECTION 55 - ELECTRICAL SYSTEM
55-115

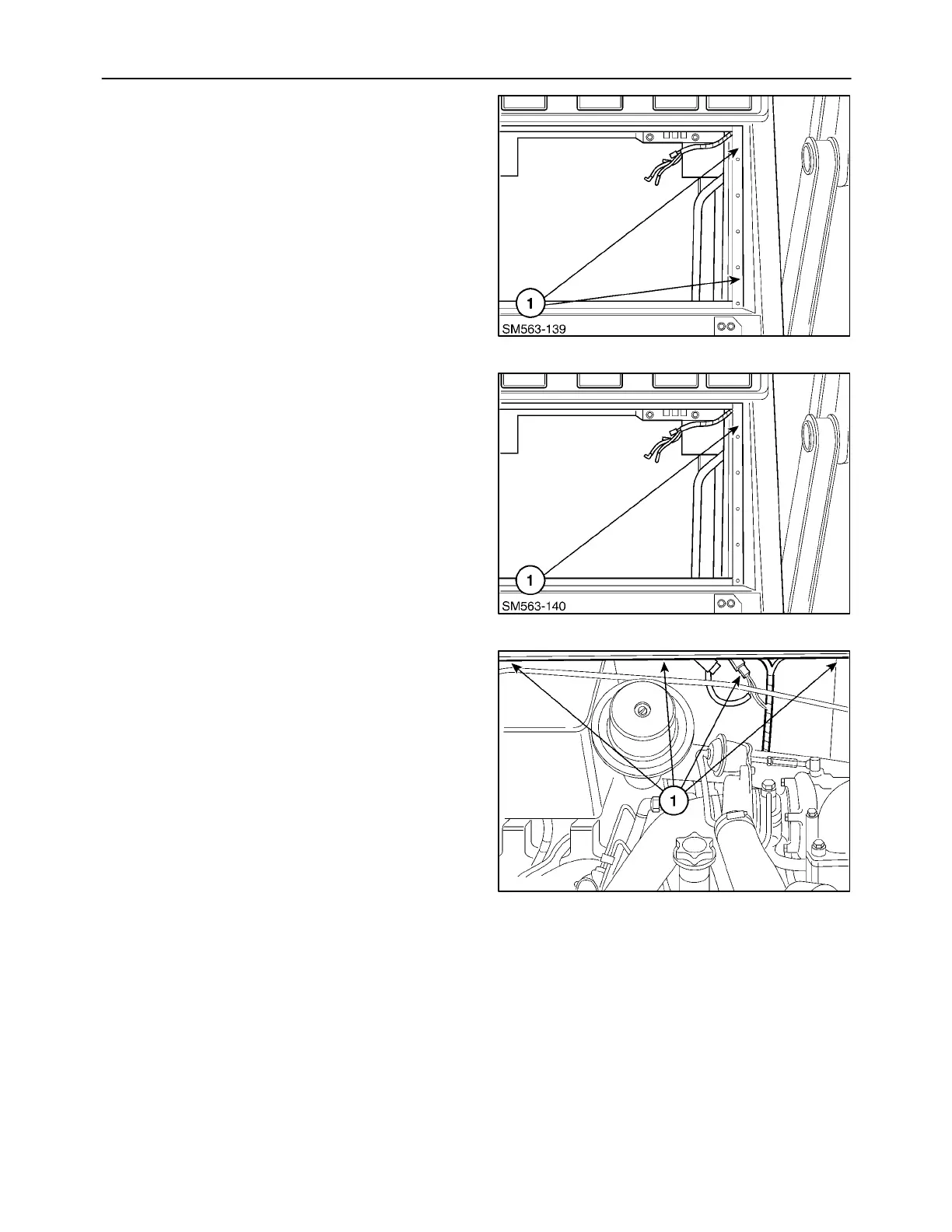

23. Now the right side panel, 1, can be pivoted into
the center of the cab area at the rear and the wire
harness can be removed from the corner of the
side panel.
154
MAIN WIRE HARNESS INSTALLATION
1. Install the wire harness up the right rear corner of
the side panel with the EIC board connector
toward the front of the loader cab. Position the
service/run and fuse block connectors at their
location. Place the wire in the upper rear corner
of the cab side panel at 1, to prevent the wire
harness from contacting the cab panel retaining
hardware. Install two wire ties or clamp at the
upper right side of the rear window and one tie at
the bottom to hold the harness up and maintain
clearance from the cab panel hardware and
headliner support.
155
2. Place the main wire harness to the front side of
the boom lock linkage at 1, and reinstall the wire
clamps. Route the harness across the loader to
the left side of the loader.
156
