SECTION 35 - HYDRAULIC SYSTEM
35-104
Op. 35 705

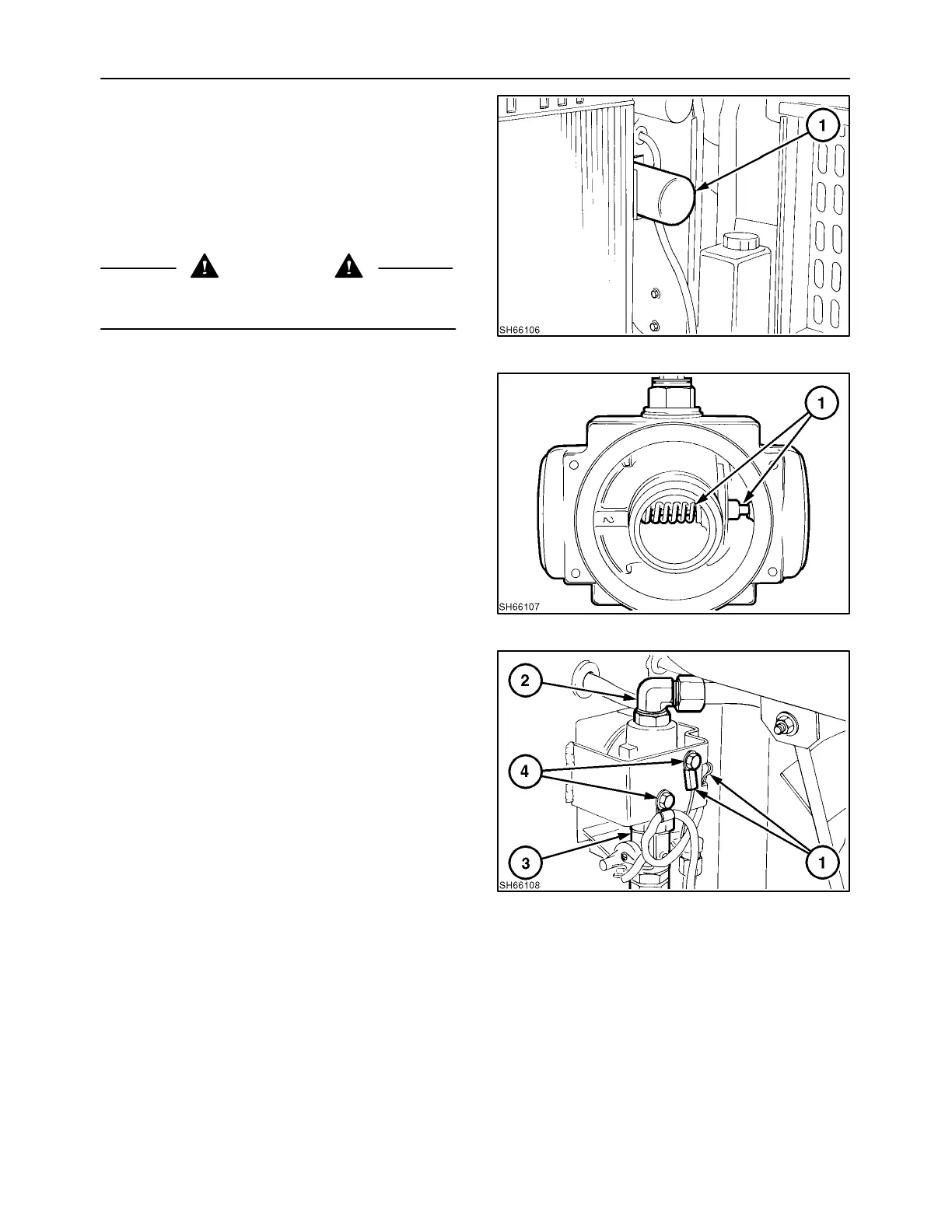

FILTER SYSTEM
The skid-steer loader is equipped with a single spin-
on filter canister type located at 1, to the right of the
engine radiator. The filter is a 10-micron element.
NOTE: Allow the hydraulic oil to cool before changing
the filter.
CAUTION
The hydraulic oil filter will be under pressure
when the oil is at operating temperature.
197
The filter base is equipped with a bypass valve, 1, to
allow cold oil to bypass the filter without damaging
the filter or starving the hydrostatic system of
lubrication oil during cold weather start-ups.
In cold weather start-ups, allow the hydraulic oil to
warm up before operating the boom, bucket, or the
hydrostatic ground drive system, to prevent possible
damage to the systems.
The filter base is also equipped with a pressure
sensor that is monitored by the EIC (Electronic
Instrument Cluster) to signal the operator of a
plugged oil filter.
198
Op. 35 705 04
FILTER REMOVAL
Op. 35 705 05
BASE REMOVAL
The filter base can be removed by opening the rear
door and removing the right engine side panel.
1. Remove the sensor wires, 1.
2. Remove the inlet, 2, and outlet, 3, oil lines and
cap to prevent loss of oil.
3. Remove the filter base mounting hardware, 4.
4. Remove the filter assembly from the unit.
199
