SECTION 29 - HYDROSTATIC TRANSMISSION
29-28

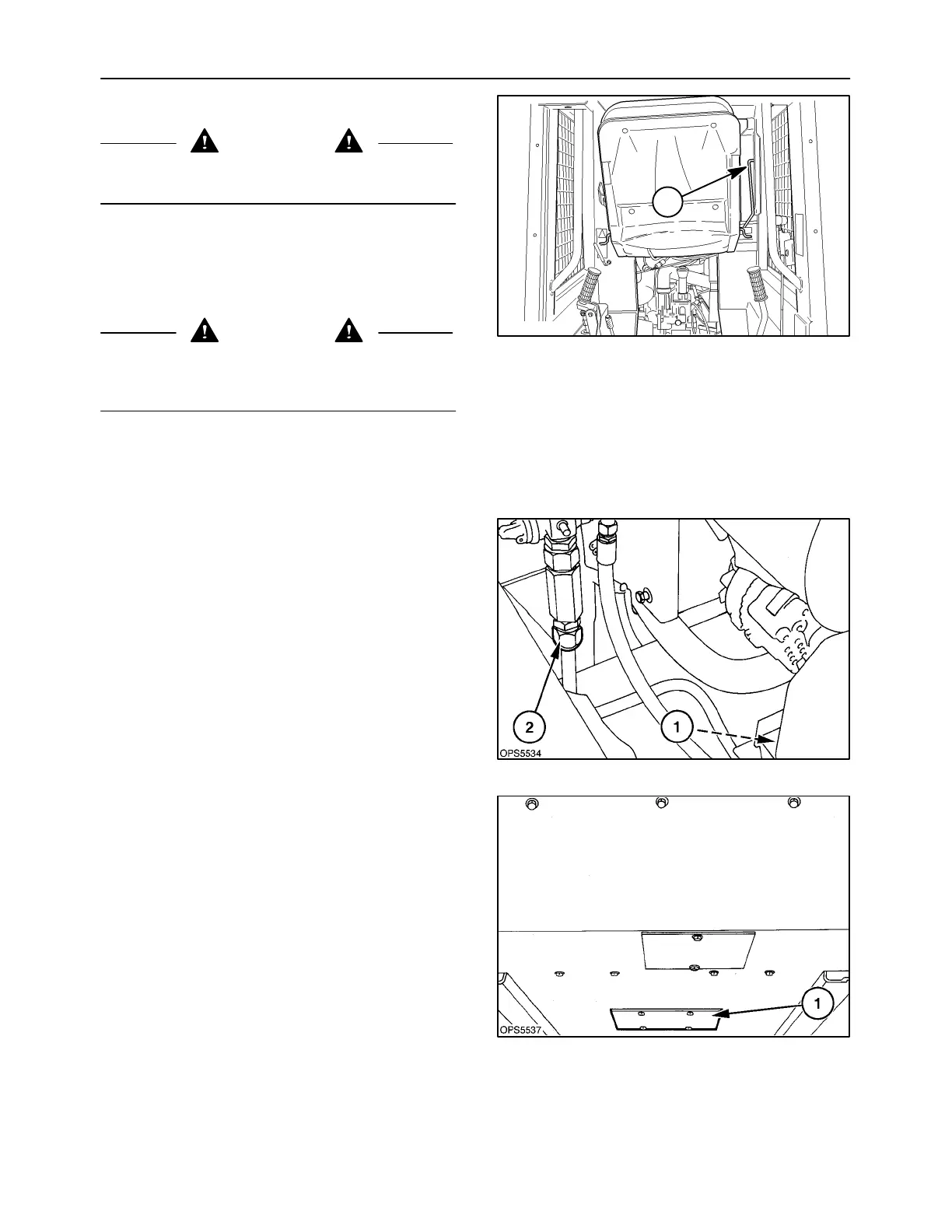

6. Raise the operator’s seat and latch in the raised
position, 1.
CAUTION
Never work under a raised seat unless it is
securely latched in the raised position.
7. Remove the step shield to access the hydrostatic
pump area. For more access, remove the right
and left hydrostatic control handle assembly.
8. Relieve all pressure in the hydraulic and
hydrostatic systems.
CAUTION
Never loosen any hydraulic lines without first
relieving all pressure in the systems to avoid
serious injury.
Draining the hydraulic oil reservoir is not required
if the suction and return lines are capped to
prevent loss of oil unless the hydraulic system
requires cleaning.
4825-11r
1
32
9. Drain the hydraulic reservoir.
– Loosen the return line clamp, 1.
– Remove the return line at 2, and rotate the
line into a suitable drain pan.
33
10. Remove the inspection plate, 1, from under the
center of the loader frame to access the front
hydrostatic pump support.
11. Remove the two hydrostatic pump support bolts
from the main frame and the pump support plate.
34
