SECTION 29 - HYDROSTATIC TRANSMISSION
29-73

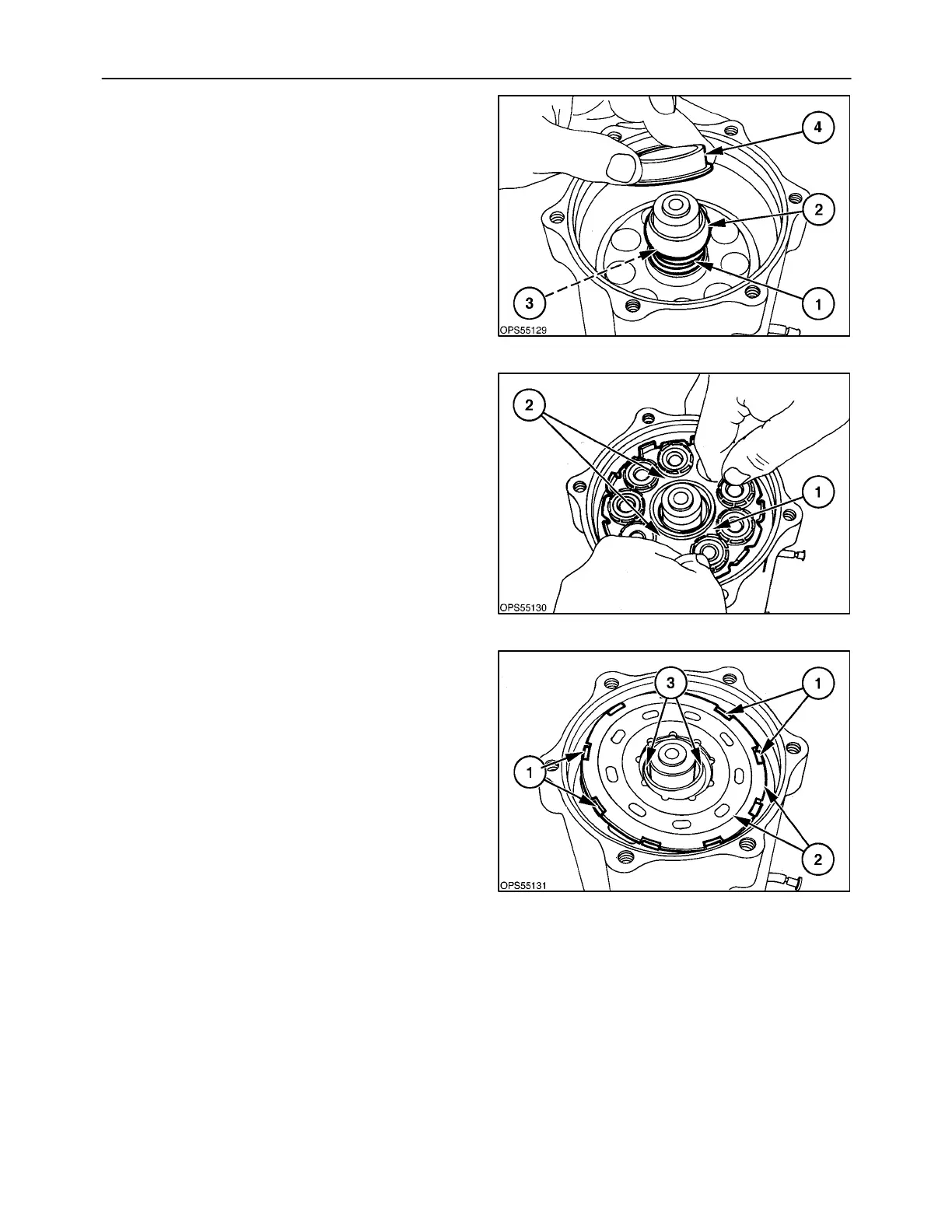

Install spring, 1, over the shaft. Lubricate pivot,
2, with STP, and make sure it slides easily over
the shoulder on the shaft, 3. Install pilot, 4, over
the pivot assembly.
157
2. Lubricate the pistons with SAE SH/CG4 10W-30
oil and install the pistons and spider assembly, 1,
making sure the spider plate is properly
positioned over the pivot support, 2.
158
3. Lubricate both sides of the connector plate and
install it as shown with the flat side next to the
pistons and the raised side up.
NOTE: Be sure the connector plate sits inside the
locators on the spider at 1.
4. Set the connector plate and spider, 2, at the angle
to match the fixed angle of the back plate. Center
the connector plate, spider, and pivot around the
shaft at 3.
