SECTION 29 - HYDROSTATIC TRANSMISSION
29-83

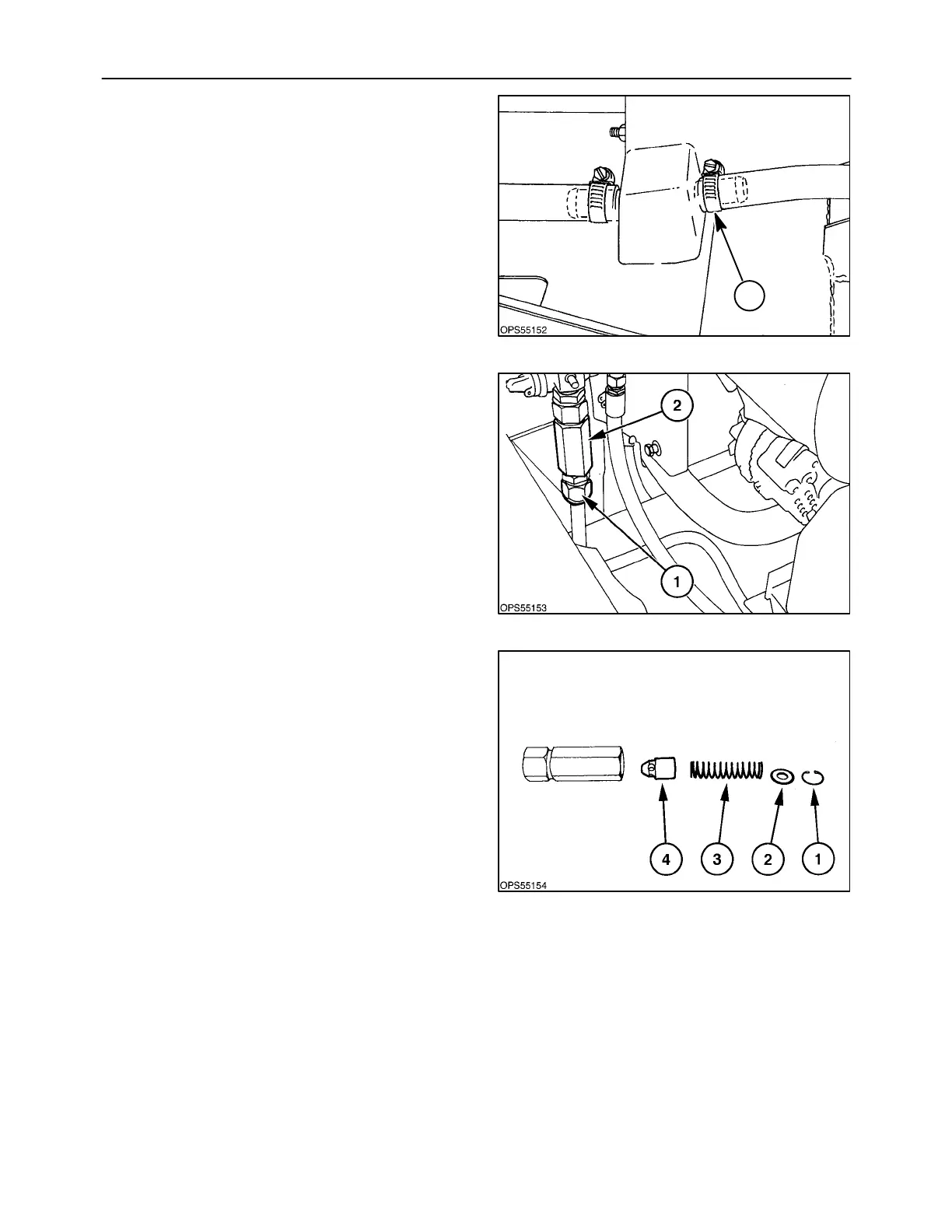

Loosen the return line clamp, 1.
1
182
Remove the return line at 1, and rotate the line
into a suitable drain pan. Thoroughly flush the
reservoir with a suitable clean solvent or clean
10W-30 oil.
4. Remove the charge check valve, 2, and
thoroughly flush the oil cooler with solvent by
forcing the solvent through the cooler.
183
5. Disassemble the check valve by removing the
snap ring, 1; washer, 2; spring, 3; and plunger, 4.
Clean the check valve parts thoroughly.
NOTE: The spring in the check valve will be slightly
compressed, use caution when removing the snap
ring.
