SECTION 33 - BRAKES AND CONTROLS
33-16

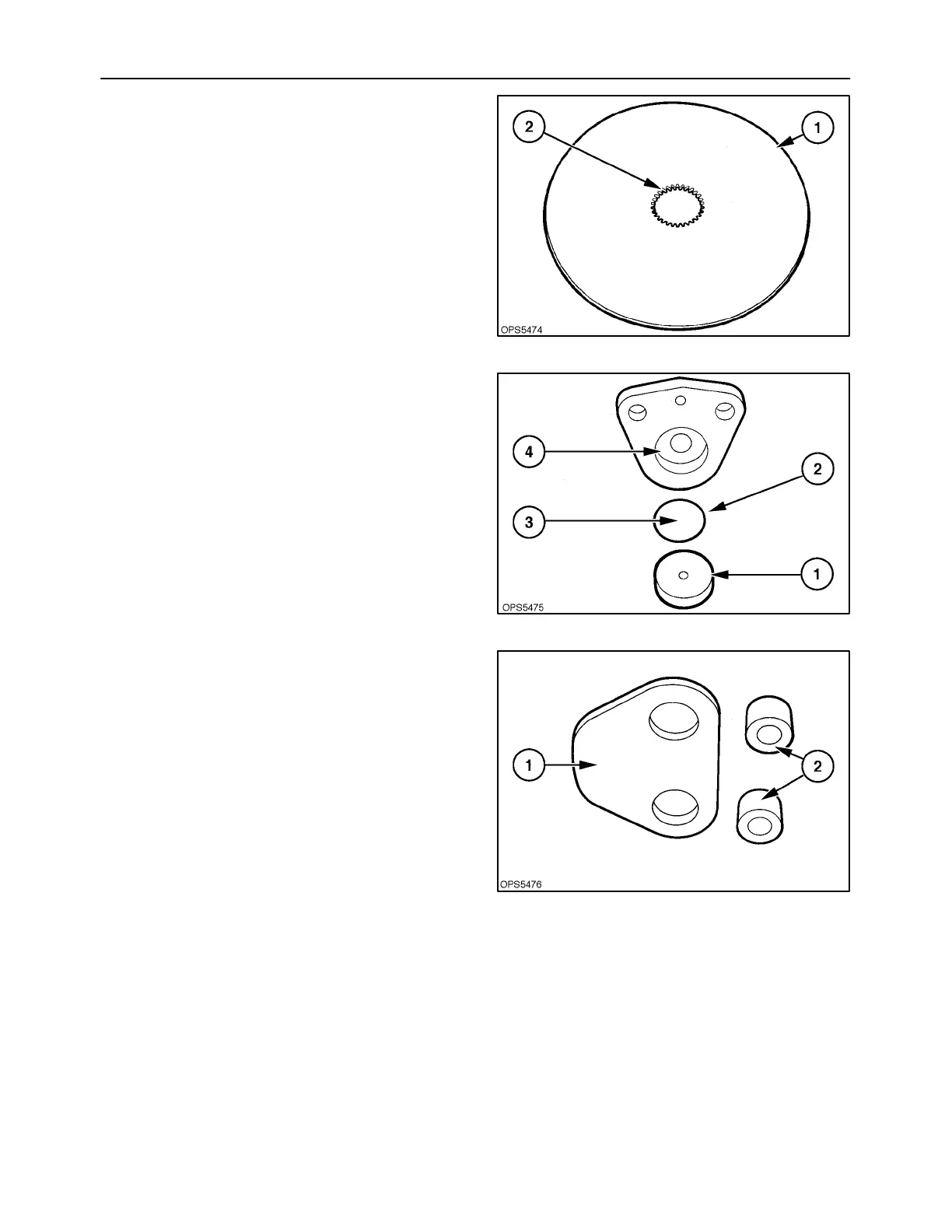

1. Inspect the brake disc for wear in the clamp area,
1, and splines, 2. The disc should also be flat. If
worn severely or bent, replace.
30
2. Inspect the brake friction puck, 1. If worn severe-
ly, replace.
3. The spacer plate, 2, will show a small amount of
wear in the center next to the shaft at 3. This is
normal.
NOTE: The spacer plate, 2, must be installed into the
caliper support, 4, first during reassembly.
31
4. Inspect the caliper center plate, 1, and bushings,
2, for wear. Replace if worn.
32
