SECTION 35 - HYDRAULIC SYSTEM
35-63

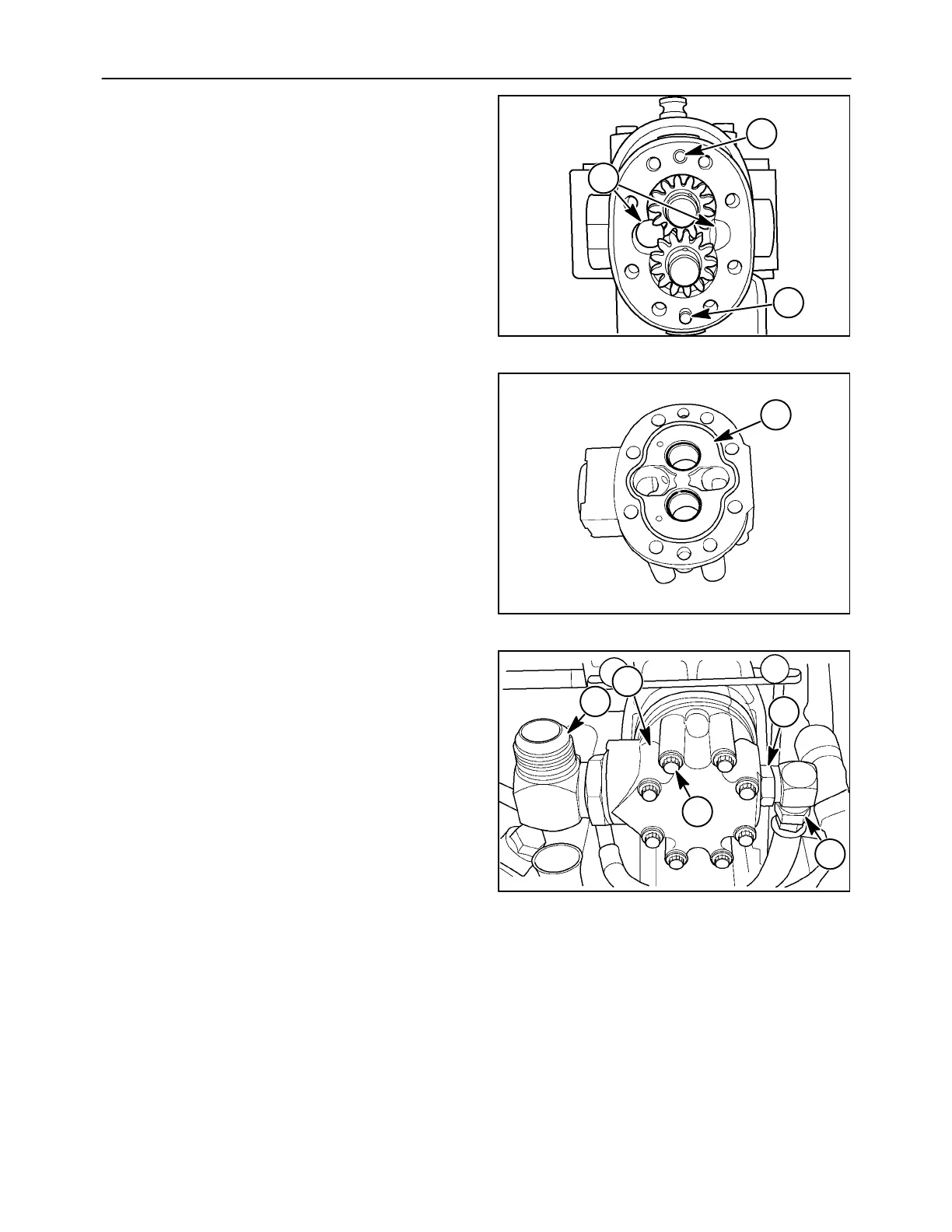

6. Make sure the dowel pins, 1, are in place and
install the body on the plate with the half-moon
cavities, 2, in the body facing out away from the
plate. Check that the reference marks made dur-
ing disassembly align correctly.
NOTE: The small half-moon cavity, 2, must be on the
pressure side of the pump.
19997785
1
2
1
90
7. Install a new O ring, 1, in the back plate.
19997761
1
91
8. Install the pump back plate, 1, over the gear
shafts. Check that the reference marks made
during disassembly align correctly.
9. Install the housing hardware with the eight bolts,
2, and sealing washers. Tighten the bolts evenly
in a criss-cross pattern to 34 - 38 Nâ‹…m (25 - 28 ft.
lbs.).
10. Install the high pressure port fitting, 3, and the
high pressure line, 4. Tighten the high pressure
line connections securely.
11. Install the suction tube port fitting, 5, and turn the
fitting up. Add SH/CG4 10W-30 oil to fill the bot-
tom of the hydraulic pump.
19998081
2
1
3
4
5
92
