SECTION 35 - HYDRAULIC SYSTEM
35-101

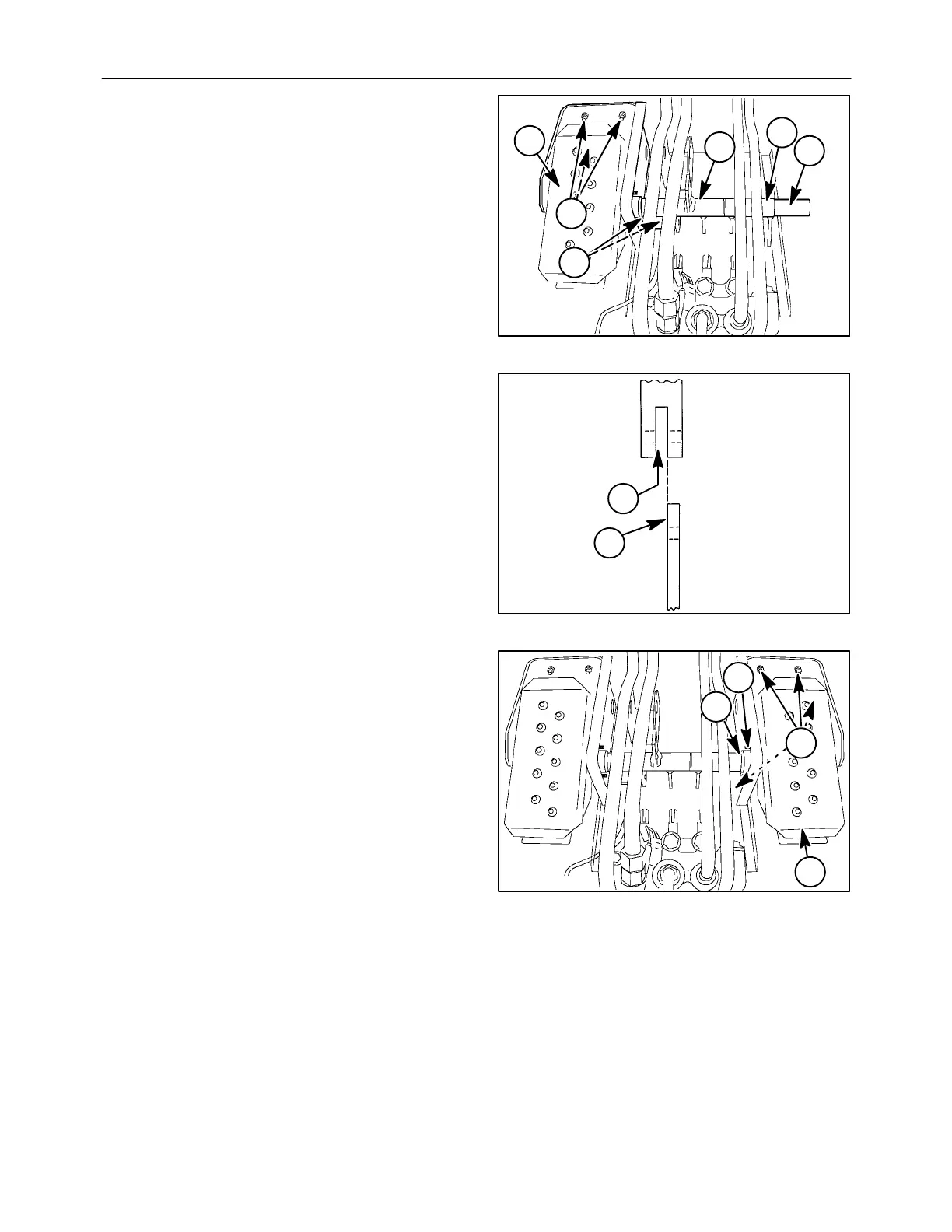

3. Install the left pedal assembly, 1, and attach the
front plate with hardware, 2, previously removed.
Do not tighten the hardware at this time.
4. Install the boom hub assembly, 3, and bucket hub
assembly, 4, onto the pivot shaft, 5.
19996831
2
1
3
4
5
2
192
5. Slide the pedal assembly to align the auxiliary hy-
draulic hub arm as shown. Align the inside edge
of the hydraulic hub arm, 1, with the slot in the
control valve spool, 2. Tighten the pedal mount-
ing hardware.
6. Recheck the alignment of the hub arm and spool.
7. Check the alignment between the hub arms and
control valve spools. Add shim washers if neces-
sary to correct alignment.
1
2
193
8. Install the right pedal, 1, adding shim washers as
necessary at 2, fitting inside the bearing, 3, so
pedal mounting holes line up correctly. Install the
pedal with hardware, 4, previously removed, and
tighten securely.
9. Check for free operation of the foot pedals and
hub assemblies. If any components are binding,
adjust or reshim the right pedal assembly.
19996832
1
3
4
2
194
