SECTION 55 - ELECTRICAL SYSTEM
55-24
4 5
6
3
1
2
14

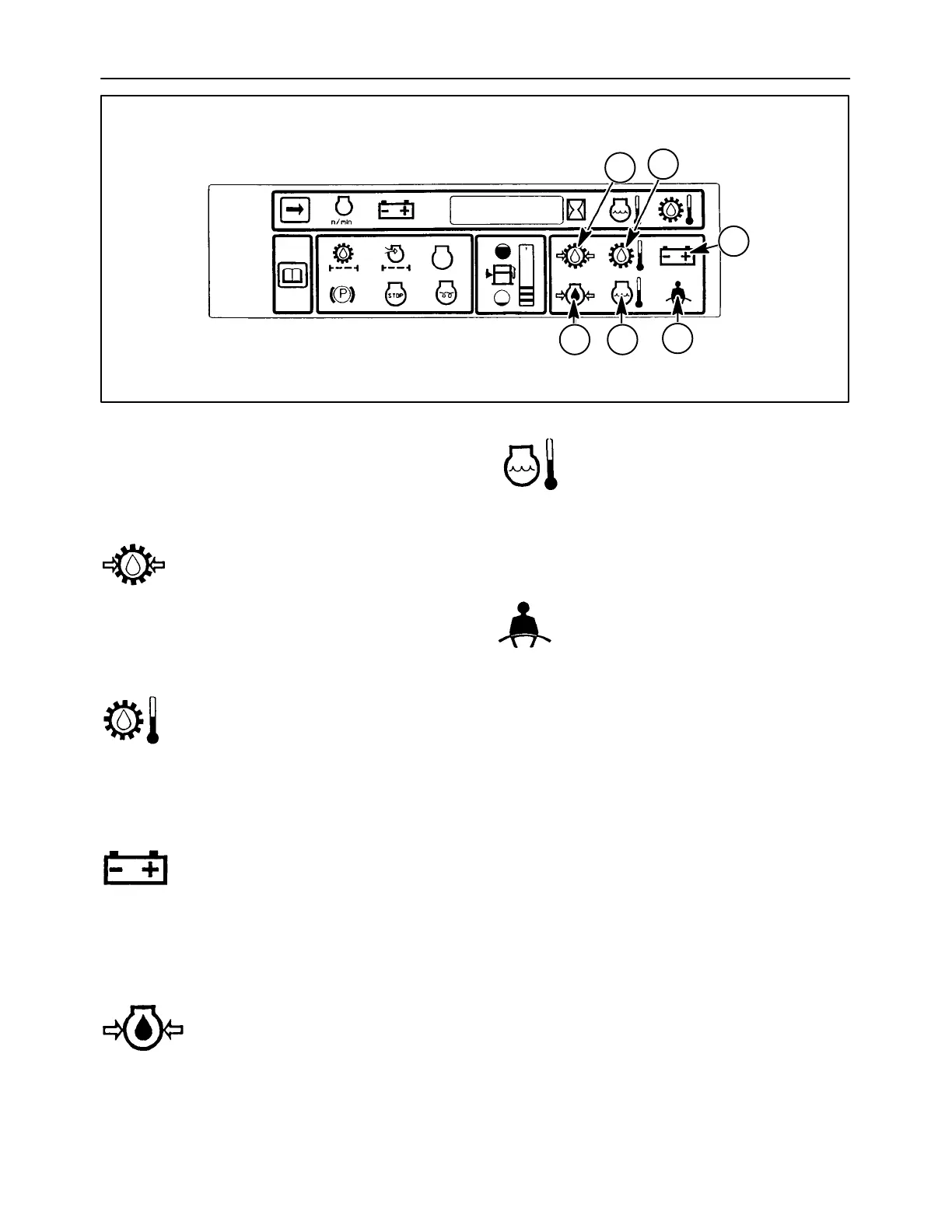

FUNCTIONAL GROUP 4
Symbols in display group 4 are backlighted red.
When a fault occurs, the flashing lamp is
accompanied by the audible alarm.
1. Transmission charge pressure.
When the pressure drops below normal
operating pressure, the lamp will flash with a
continuous alarm.
2. Transmission/Hydraulic oil temperature.
When the oil temperature is above operating
temperature of 99°C (210° F), the lamp will flash
with a 5-second alarm.
3. Battery voltage.
When battery voltage drops below normal
voltage, the lamp will flash with a 5-second
alarm.
4. Engine oil pressure.
When the engine oil pressure drops below
normal pressure, the lamp will flash with a
continuous alarm.
5. Coolant temperature.
When the engine coolant temperature is above
operating temperature of 102°C (216°F) the
lamp will flash with a 5-second alarm.
6. Operator “FASTEN SEAT BELT” symbol.
When the operator is in the seat, the lamp will
flash until the seat belt is fastened.
These symbols are backlighted RED and are
intended to complement the audible alarm
should a fault occur.
7. Alternator/water pump drive belt warning.
If the drive belt breaks, the EIC will signal the
operator with the battery symbol light, 3, flashing
continuously and a 5 second audible alarm.
NOTE: If during Skid-Steer Loader operation the
Engine Coolant or Hydraulic Oil Temperatures show
an overheat condition, the EIC will default to that
function and read the temperature. When this
happens, back off on loader operation and allow the
systems to cool down to within normal operating
temperature ranges. If the temperatures don’t cool
down, stop operating the unit, find the cause and
correct.
