SECTION 10 - ENGINE
10-29
Op. 10 218 18

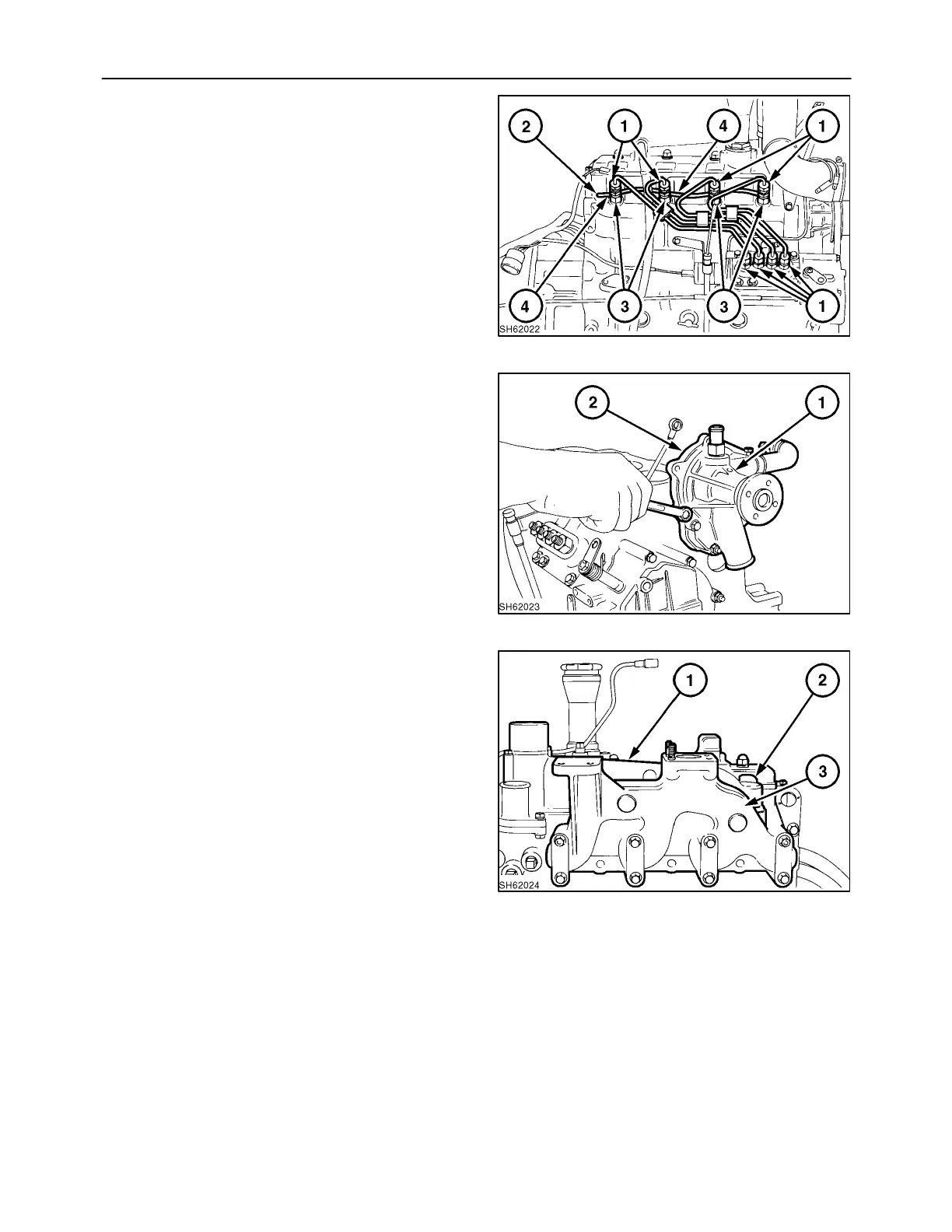

FUEL INJECTION PIPE
1. Loosen the fuel pipe nuts from the fuel injection
pump and injectors, 1. Remove the pipes as an
assembly.
2. Remove the spring clamp and fuel return hose,
2.
Op. 10 218 30
INJECTOR ASSEMBLY
Loosen and remove the securing nuts, 3. Remove
the leak-off rail, 4. Remove the aluminum washers
and discard. Remove the injectors tagging or
marking with the cylinder they were removed from.
23
Op. 10 402 10
WATER PUMP ASSEMBLY
Loosen the securing bolts and remove the water
pump assembly, 1, and set plate, 2.
24
Op. 10 101 10
ROCKER COVER
Op. 10 254 12
INLET MANIFOLD
Op. 10 254 14
EXHAUST MANIFOLD
Remove the inlet manifold, 1, spacer, 2, and exhaust
manifold, 3.
For the N844T turbocharged engine, refer to the
turbocharger section of the manual for removal and
replacement.
25
