SECTION 82 - FRONT LOADER (BOOM AND MOUNTING PLATE)
82-28

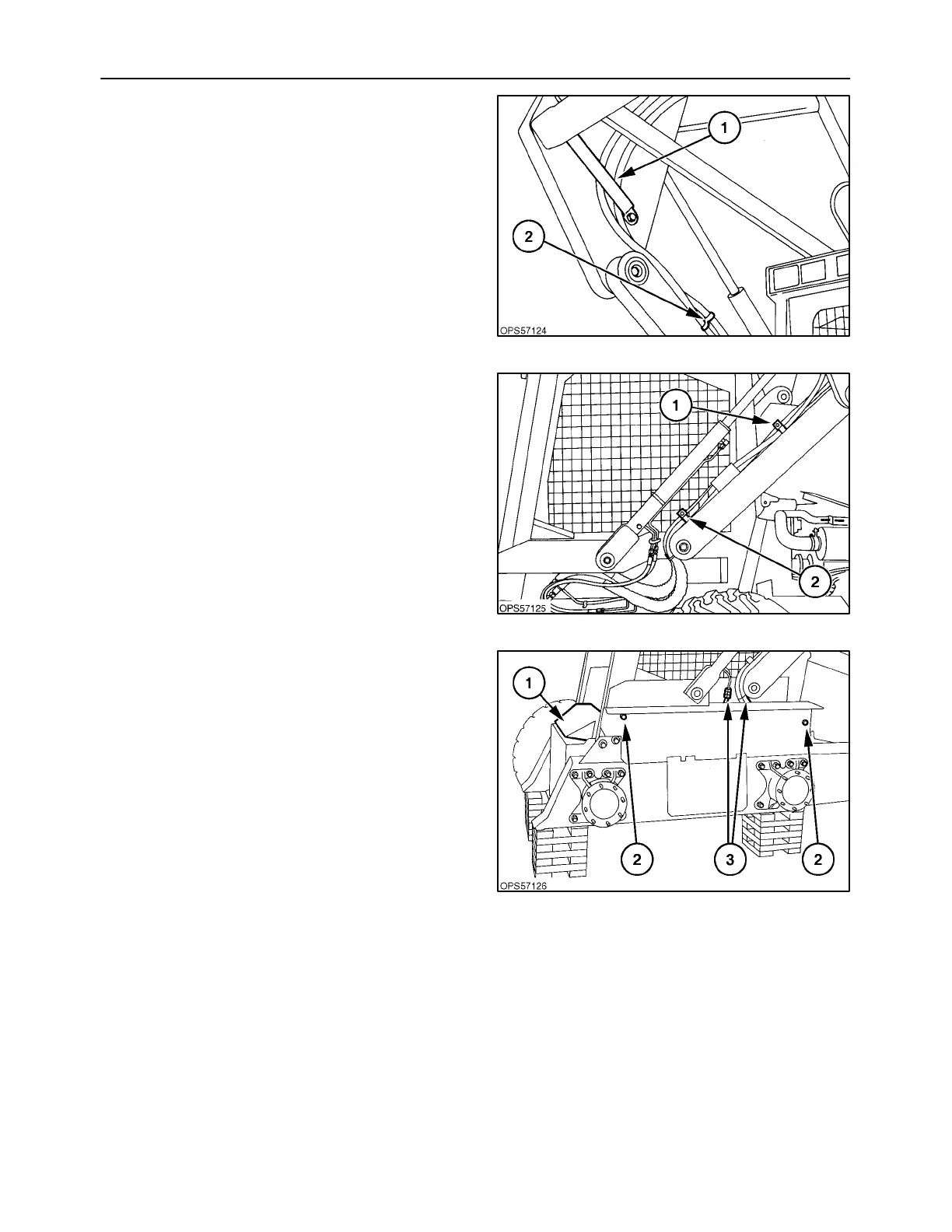

17. Check the hoses, 1, around the rear supports
with the boom in the fully raised position. The
hoses should be routed as shown. Remove any
slack from the hoses to the boom tubes and tight-
en the hose clamp, 2.
65
18. Remove any slack between the top clamp, 1, and
second clamp, 2, and then tighten the second
clamp.
66
19. Install the front step shield, 1, the fenders, and
fender hardware, 2. Raise and lower the boom
checking the hose/tube clearance to fenders at
3, and readjust if required. Check for any oil leaks
and repair if required.
NOTE: The boom may require several cycles up and
down to remove the air from the boom hydraulic cir-
cuit.
67
