SECTION 82 - FRONT LOADER (BOOM AND MOUNTING PLATE)
82-31

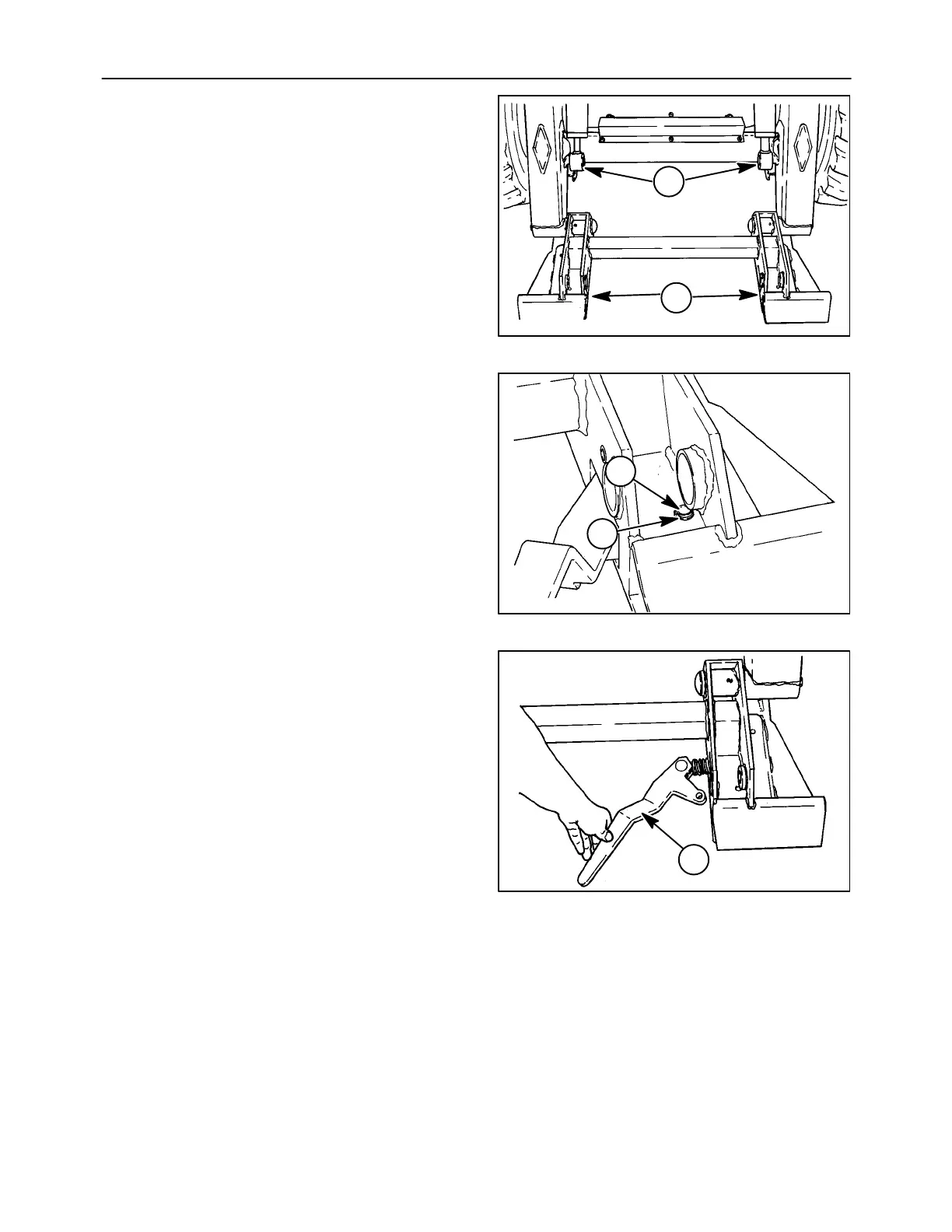

9. Enter the skid-steer loader. Sitting in the opera-
tor’s seat with the seat belt buckled, start the
loader and retract the attachment mounting plate
actuating cylinders, 1, fully to clear the attach-
ment mounting plate, 2.
19984479
1
2
19984479
73
10. Remove the retaining ring, 1, from the latch han-
dle pivot pin, 2, from the rear of the mounting
plate on the LEFT and RIGHT sides.
11. Using a punch and hammer drive the latch han-
dle retaining pin, 2, downward and out through
the front of the attachment mounting plate on
both sides. If there is insufficient ground clear-
ance to fully remove the latch handle pivot pins,
lift the attachment mounting plate up as neces-
sary to clear the pins.
19984480
1
2
19984480
74
12. Remove the handle/spring assembly, 1, from the
attachment mounting plate on the LEFT and
RIGHT sides of the attachment mounting plate.
1
19984481
75
