ENGINE INSTALLATION

1. If removed from engine: install applicable coolant

hoses, stator/flywheel, starter and engine sensors.

2. Install engine in the chassis, be careful not to snag

any hoses or wiring.

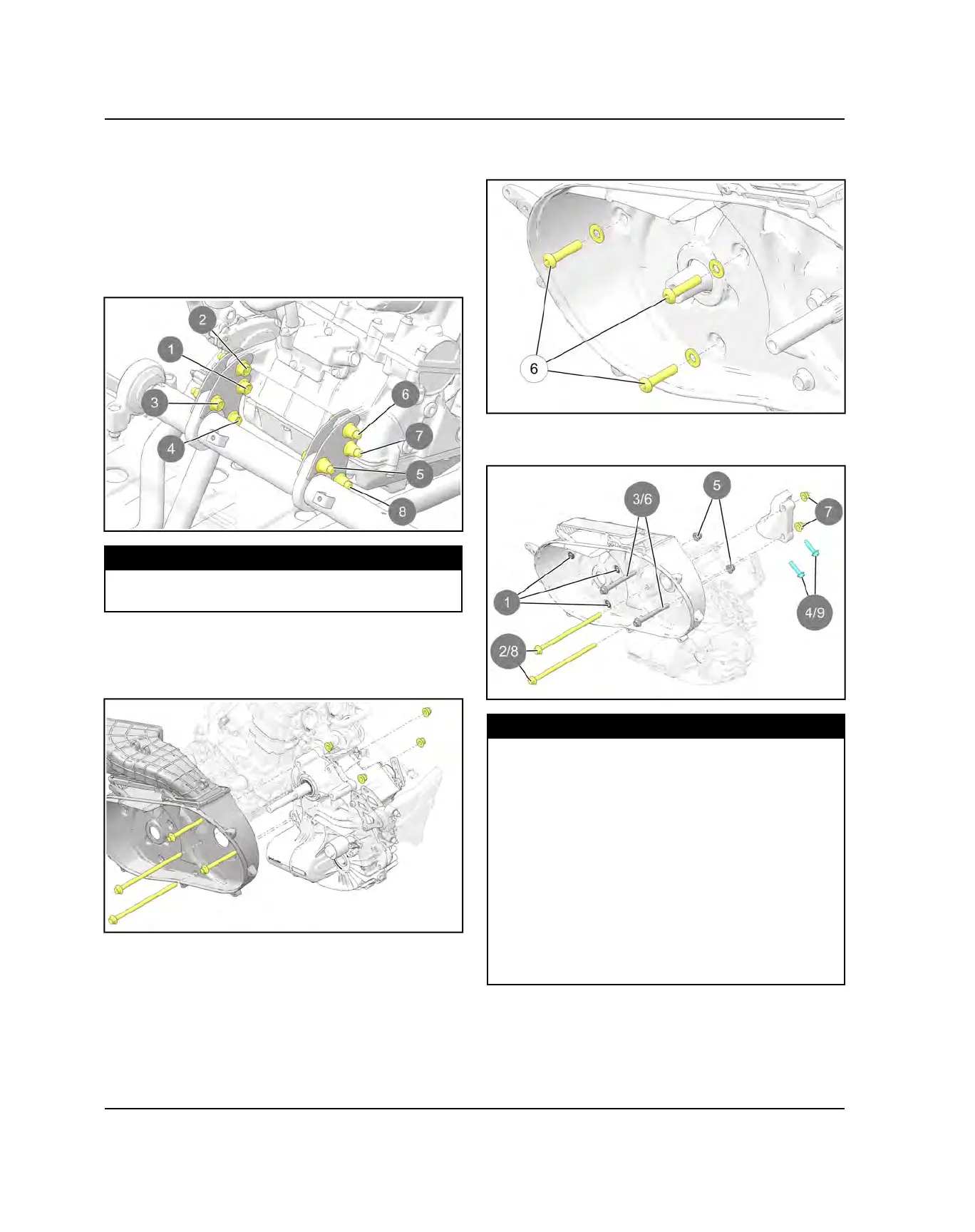

3. Install fasteners retaining engine to the engine mount

bracket. Torque fasteners in sequence shown to

specification.

TORQUE

Engine Mount Fasteners:

40 ft-lbs (54 Nm)

4. Install new foam seal (PN 5416417) around

crankshaft snout prior to installing PVT inner cover.

Loosely install fasteners retaining inner cover to the

transmission and engine/trans joint.

5. Loosely install the three bolts

with washers

retaining inner cover to engine.

6. Torque PVT inner cover fasteners in sequence to

specification.

TORQUE

PVT Inner Cover Fasteners:

STEP 1: Torque to 37 ft-lb (50 Nm)

STEP 2: Loosely install bolts by hand

STEP 3: Loosely install bolts by hand

STEP 4: Loosely install bolts by hand

STEP 5: Loosely install nuts by hand

STEP 6: Torque to 50 ft-lb (68 Nm)

STEP 7: Loosely install nuts by hand

STEP 8: Torque to 50 ft-lb (68 Nm)

STEP 9: Torque to 37 ft-lb (50 Nm)
