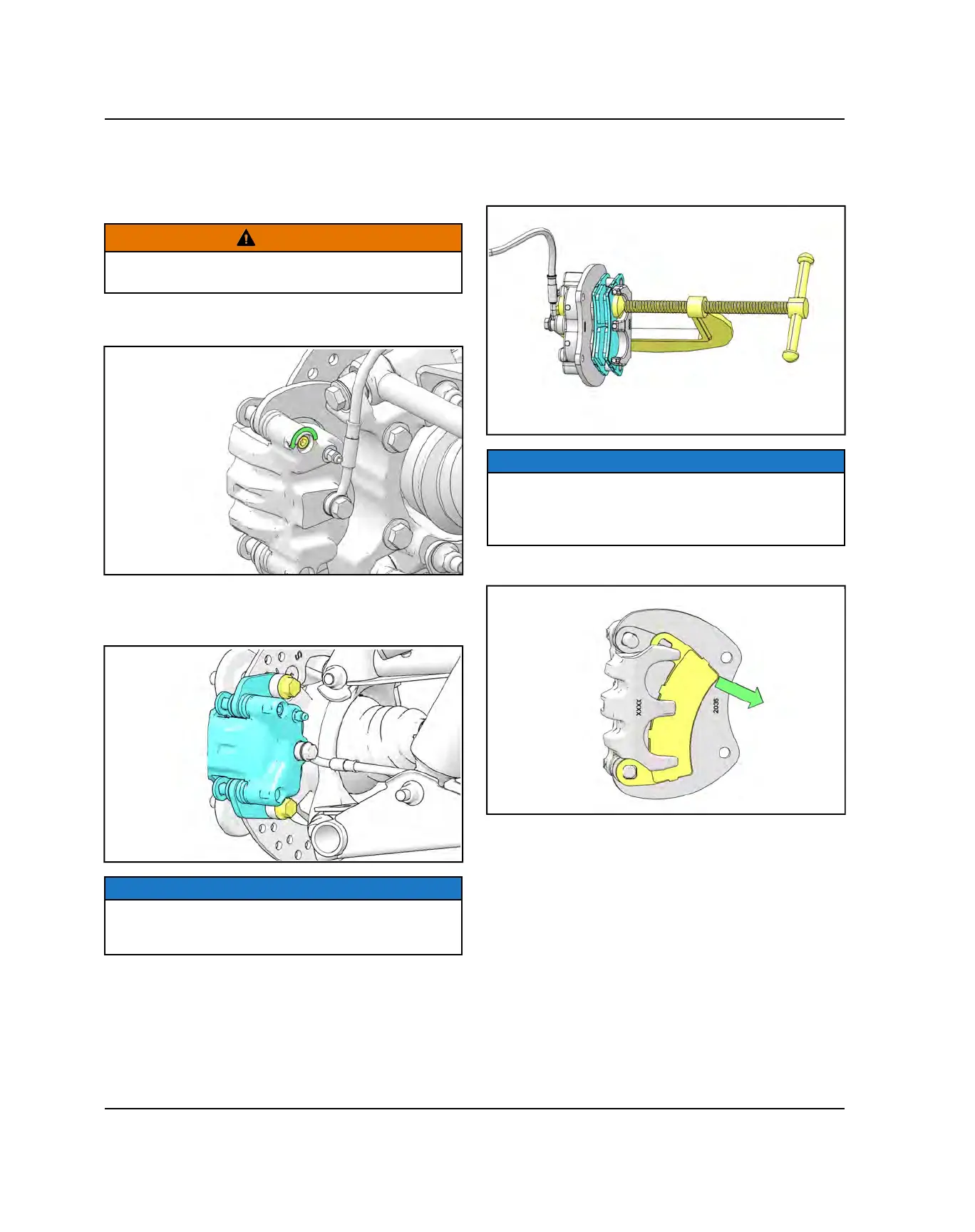

REAR BRAKE PAD SERVICE
REAR BRAKE PAD REMOVAL
1. Elevate and support rear of machine.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur if machine tips or falls.
2. Remove the rear wheel. Loosen the pad adjuster
screw 2-3 turns.
3. Clean caliper area before removal.
4. Remove caliper mounting bolts and lift caliper off of
disc.
NOTE
When removing caliper, be careful not to damage brake
line. Support caliper so as not to kink or bend brake
line.
5. Push caliper piston into caliper bore slowly with pads
installed.
NOTE
Brake fluid will be forced through compensating port
into master cylinder fluid reservoir when piston is
pushed back into caliper. Remove excess fluid from
reservoir as required.
6. Remove the brake pads from the caliper.
