9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
4.5

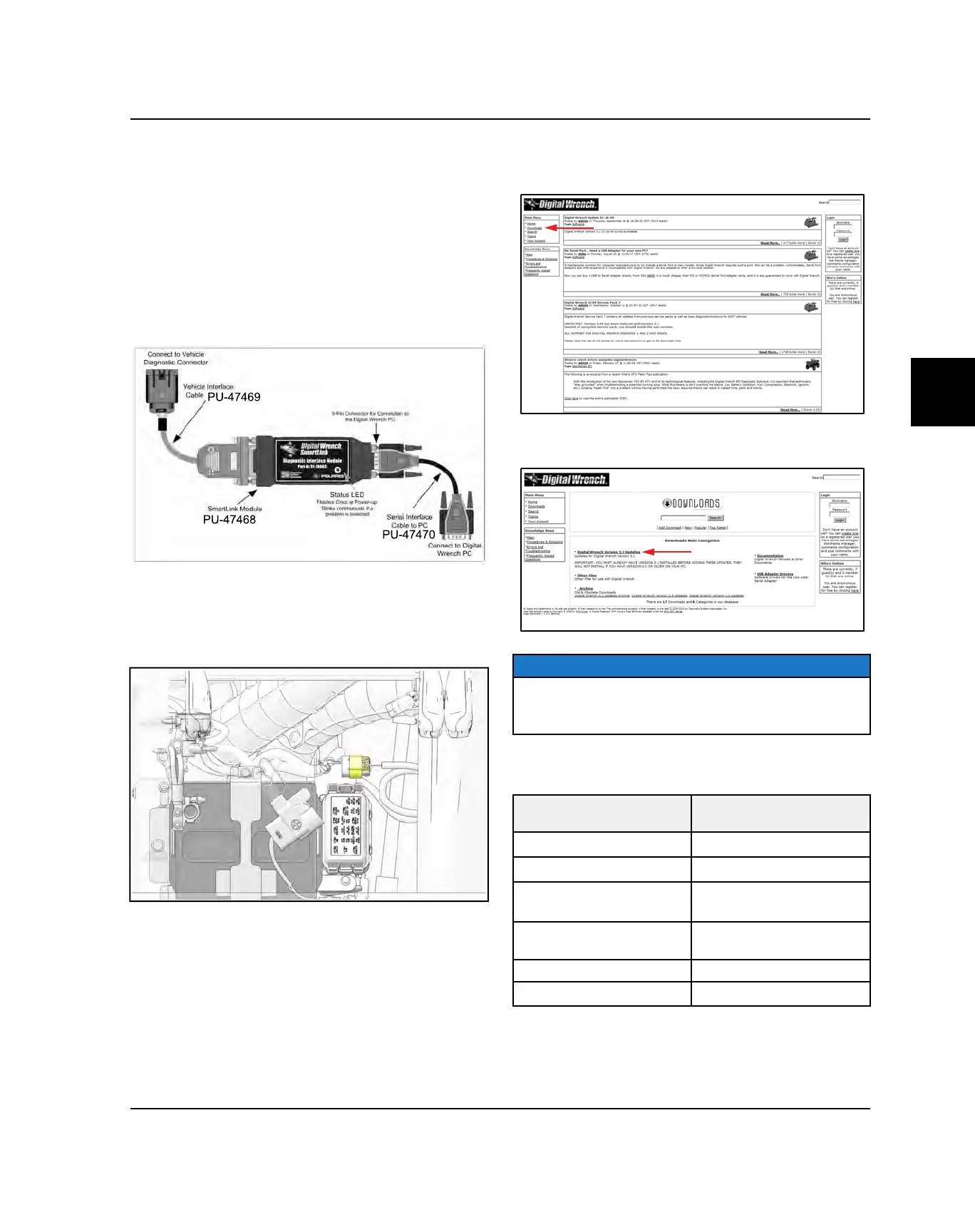

Digital Wrench® SmartLink Module Kit - PU-47471
This module kit contains the necessary cables and
hardware to communicate between the vehicle ECU and
the Digital Wrench® diagnostic software. Polaris dealers
can also order the following kit components separately:
SmartLink Module PU-47468, Vehicle Interface Cable
PU-47469 and PC Interface Cable PU-47470. This
module kit is used on all 8 pin connector-based Polaris
EFI systems. This kit is available to Polaris dealers
through our tool supplier Bosch Automotive Service
Solutions: 1-800-345-2233 or http://polaris. service-
solutions.com.
Digital Wrench® - Diagnostic Connector
The diagnostic connector is located under the passenger
seat connected to a sealed plug. To access the
diagnostic connector lift up the passenger seat and
remove the divider.
Digital Wrench® - Download Website
Located at: www.polaris.diagsys.com
Download Digital Wrench® Updates:
NOTE
For the most recent information on Digital Wrench®
software and update downloads please visit the
website: www.polaris.diagsys.com
SERVICE SPECIFICATIONS - FUEL SYSTEM
PART DESCRIPTION
SERVICE
SPECIFICATION
Fuel Pump Output 9.25 gal (35 L)/hr
Fuel Pressure
58 ± 2 psi (400 ± 14 kPa)
Fuel Sender Resistance -
Empty
450 Ω ± 10%
Fuel Sender Resistance -
Full
100 Ω ± 10%
CPS Resistance 1000 Ω ± 10%
Fuel Injector Resistance
11.4 Ω - 12.6 Ω
FUEL SYSTEM
