10.4
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
BODY COMPONENTS ASSEMBLY VIEWS

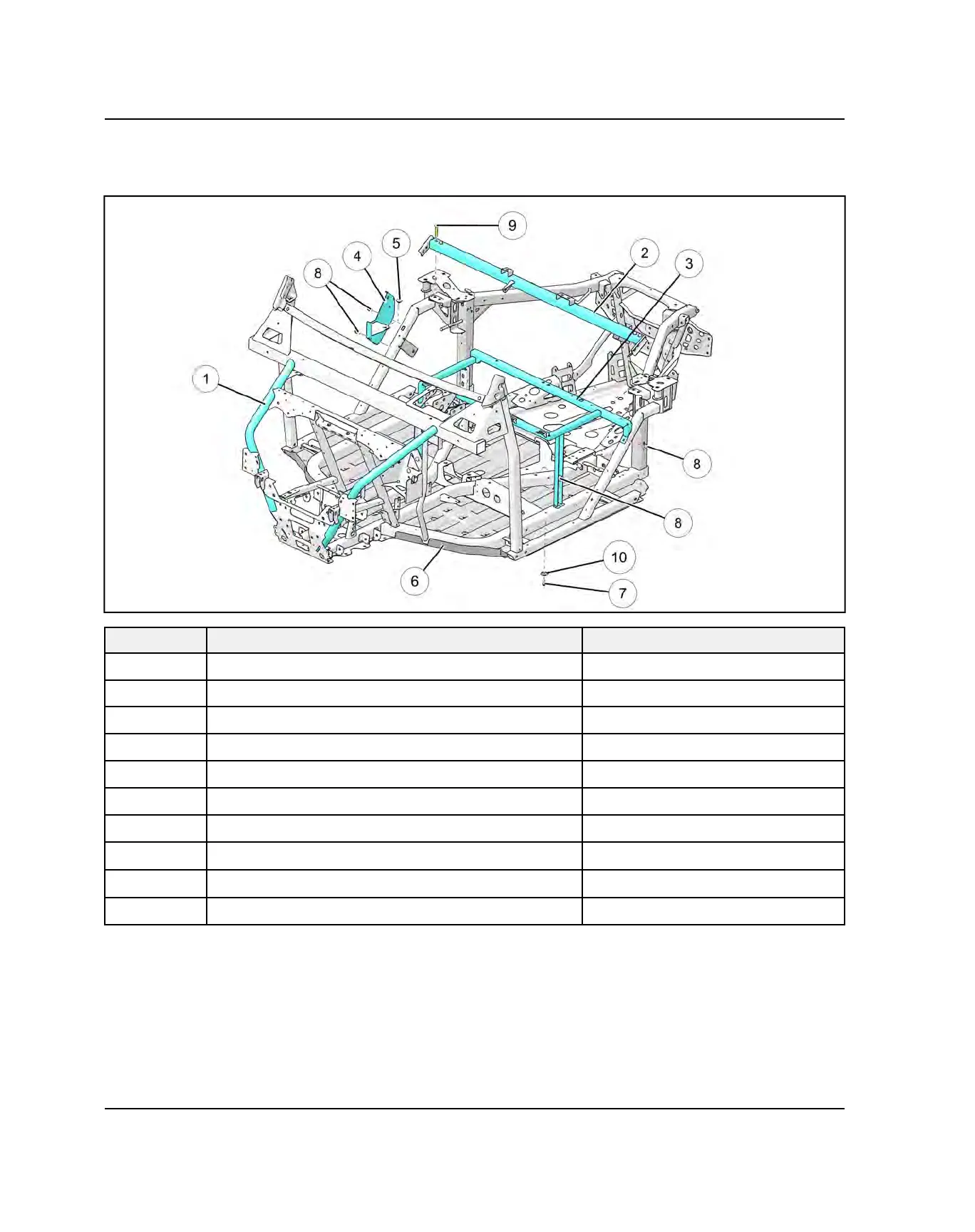

CHASSIS ASSEMBLY VIEW
ITEM DESCRIPTION
TORQUE
q
FRAME, MAIN
NA
w
WELD, CROSSBAR
NA
e
WELD-SEAT BASE, MAIN
NA
r
WELD-SEAT SUPPORT MOUNT, PASSENGER
NA
t
GROMMET, SEAT BASE
NA
y
PLATE, SKID
NA
u
SKID PLATE FASTENERS
6 ft-lbs (8 Nm)
i
SEAT BASE FASTENERS
10 ft-lbs (14 Nm)
o
CROSS BAR FASTENERS
14 ft-lbs (19 Nm)
a
WASHER, SKID PLATE
NA
BODY / FRAME
