20.Install the water pump cover and three retaining bolts
i
. Torque bolts in sequence to specification.
TORQUE
Water Pump Mounting Bolts:
7 ft-lbs (10 Nm)
21.Install two new water pump (O-rings) and lubricate
them with fresh engine oil.
22.Install water pump assembly into engine.

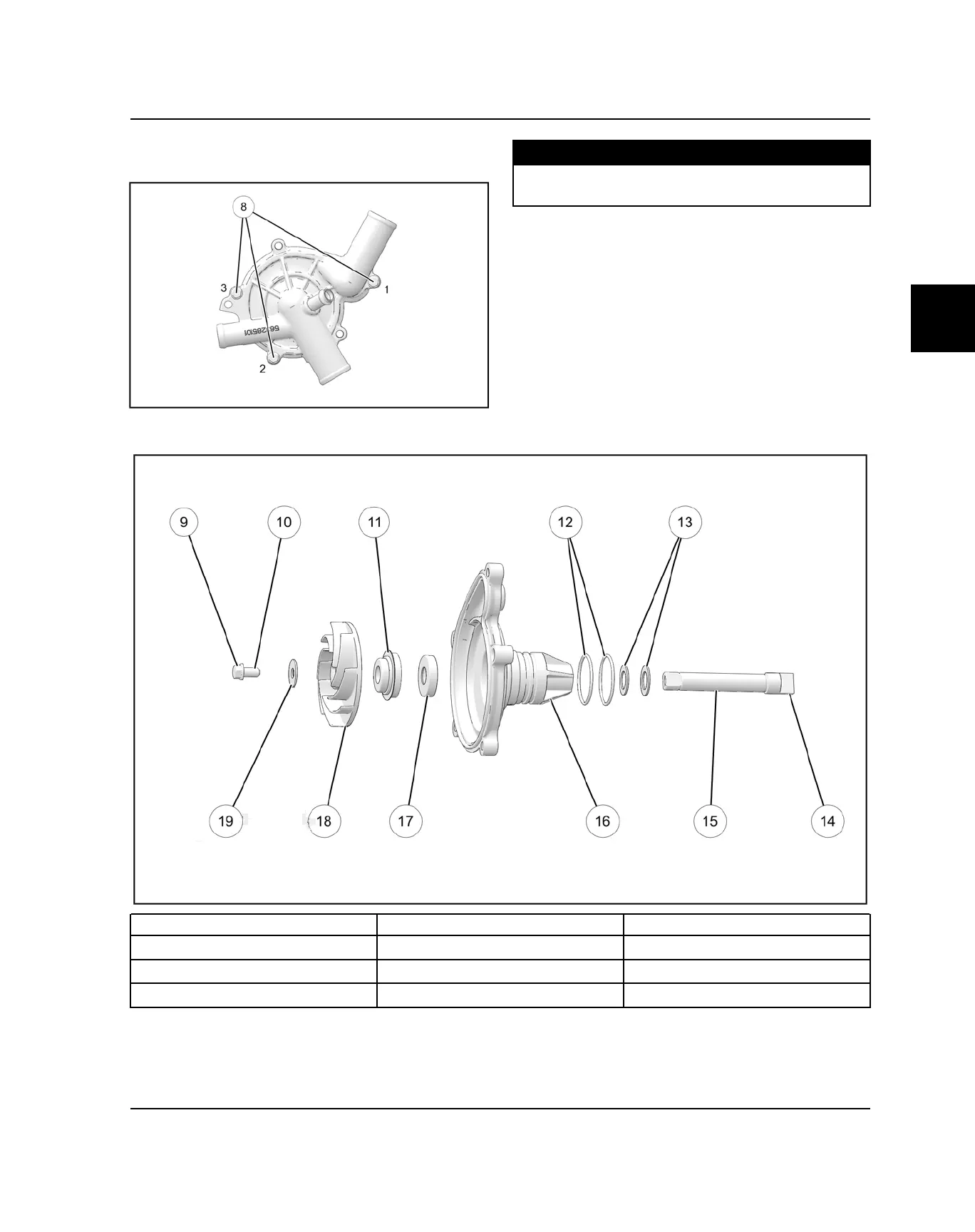

Water Pump Assembly View
o
Bolt
f
Washers
k
Oil Seal
a
Loctite 204
g
Drive Tab
l
Impeller
s
Mechanical Seal
h
Water Pump Shaft
1(
Washer
d
O-Rings
j
Water Pump Housing
ENGINE / COOLING / EXHAUST
