STEERING MAINTENANCE
STEERING SYSTEM INSPECTION

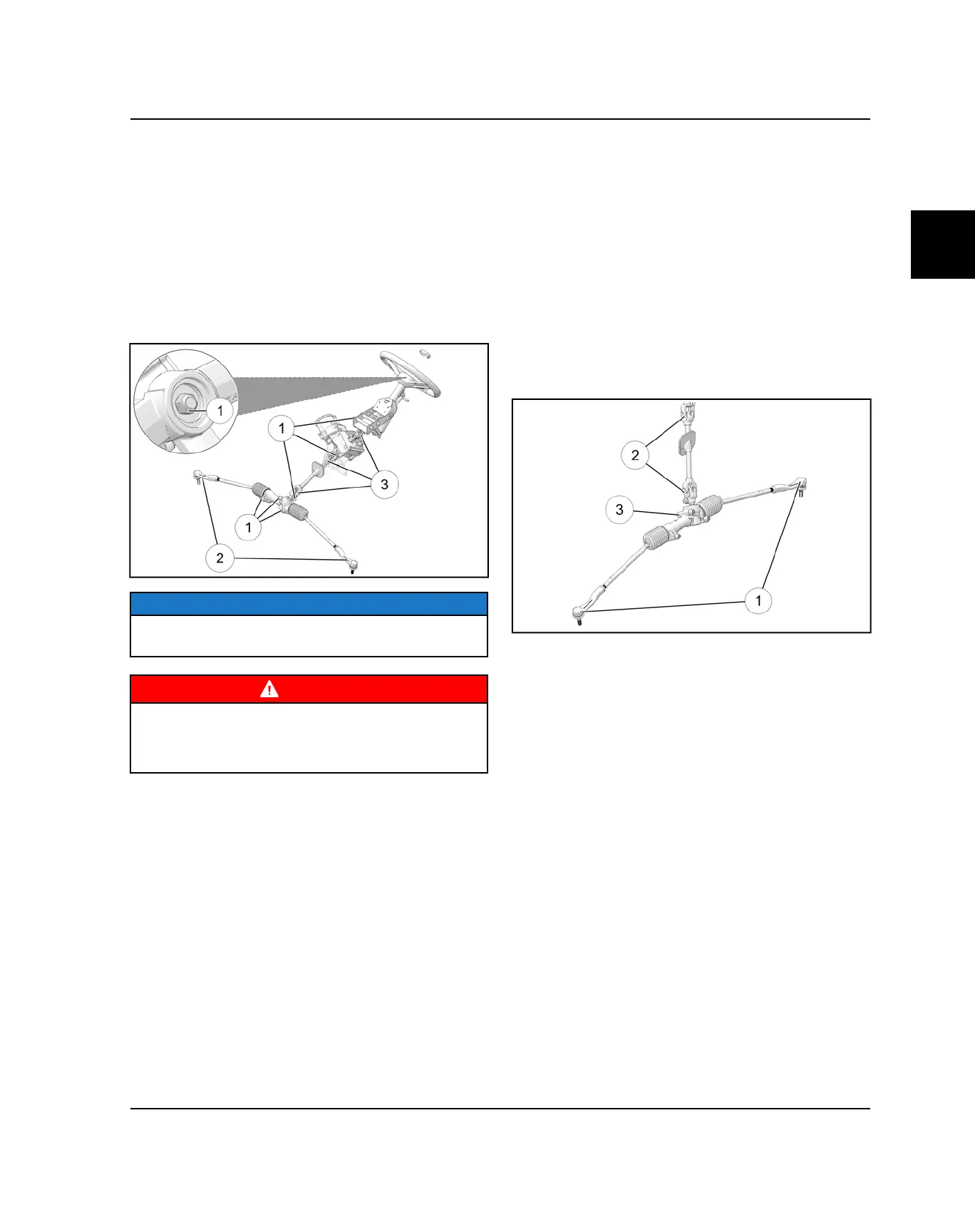

Steering system components should be checked
periodically for loose fasteners
q
, worn tie rod ends / tie
rod fasteners
w
, loose steering shaft U-joints
e
, worn A-
arm ball joints and general damage.
Replace any worn or damaged steering components.
Steering should move freely through the entire range of
travel without binding. Check routing of all cables, hoses,
and wiring to be sure the steering mechanism is not
restricted or limited.
NOTE
Check front end alignment whenever steering
components are replaced.
WARNING
Due to the critical nature of the procedures outlined in
this chapter, Polaris recommends steering component
repair and adjustment be performed by an authorized
Polaris MSD certified technician.
STEERING WHEEL FREE-PLAY
Check steering wheel for specified free-play and
operation.
1. Position the vehicle on level ground.
2. Lightly turn the steering wheel left and right.
3. There should be about 0.8-1.0″ (20-25 mm) of free-
play.
4. If there is excessive free-play or the steering feels
rough, inspect the following components.
• Tie Rod Ends
q
.
• Steering Shaft U-Joints
w
.
• Steering Gearbox
e
.
