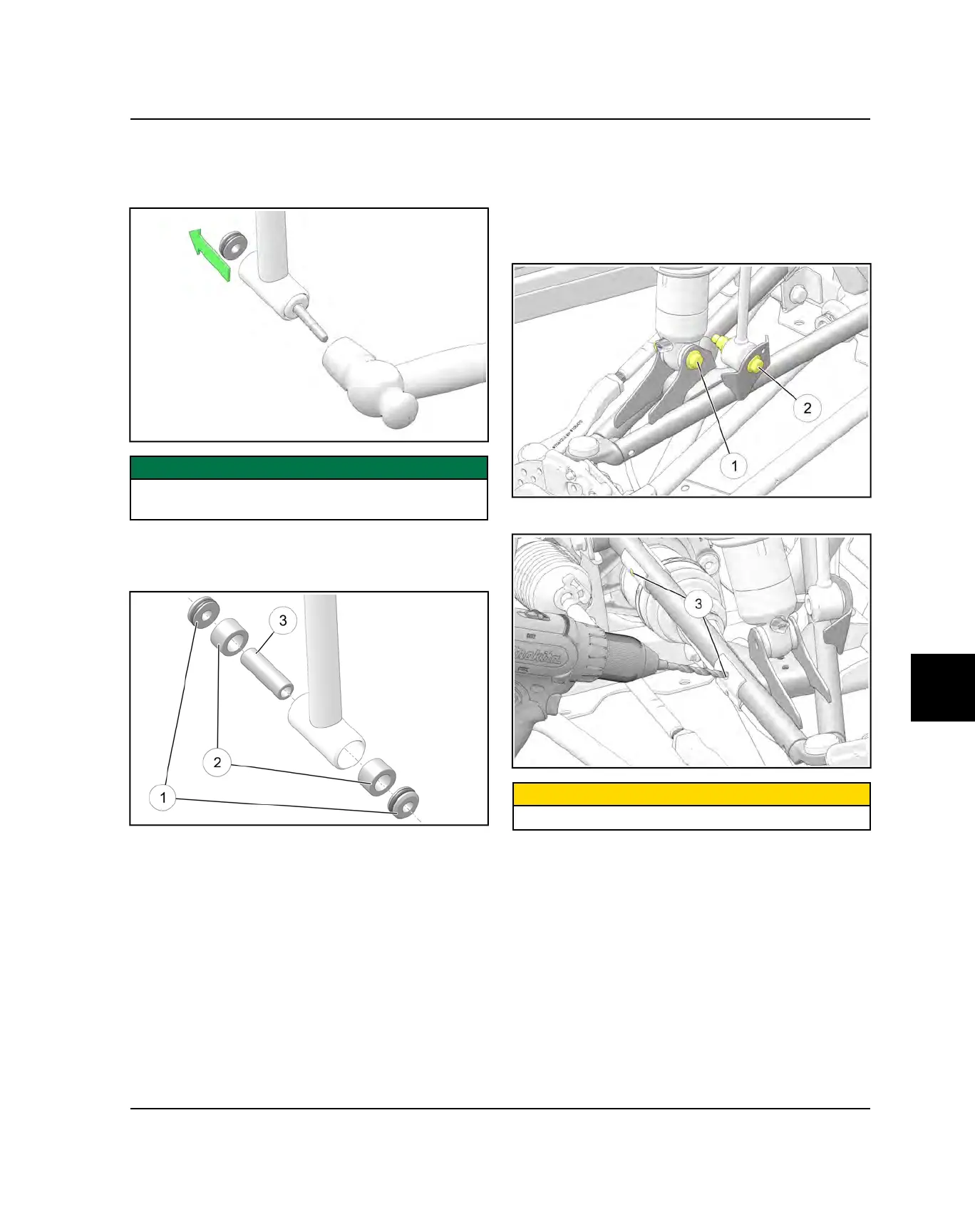

A-ARM BUSHING REPLACEMENT
1. Place a small punch in the opening of one Pivot Cap
and drive the opposite Pivot Cap out.
IMPORTANT
Be careful not to damage the A-Arm while using the
punch and hammer.
2. Install new Pivot Cap
q
, Bushings
w
, and Pivot Shaft
e
into new A-arm. A light press force may be
needed..
FRONT UPPER A-ARM REMOVAL /
INSTALLATION
1. Elevate and safely support the front of the vehicle and
remove the front wheel.
2. Remove lower shock fastener
q
and stabilizer bar
link
w
from upper A-arm.
3. Carefully drill out brake line retention grommets.
CAUTION
Do not damage brake line during this process
