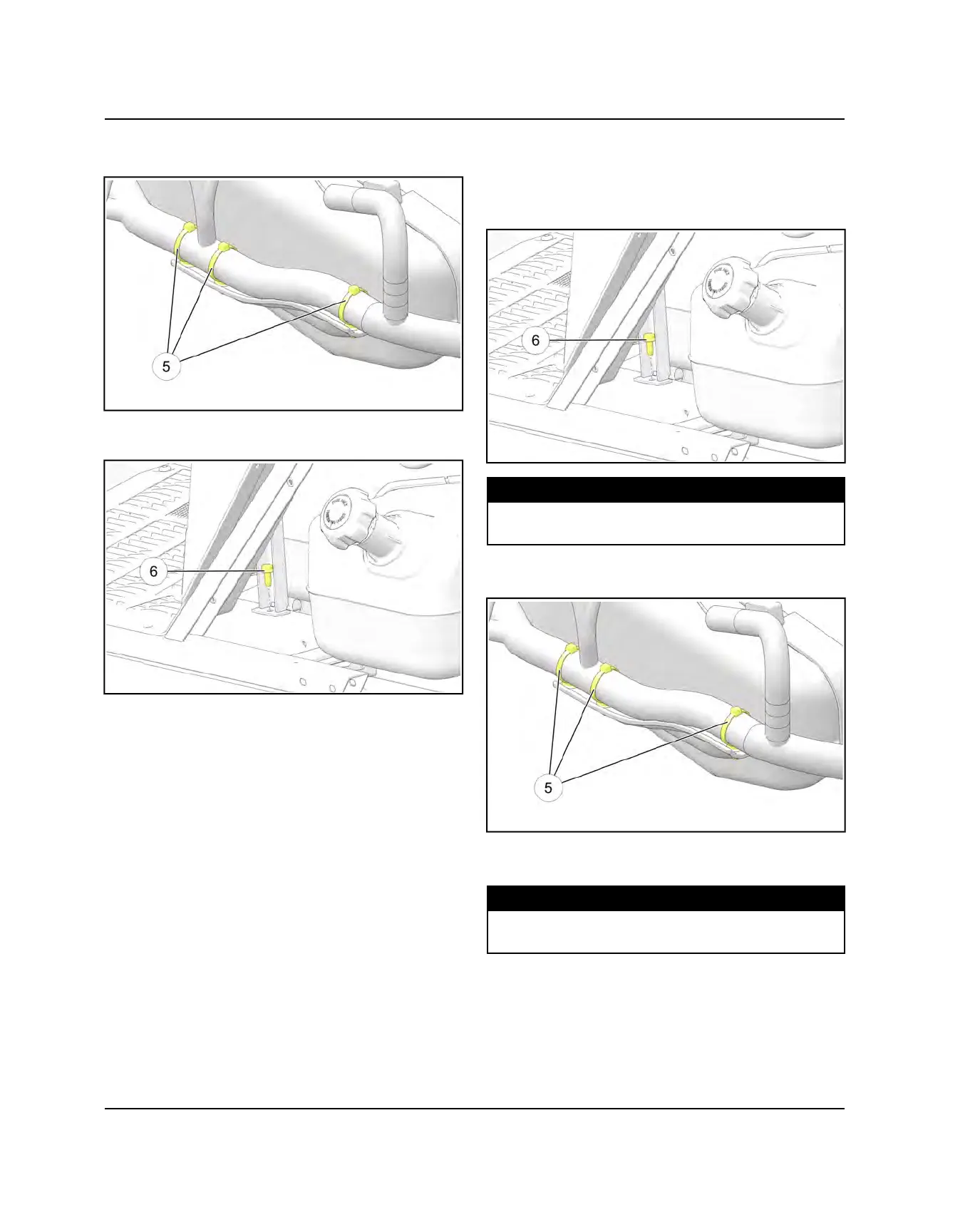

9. Remove the three plastic ties
t
retaining the main
wire harness to the fuel tank.
10.Remove seat base fastener
y
to allow room for fuel
tank to slide out of the frame.
11. Rotate and slide the fuel tank and remove the tank
from vehicle.
FUEL TANK INSTALLATION
1. Reinstall the fuel tank into the chassis taking care not
to damage brake lines or the wire harness.
2. Install seat base fastener
y
. Torque to specification.
TORQUE
Seat Base Fastener:
10 ft-lbs (14 Nm)
3. Install three plastic tie straps
t
to retain the wire
harness to the fuel tank.
4. Install fuel tank brackets and two fasteners retaining
fuel tank to chassis. Torque fasteners to specification.
TORQUE
Fuel Tank Bracket Fasteners:
6 ft-lbs (8 Nm)
5. Reconnect the fuel pump electrical harness.
6. Install the fuel line and vent line, and verify they are
secure.
7. Install driver-side body panel. Torque fasteners to
specification.
