IGNITION COIL TESTS
The ignition coil can be tested by using an ohm meter.

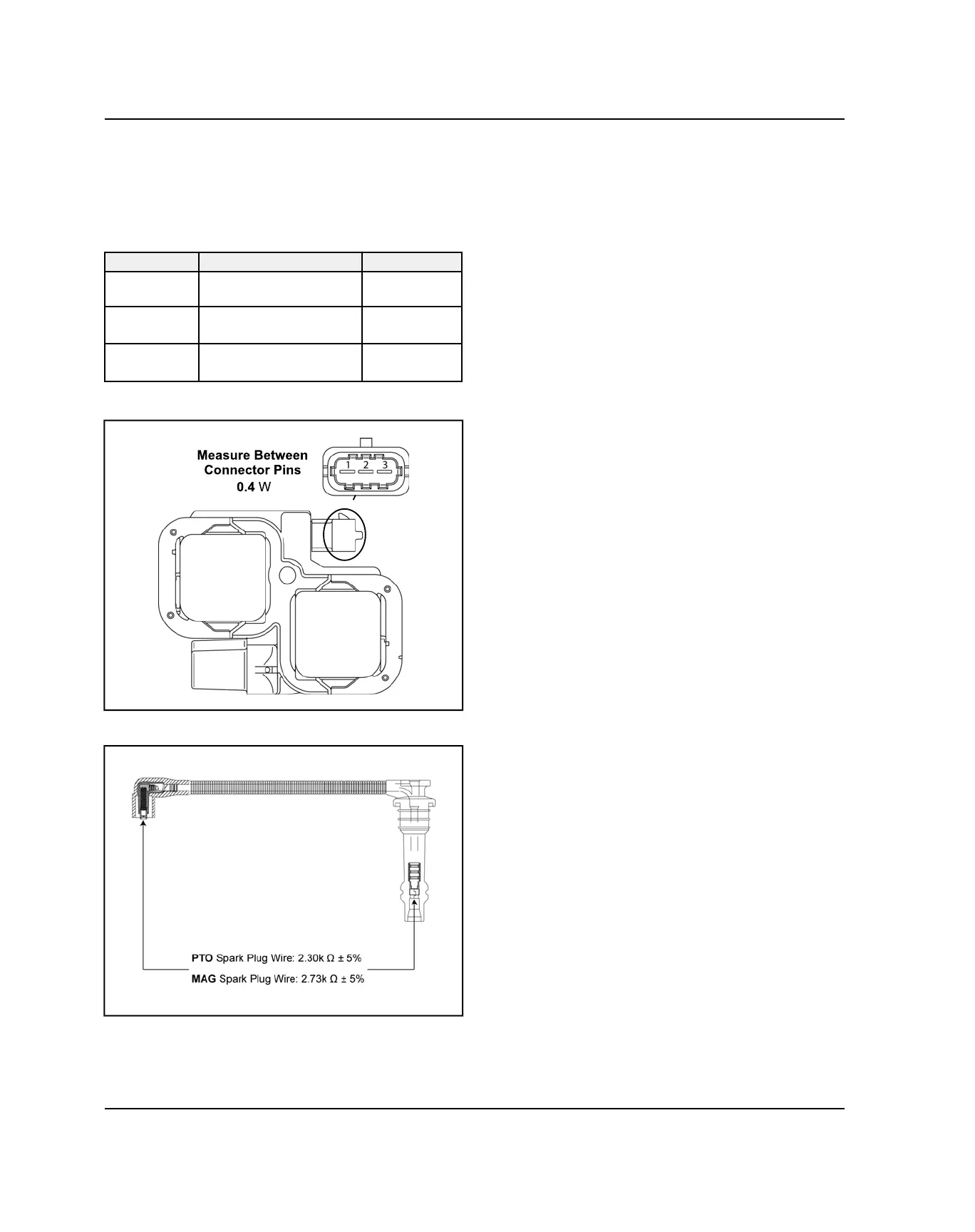

Use the following illustration and specification table to
test the ignition coil resistance.
Ignition Coil Resistance Readings
TEST PIN CONNECTION RESISTANCE
Primary
Between 1 & 2
Between 2 & 3
0.4 Ω
Secondary
(PTO)
Between High Tension
Lead Caps
2.30k Ω ± 5%
Secondary
(MAG)
Between High Tension
Lead Caps
2.73k Ω ± 5%
Primary Test
Secondary Test
ELECTRICAL
