9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

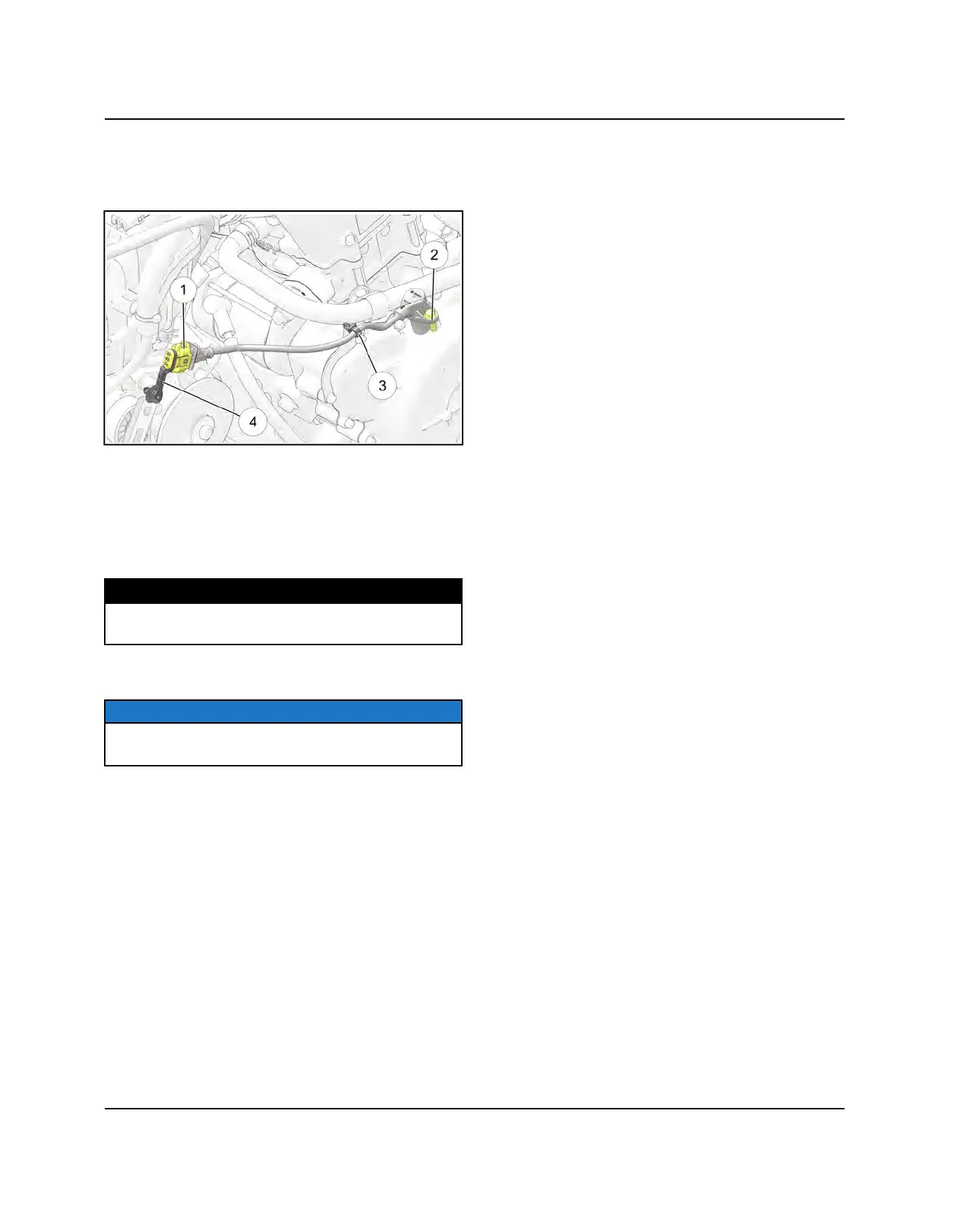

CPS REPLACEMENT
1. Lift the rear cargo box to raised position.
2. Disconnect the CPS harness connector
q
.
3. Remove CPS wire lead from wire clip
e
.
4. Remove CPS retaining fastener
w
and remove the
sensor from the stator cover.
5. Install new sensor using a light coating of oil on the
O-ring to aid installation.
6. Torque CPS retaining fastener to specification.
TORQUE
CPS Retaining Fastener:
9 ft-lbs (12 Nm)
7. Route CPS wire lead through wire clip
e
and
reconnect CPS harness connector
q
.
NOTE
Make sure CPS harness connector standoff
r
remains
properly secured.
