9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
ENGINE DISASSEMBLY / INSPECTION - LOWER END

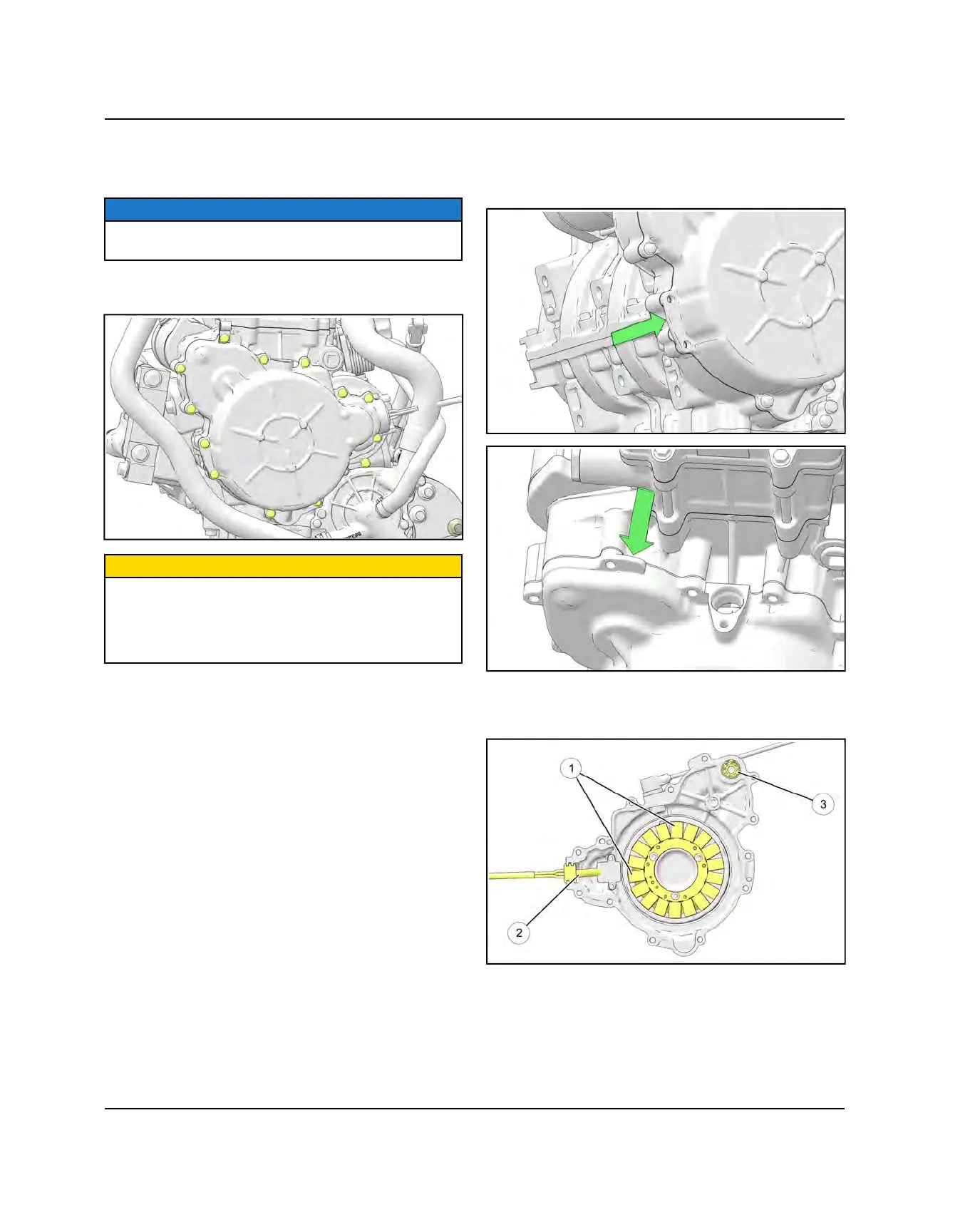

STATOR COVER REMOVAL / INSPECTION
NOTE
The stator cover can be removed with the engine
installed in the chassis.
1. Remove the thirteen screws retaining the stator
cover.
CAUTION
The flywheel contains powerful magnets. Use caution
when removing and installing the stator cover. DO NOT
place fingers between cover and crankcase at any time
during the removal / installation process or injury could
result.
2. Carefully pry the stator cover off the engine using the
two pry areas as shown below.
3. Inspect the condition of the stator windings
q
and
output wires
w
. If replacement is required, refer to the
Electrical chapter.
4. Inspect the ball bearing
e
that supports the starter
motor shaft.
ENGINE / COOLING / EXHAUST
