5.18
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
DRIVE CLUTCH SERVICE

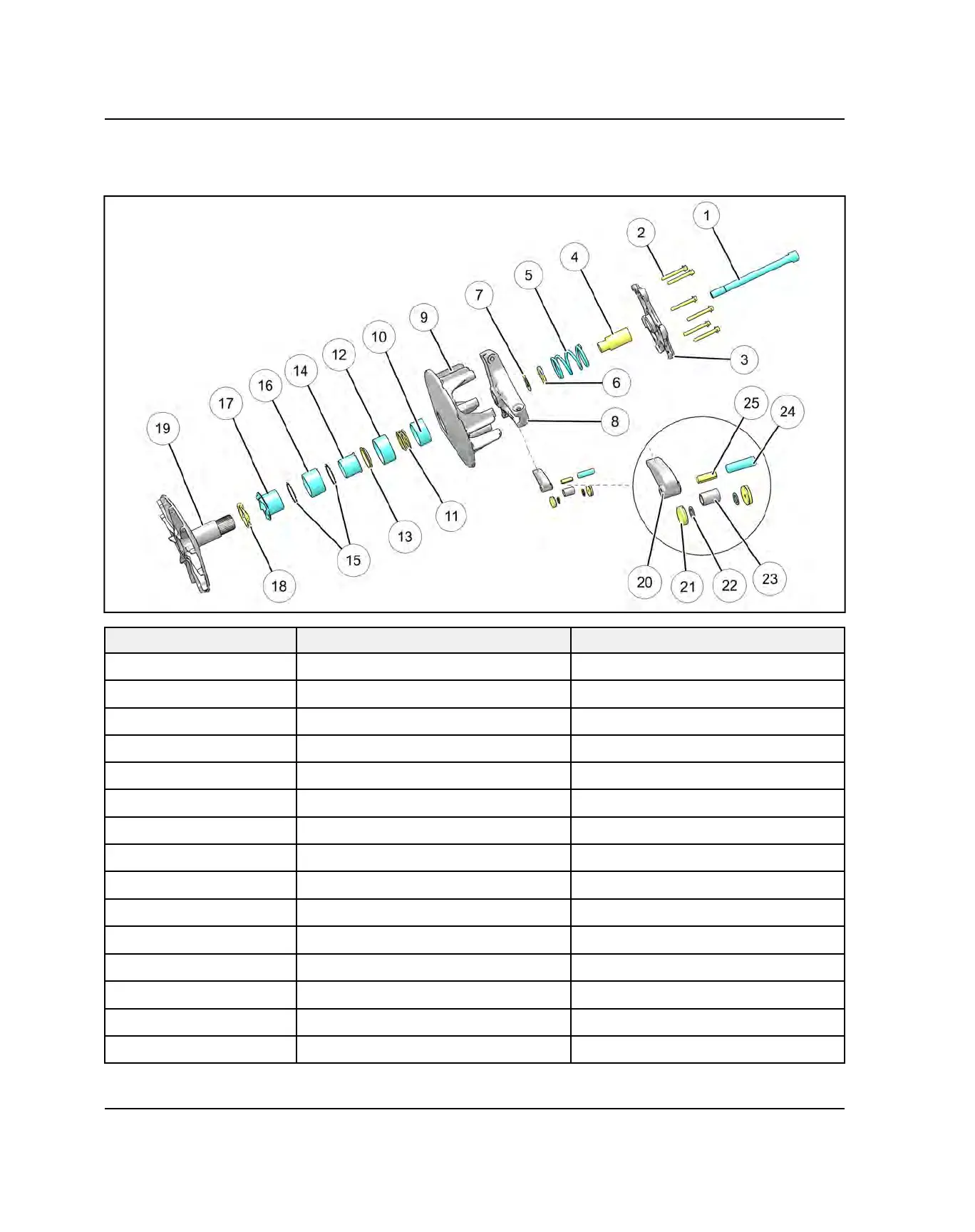

DRIVE CLUTCH ASSEMBLY VIEW
REF DESCRIPTION
TORQUE / NOTE
q
Clutch Bolt 96 ft-lbs (130 Nm)
w
Drive Clutch Cover Bolts 100 in-lbs (11 Nm)
e
Drive Clutch Cover
NA
r
Outer Clutch Post
NA
t
Spring
NA
y
Belleville Washer
Dome side facing outer post
u
Washer NA
i
Spider
NA
o
Sheave Assembly
NA
a
Bushing NA
s
EBS Spring One Way
d
Clutch Spacer
NA
f
Spacer Flange Orientation as shown
g
Bushing Sleeve
NA
h
Clutch Washers
NA
PVT SYSTEM
