HVAC SYSTEM SERVICE
COMPRESSOR DRIVE BELT REPLACEMENT
SERVICE VIDEO
A service video has been created
to help highlight this procedure.
To view the video, either:
• Scan the QR Code with a
mobile device
• From a computer, right click
HERE and open link in a new
window.
NOTE
The compressor drive belt is a single use belt as it
stretches onto the pulleys during installation. Do NOT
reuse a drive belt that has been removed. Always
replace with a NEW belt.

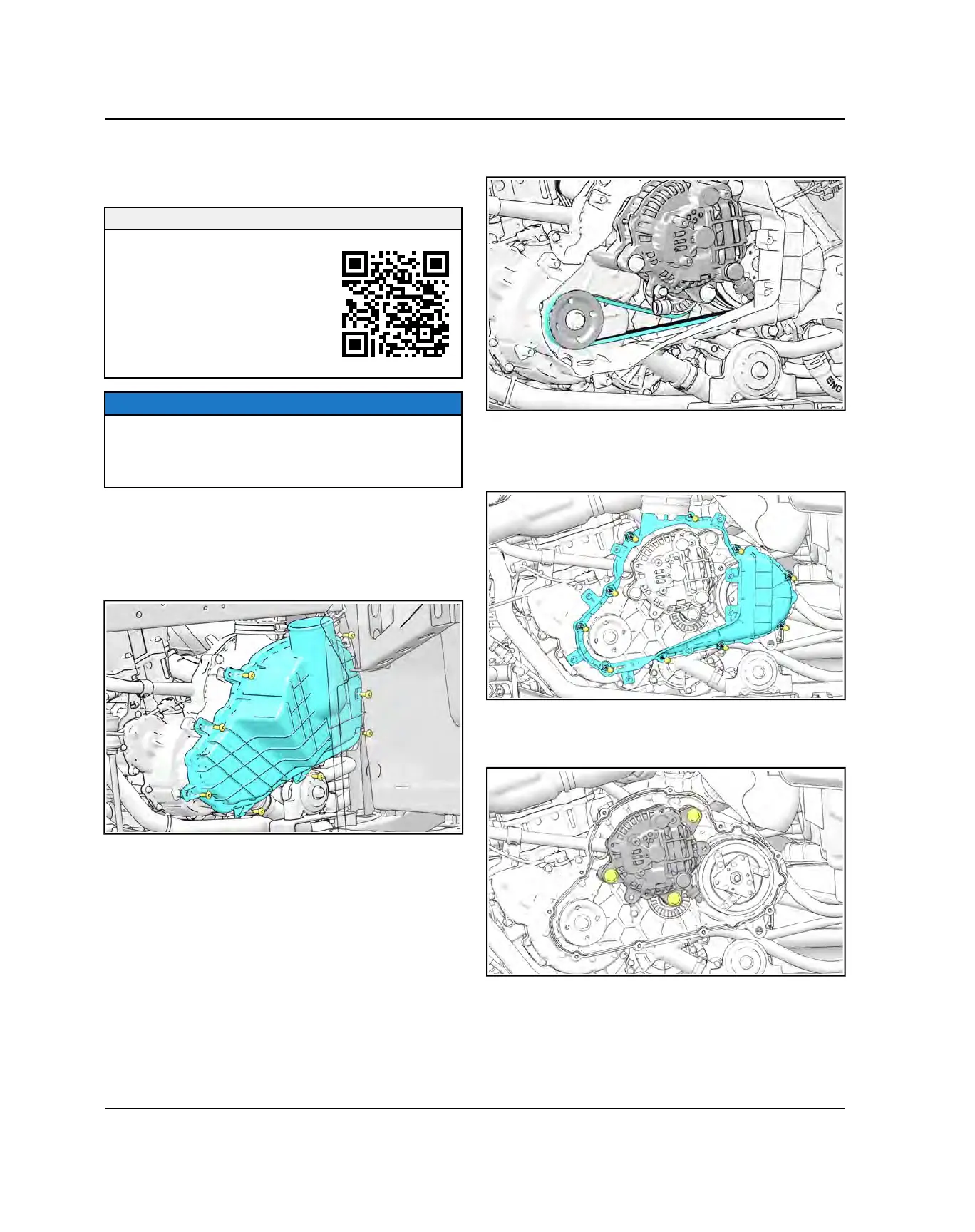

1. Position the vehicle on a level surface, place the
transmission in PARK and stop the engine.
2. Tilt the rear cargo box to the upright position.
3. Remove the fasteners holding the alternator cover to
the vehicle.
4. Cut the compressor drive belt to remove it from the
vehicle.
5. To aid with belt installation, remove the fasteners
holding the inner alternator cover to the engine.
Disconnect the air outlet hose and remove the cover
from the vehicle.
6. Loosen the three alternator fasteners enough to slide
the alternator outward with enough room for the
compressor drive belt to slide belt.
