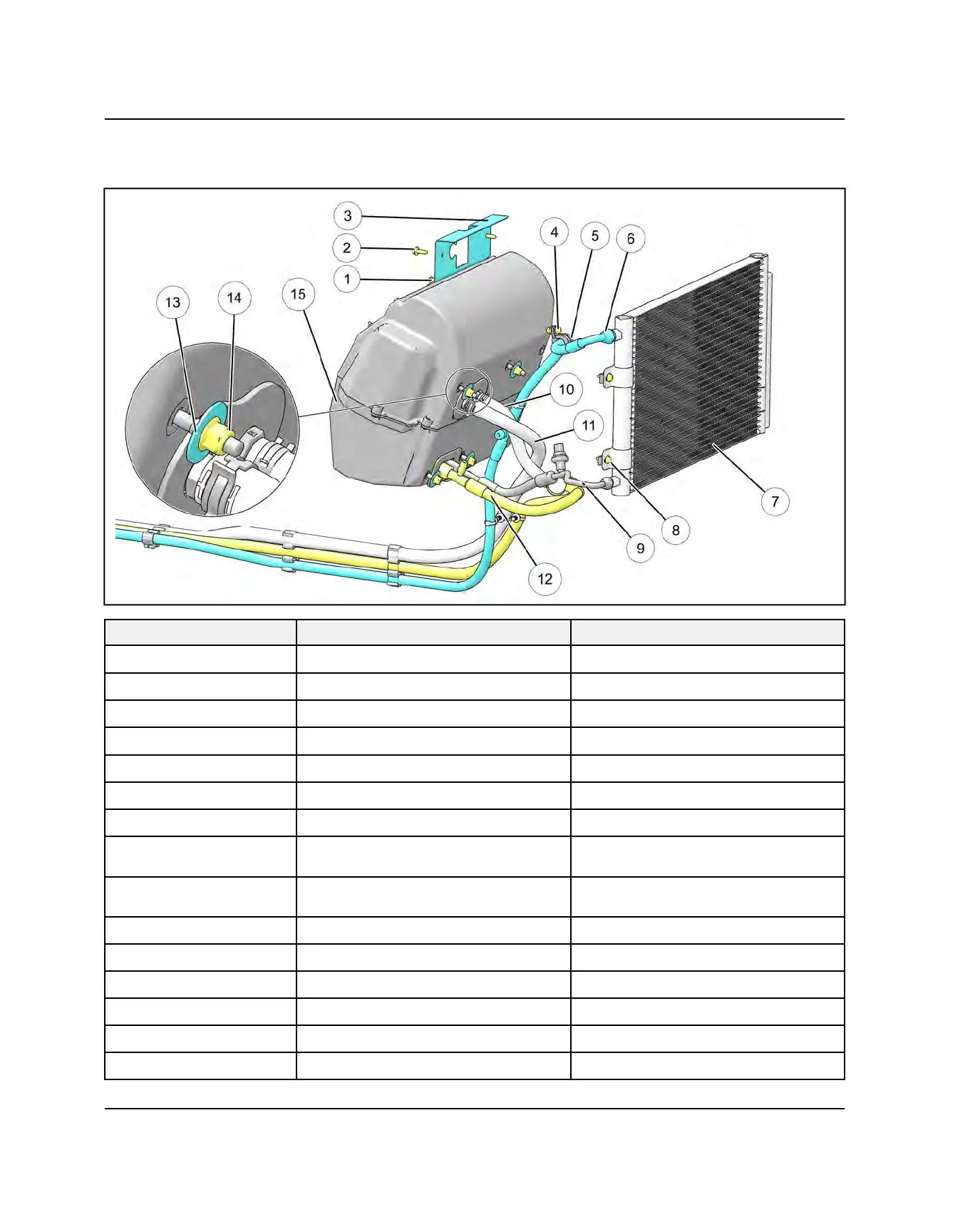

HVAC ASSEMBLY VIEW
HVAC AND HEATER LINES
REF
DESCRIPTION TORQUE
q
HVAC BRACKET MOUNTING NUT 6 ft-lbs (8 Nm)
w
HVAC MOUNTING FASTENER 6 ft-lbs (8 Nm)
e
HVAC MOUNTING BRACKET
NA
r
AC HOSE CLAMP FASTENER 6 ft lbs (8 Nm)
t
AC HOSE CLAMP
NA
y
AC PRESSURE HOSE 18 ft-lbs (24 Nm)
u
HVAC CONDENSER
NA
i
HVAC CONDENSER MOUNTING
FASTENER
35 in-lbs (4 Nm)
o
AC HOSE, CONDENSER TO
EVAPORATOR
12 ft-lbs (16 Nm)
a
HEATER RETURN HOSE
NA
s
HEATER SUPPLY HOSE
NA
d
AC SUCTION HOSE
NA
f
HVAC MOUNTING WASHER
NA
g
HVAC MOUNTING FASTENER 8 ft-lbs (11 Nm)
h
MAIN HVAC ASSEMBLY
NA
