REAR DRIVE SHAFT INSTALLATION

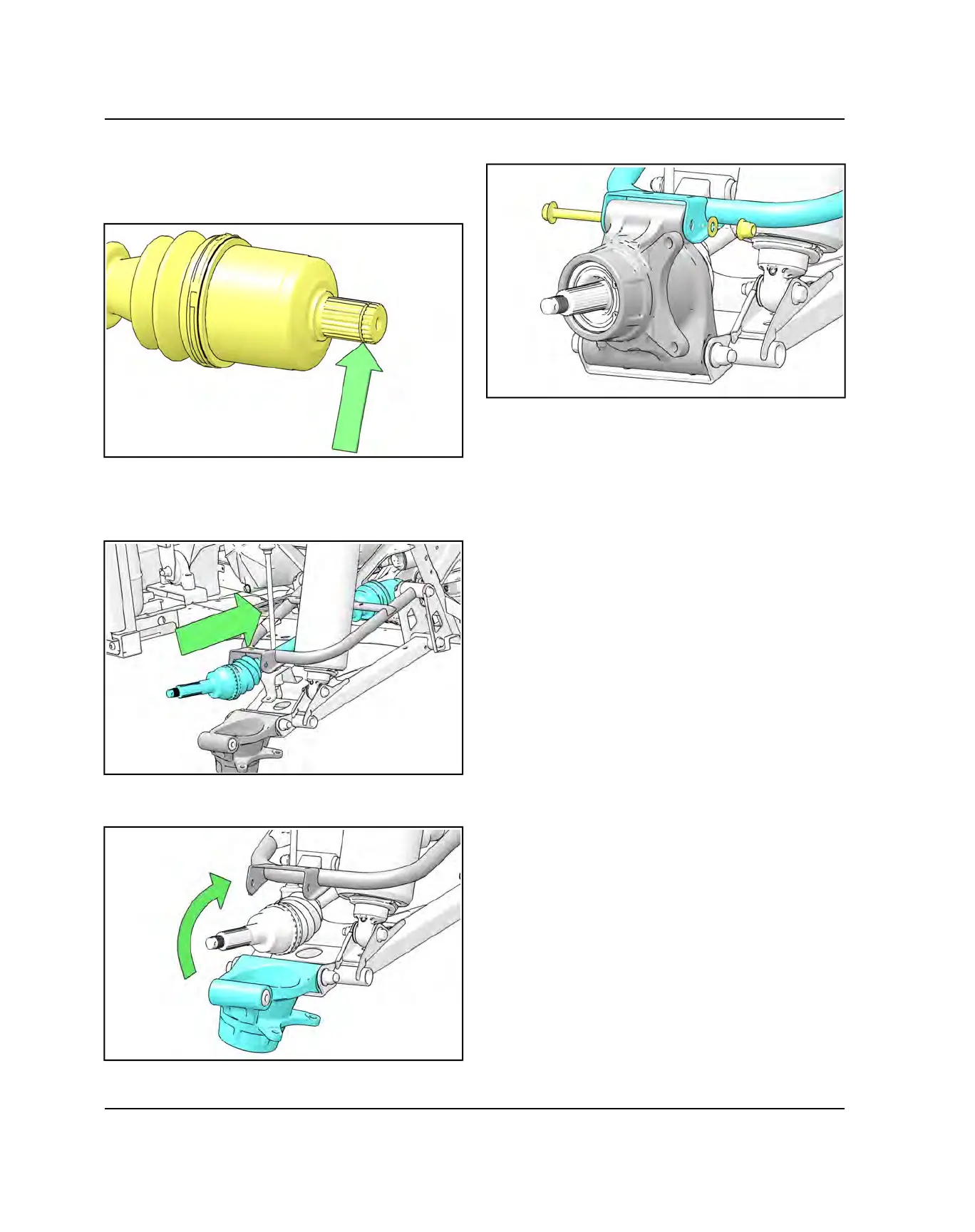

1. Install a new spring ring on the end of the drive shaft if
not replacing the drive shaft assembly. Apply an anti-
seize compound to the splines.
2. Align splines of the drive shaft with the transmission
and reinstall the drive shaft. Use a rubber mallet to
tap on the outboard end of the drive shaft if
necessary.
3. Rotate the bearing carrier onto the drive axle and
rotate into upper A-arm.
4. Install the upper bearing carrier fastener.
5. Refer toRear Bearing Carrier Installation, page 7.42
procedure to reassemble the vehicle.
