5.6
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

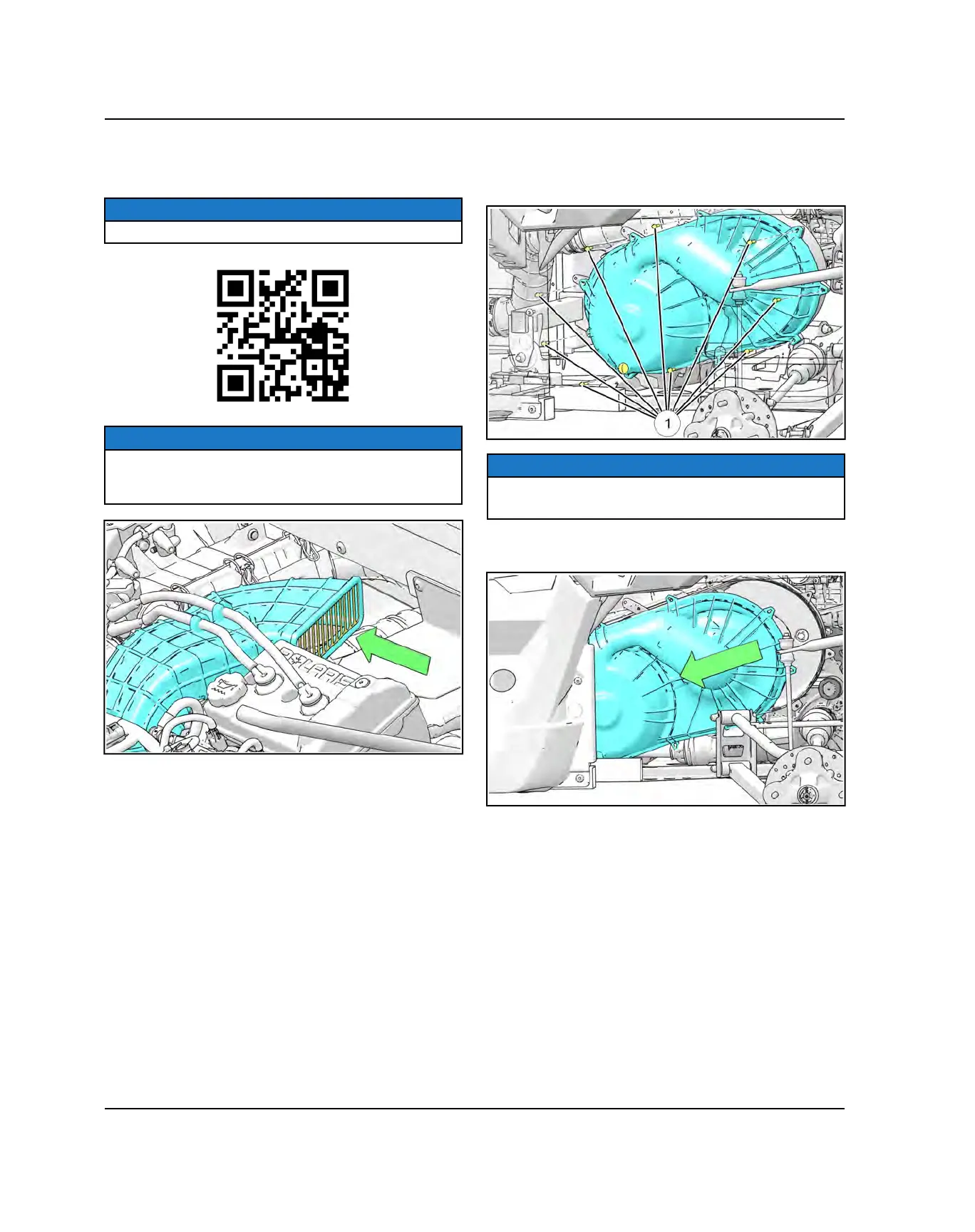

DRIVE BELT SERVICE
BELT REMOVAL
NOTE
A video has been created to aid in drive belt service.
NOTE
Inspect the entire clutch outlet duct (including the outlet
duct screen) when replacing a drive belt. Remove any
debris found in the outlet duct or outlet duct screen.
1. Remove the nine fasteners
q
that retain the outer
clutch cover.
NOTE
Removal of left rear wheel or left rear shock is NOT
necessary for belt replacement.
2. Pull the clutch cover forward and slide towards the
front of the vehicle as shown.
PVT SYSTEM
