11.8
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

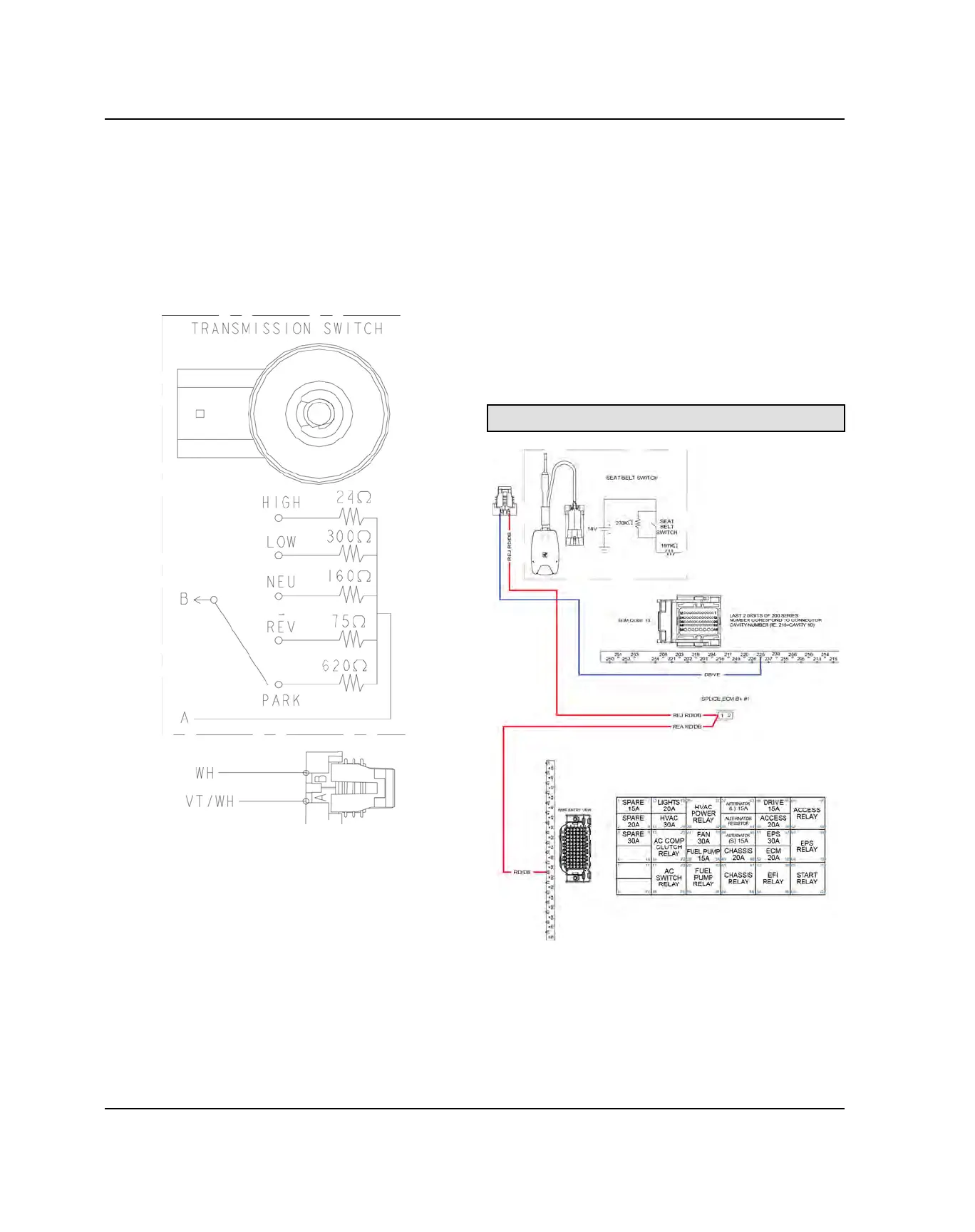

TRANSMISSION (GEAR POSITION) SWITCH
The transmission switch is located on the right side of the
transmission. The switch can be accessed through the
right rear wheel well opening.
1. Disconnect the transmission switch harness by lifting
the connector lock and pulling on the 2-pin connector.
Do not pull on the wiring.
2. Test transmission switch for continuity in each gear
position and compare to the specifications below.
SEAT BELT SWITCH
The vehicle is equipped with a seat belt interlock switch
to prevent the vehicle from exceeding 15 MPH (24 KPH)
unless the driver seat belt is secured in the seat belt lock.
The switch is powered by the EFI Relay, sending a signal
to the ECU.
1. Disconnect the seat belt switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the wiring.
2. Test for continuity between the EFI Relay and the
switch.
3. Test for continuity between the switch and the ECU
pin.
4. Test for continuity across the switch.
Seat Belt Switch: Normally Open
ELECTRICAL
