9
9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.
9.5
BRAKE SYSTEM SERVICE

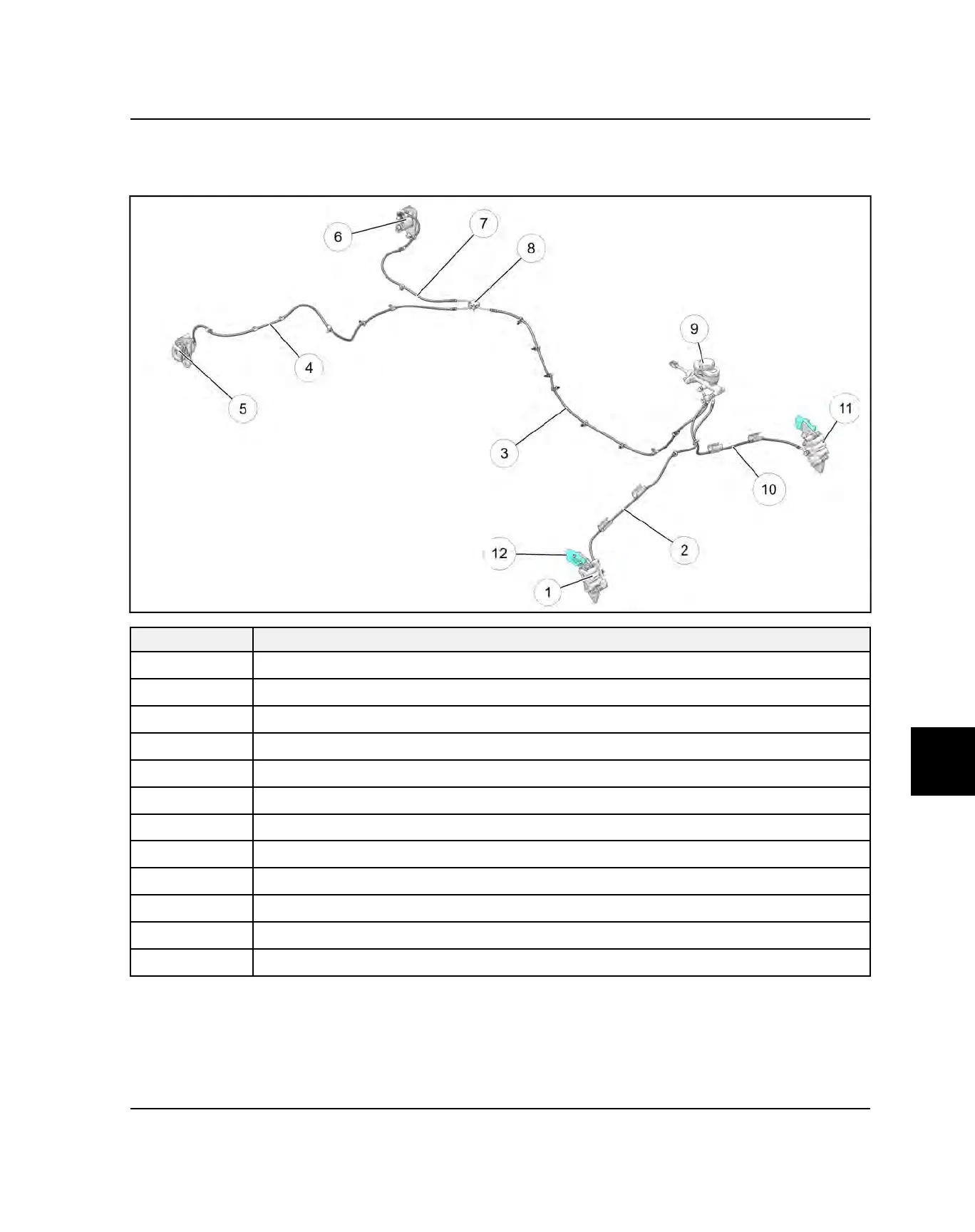

BRAKE SYSTEM ASSEMBLY VIEW
REF
DESCRIPTION
q
CALIPER, BRAKE - FRONT RH
w
LINE, BRAKE - FRONT RH
e
LINE, BRAKE - REAR MIDDLE
r
LINE, BRAKE - REAR RH
t
CALIPER, BRAKE - REAR RH
y
CALIPER, BRAKE - REAR LH
u
LINE, BRAKE - REAR LH
i
FITTING, CROSS
o
CYLINDER, BRAKE MASTER
a
LINE, BRAKE - FRONT LH
s
CALIPER, BRAKE LH
d
SCRAPER
BRAKE SYSTEM
