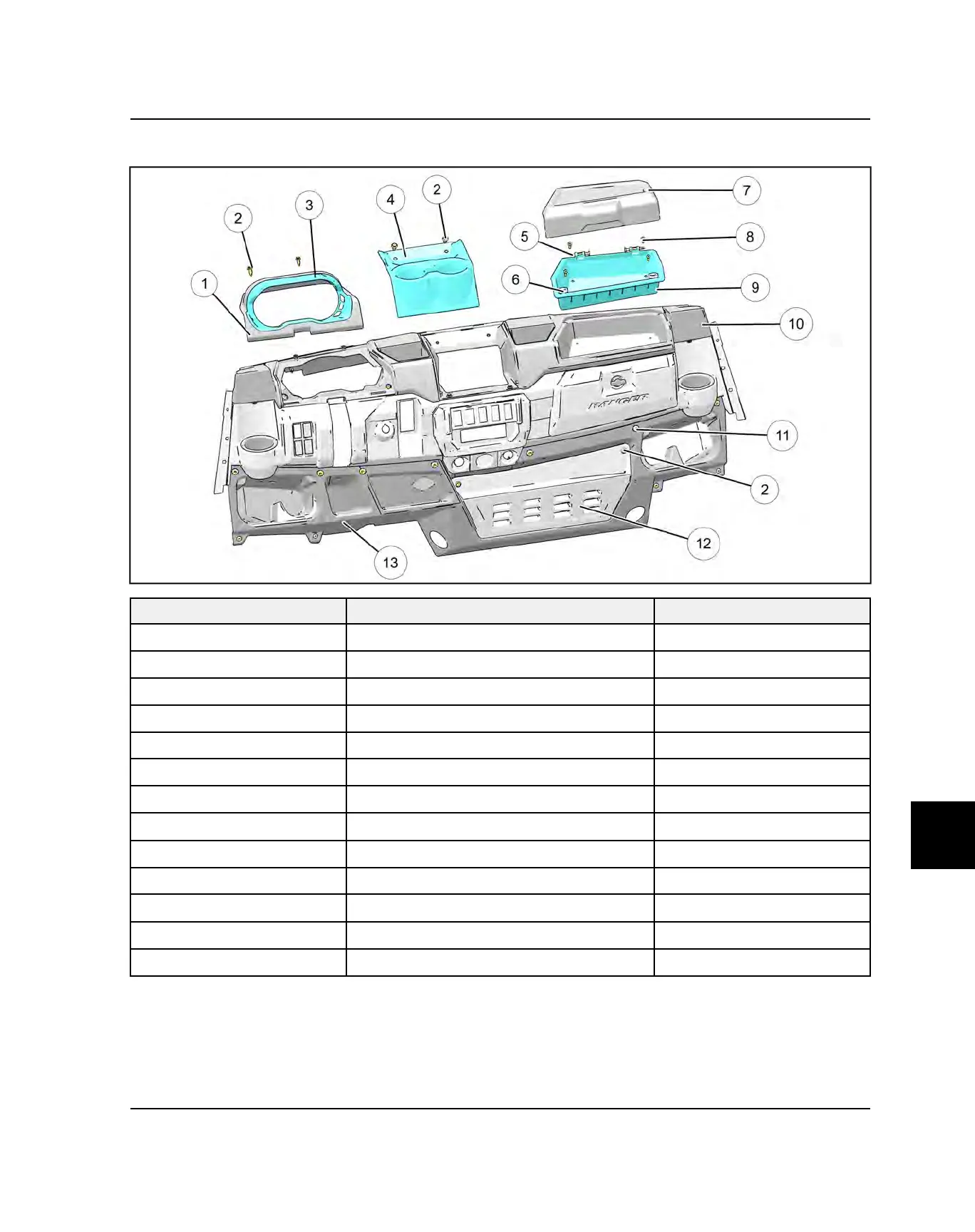

DASH PANEL / GLOVE BOX ASSEMBLY VIEW
REF
DESCRIPTION TORQUE
q
DASH GAUGE, HOOD
NA
w
TUFLOK RIVET
NA
e
DASH GAUGE, BEZEL
NA
r
DASH, CENTER TRAY
NA
t
GLOVEBOX PIN-HINGE
NA
y
RUBBER GROMMET
NA
u
COVER, UPPER GLOVEBOX
NA
i
UPPER GLOVEBOX FASTENER 10 in-lbs (1 Nm)
o
UPPER GLOVEBOX BIN
NA
a
DASH-UPPER
NA
s
DASH, STORAGE FASTENER 42 in-lbs (5 Nm)
d
LOWER STORAGE BIN
NA
f
DASH, LOWER STORAGE
NA
