9928487 R01 - 2018 RANGER XP 1000 Service Manual
© Copyright Polaris Industries Inc.

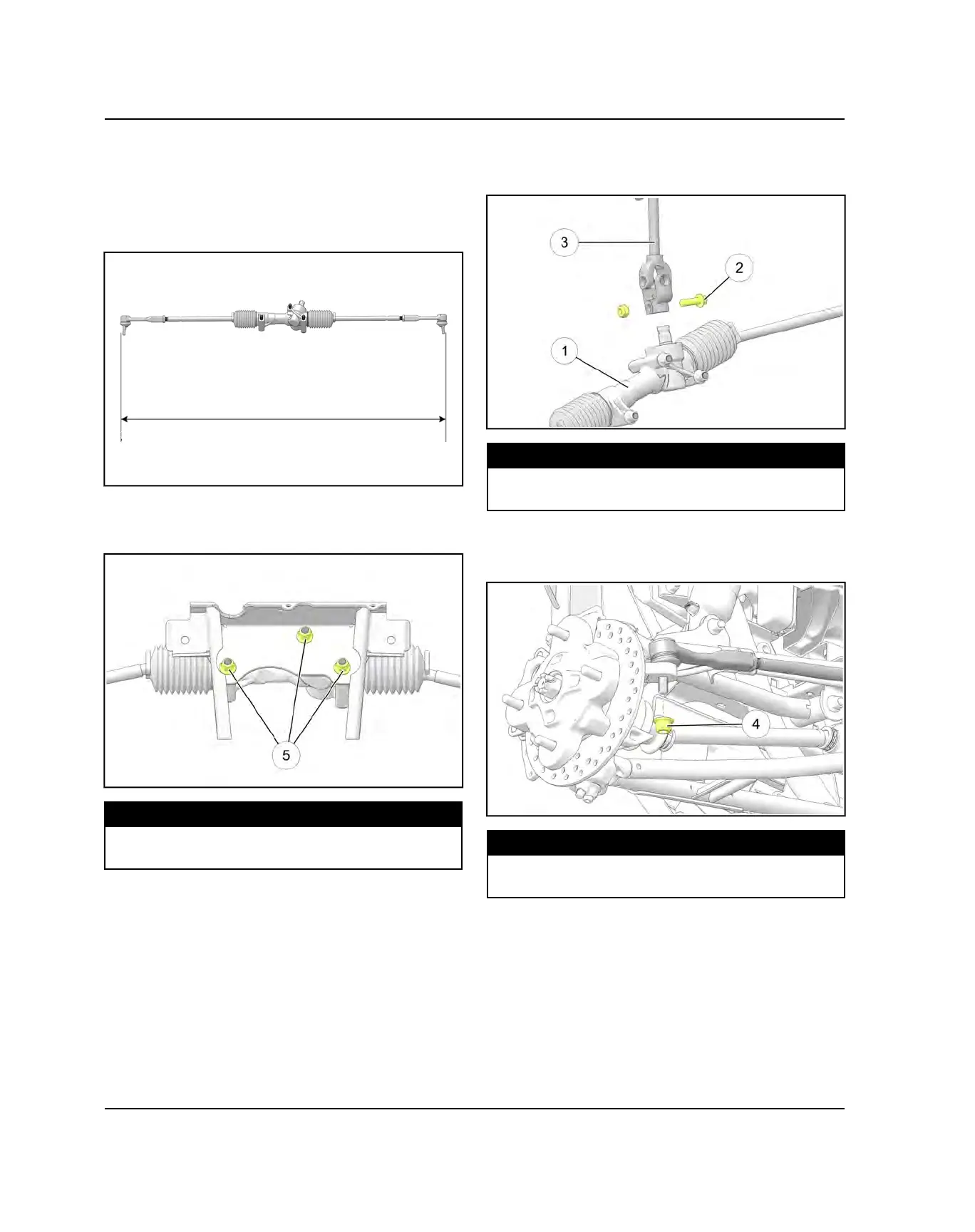

STEERING RACK INSTALLATION
1. Lay the old and new steering racks next to each other
on a clean surface. Measure the old steering rack
length from tie rod end to tie rod end. Turn the tie rod
ends in or out to adjust the new steering rack to this
measurement.
2. Install the new steering rack into the vehicle. Install
three nuts
t
retaining the steering rack to the frame.
Torque to specification.
TORQUE
Steering Rack Mounting Nuts:
40 ft-lbs (54 Nm)
3. Install the steering shaft
e
to the steering rack
assembly
q
. Install the pinch bolt
w
and nut. Torque
to specification
TORQUE
Lower Steering Shaft to Rack Pinch Bolt:
48 ft-lbs (65 Nm)
4. Install the tie rod ends into the steering knuckle as
shown. Install the Tie Rod Retaining Nut
r
and
torque to specification.
TORQUE
Tie Rod Retaining Nut:
30 ft-lbs (41 Nm) + 90°
5. Perform Wheel Toe Adjustment, page 2.55.
STEERING / SUSPENSION
