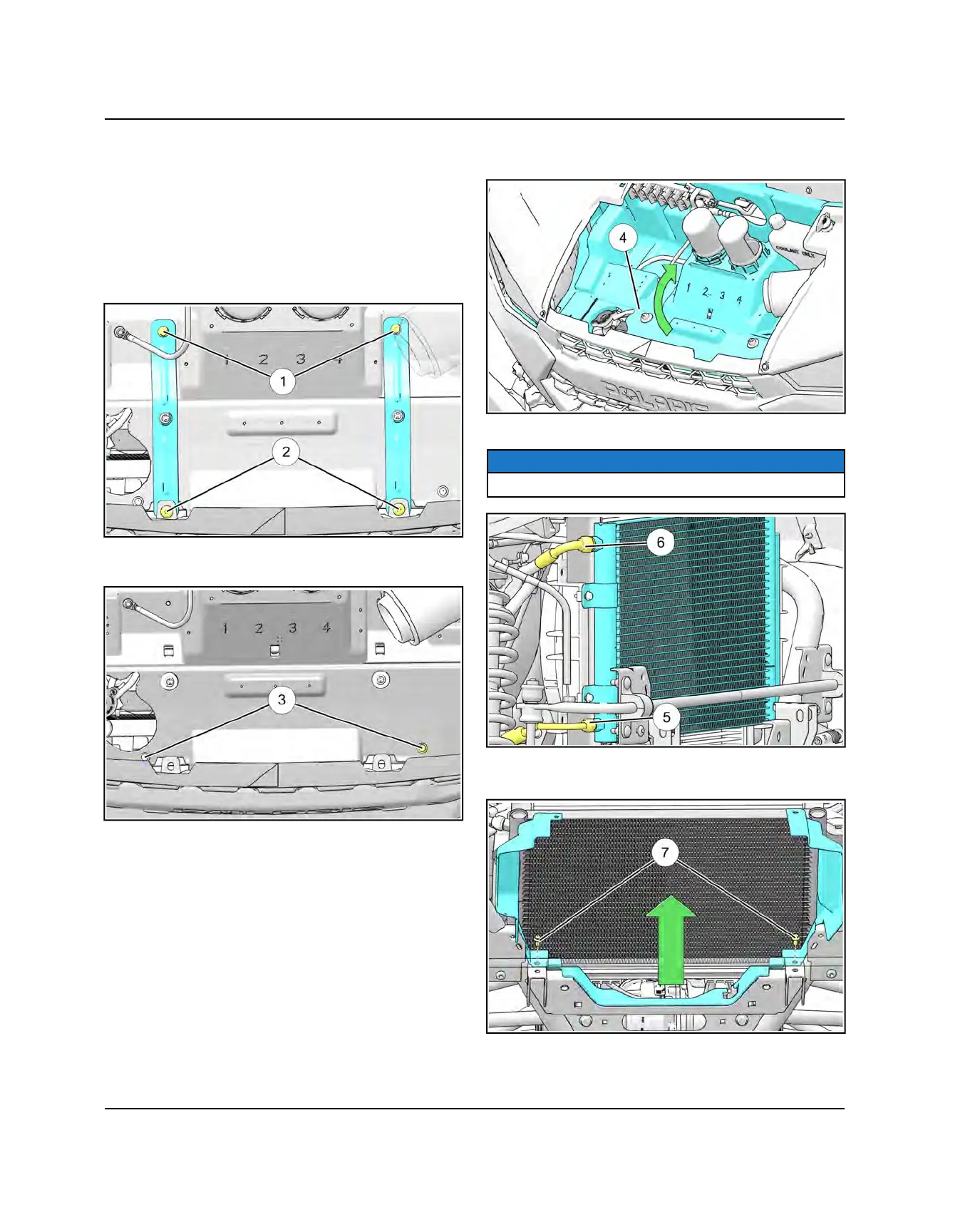

CONDENSER REPLACEMENT
CONDENSER REMOVAL
1. Position the vehicle on a level surface, place the
transmission in PARK and stop the engine.
2. Remove the front hood panel by turn the 1/4 turn
fasteners.
3. Remove the two fasteners
q
and two fasteners
w
.
Remove the supporting brackets.
4. Remove the two push rivets
e
retaining the
condenser cover.
5. Tilt the condenser cover upwards on the folding
crease
r
to gain access to the condenser.
6. Remove both AC lines
t
and
y
.
NOTE
Front body panels removed for clarity.
7. Remove the two push rivets
u
retaining the shroud
and lift the shroud straight up to remove.
