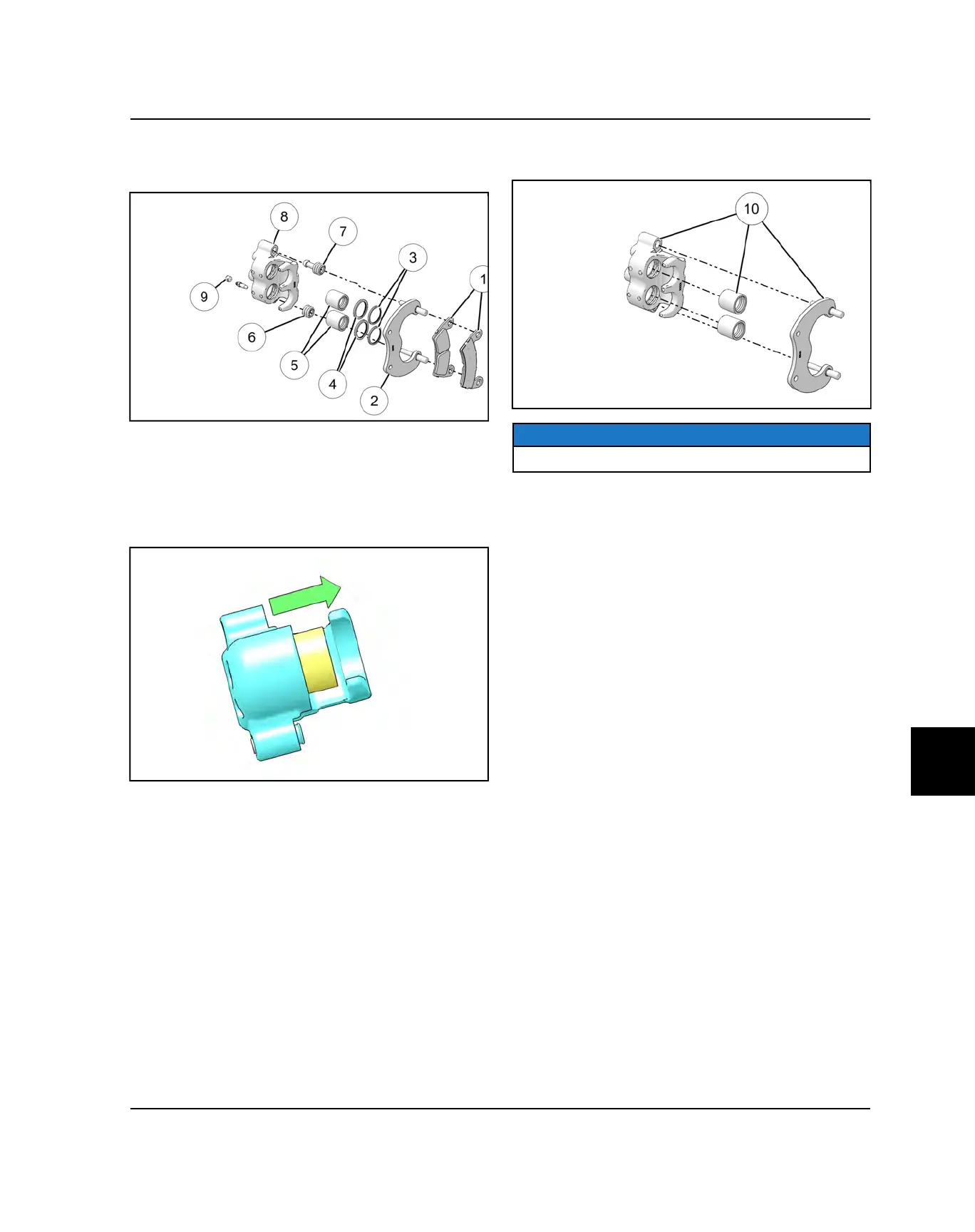

REAR CALIPER DISASSEMBLY
1. Remove brake pad adjustment set screw
o
.
2. Push upper pad retainer pin inward and slip brake
pads
q
past the edge and remove from the caliper.
3. Remove mount bracket
w
and dust boots
y
&
u
.
4. Using a hammer and a small punch, remove the
piston
t
from the caliper body
i
. Remove the
square O-rings
r
and
e
from the caliper body
i
.
5. Clean the caliper body, piston, and retaining bracket
a
with brake cleaner or alcohol.
NOTE
Be sure to clean caliper body seal grooves.
