PVT DUCT REMOVAL / INSTALL
OUTLET DUCT REMOVAL / INSTALLATION

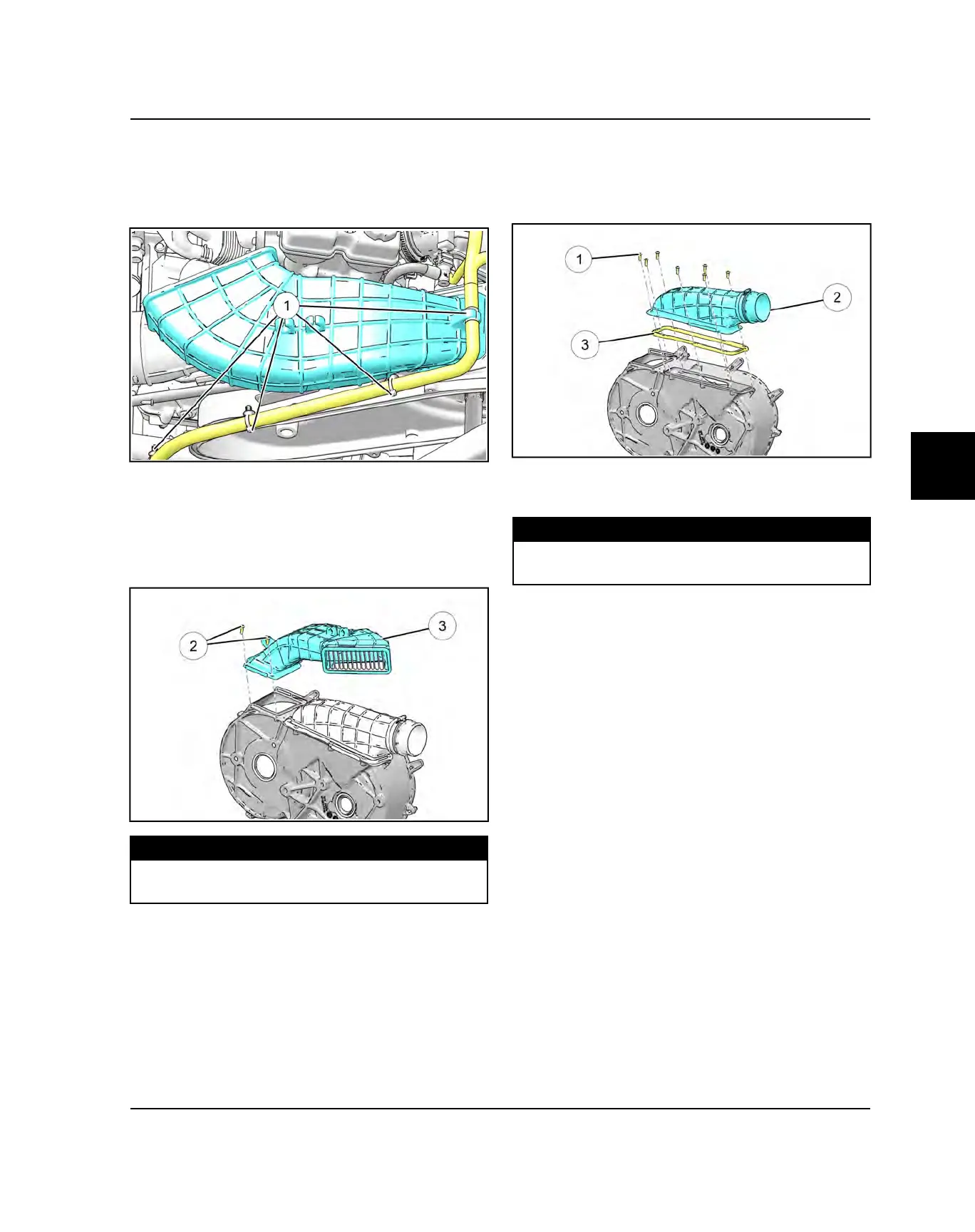

1. Disconnect the electrical harness from the clutch
cover at points shown below
q
.
2. Remove fasteners
w
and pull outlet duct
e
upwards
to remove from clutch cover.
3. Inspect bottom of the duct for damage and replace if
necessary.
4. Reinstall duct
e
and fasteners
w
. Torque to
specification.
TORQUE
PVT Outlet Duct Fasteners
54 in-lbs (6 Nm)
INLET DUCT REMOVAL / INSTALL
1. Remove the Inlet Duct fasteners
q
.
2. Remove the Inlet Duct
w
and the duct seal
e
.
Inspect for damage and replace if necessary.
3. Reinstall the duct seal
e
and duct assembly
w
.
4. Install fasteners
q
and torque to specification.
TORQUE
PVT Inlet Duct Fasteners
54 in-lbs (6 Nm)
